TIS Motorsports · Full-Face · Floating Cap
TIS 507
Luxury-bred and built to stand out. A TIS Motorsports wheel with a full-face multi-spoke profile and chrome-accented floating center-cap — offered in gloss black and gloss silver to complement any build.
Choose Your Finish
Two finishes, one refined profile. Switch between them to see the full angle gallery, dedicated video, sizing, and complete spec sheet for each.

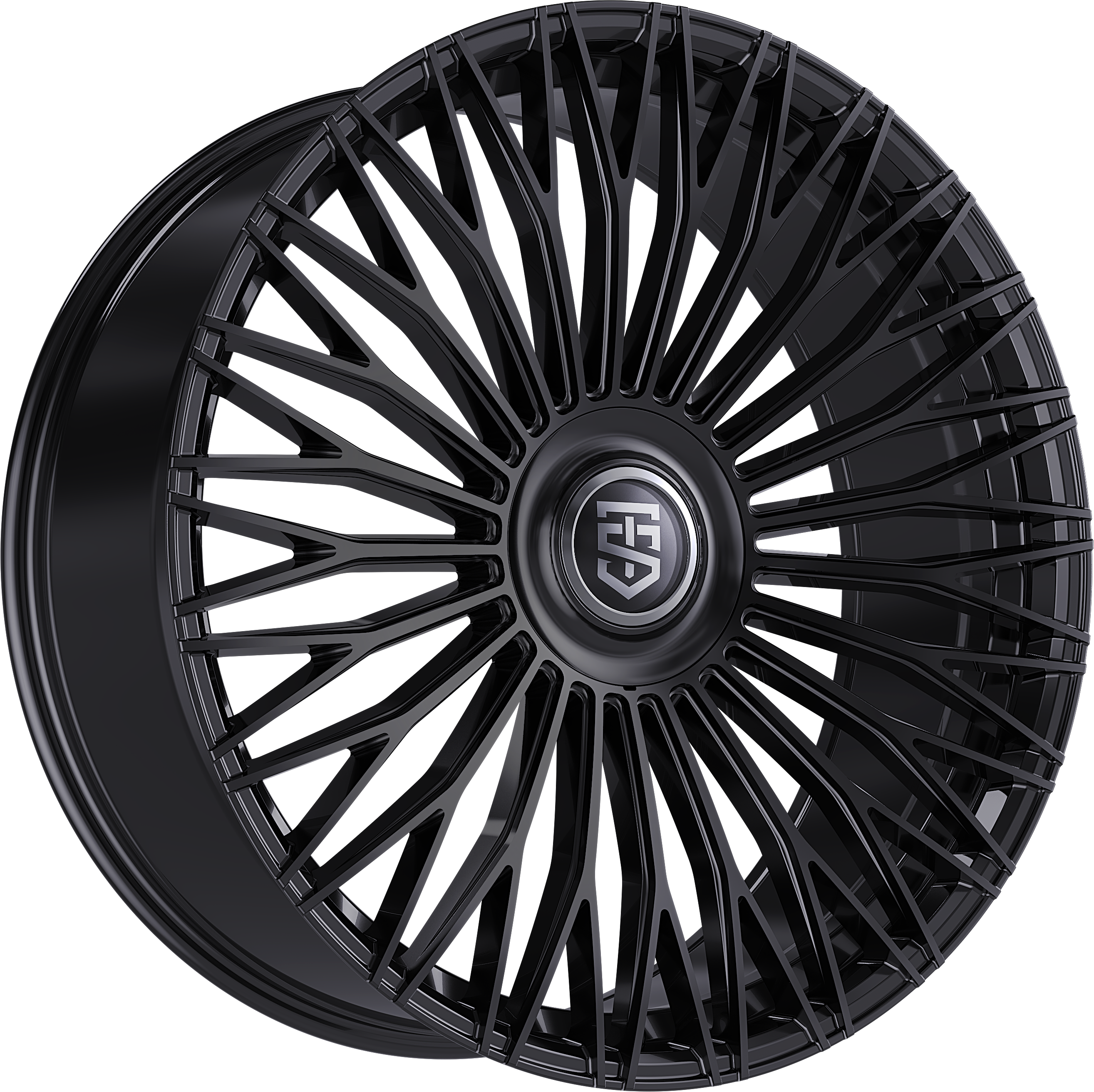

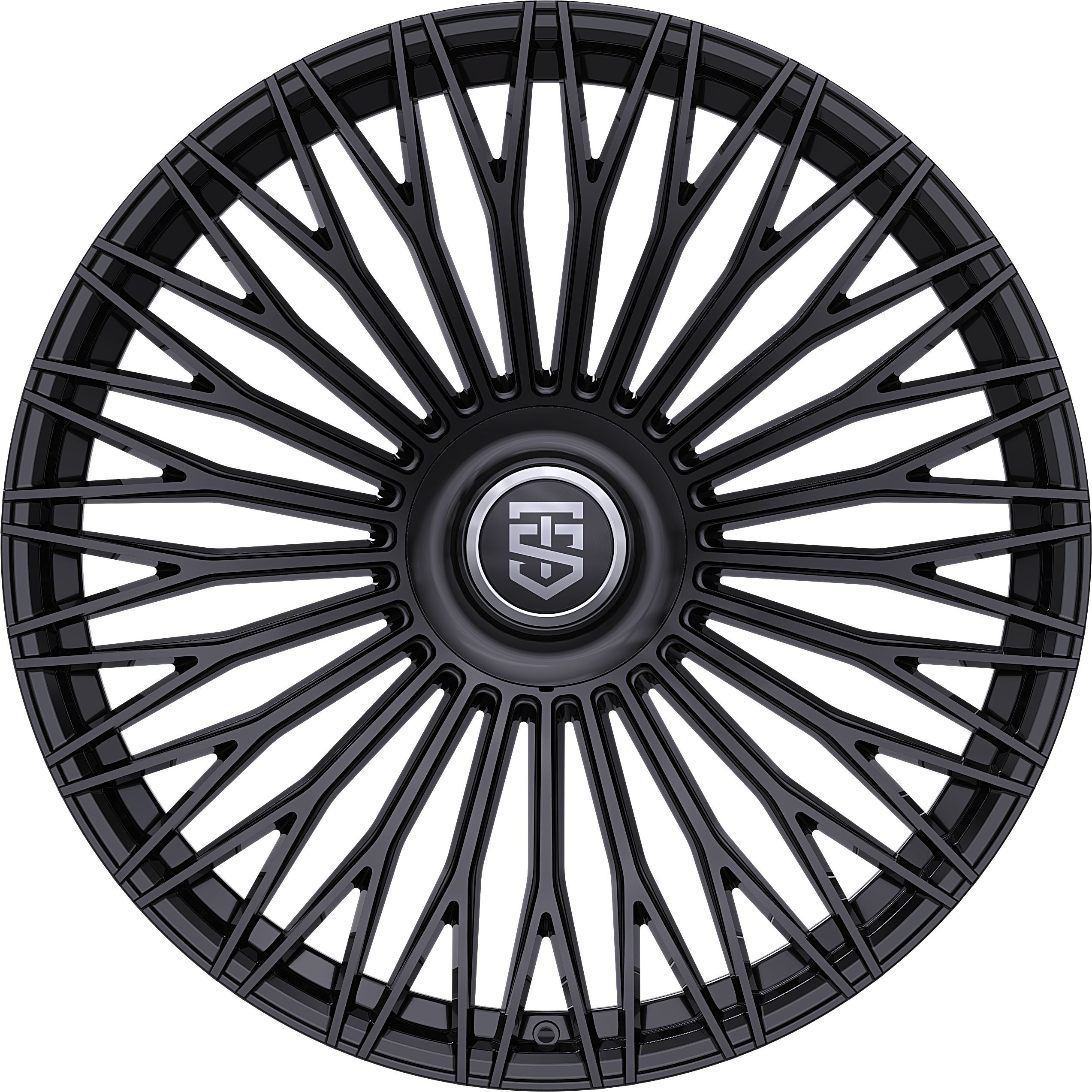

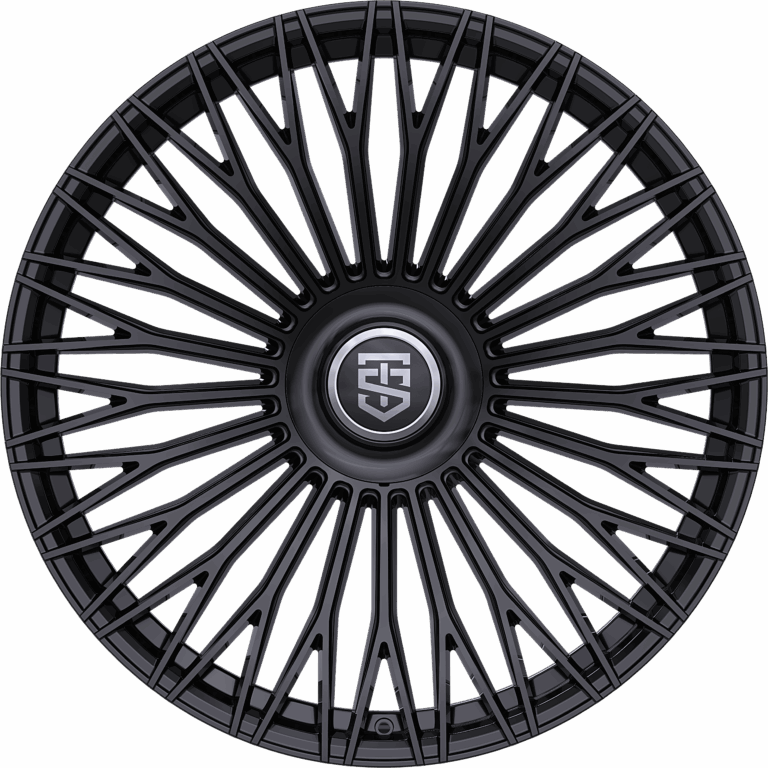

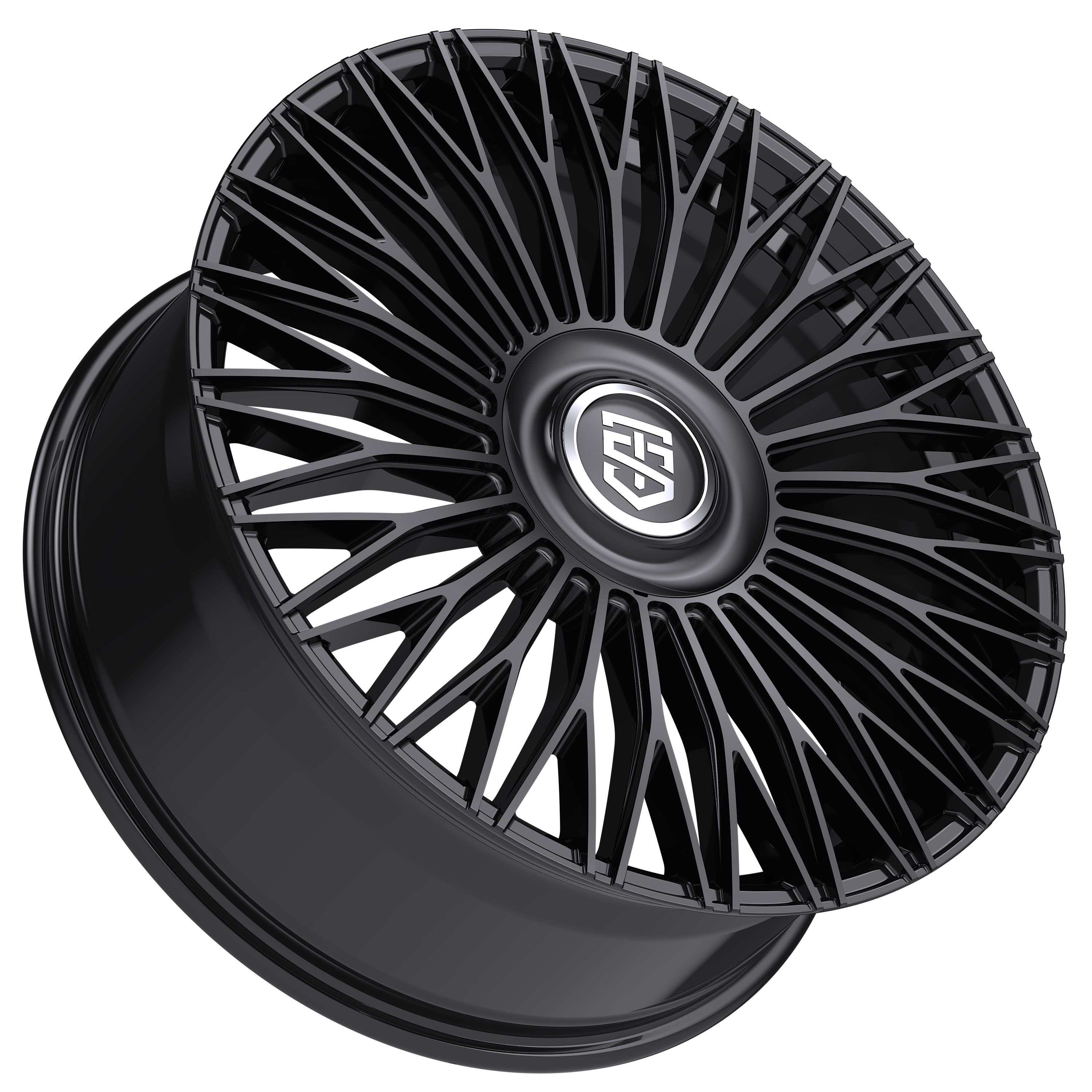

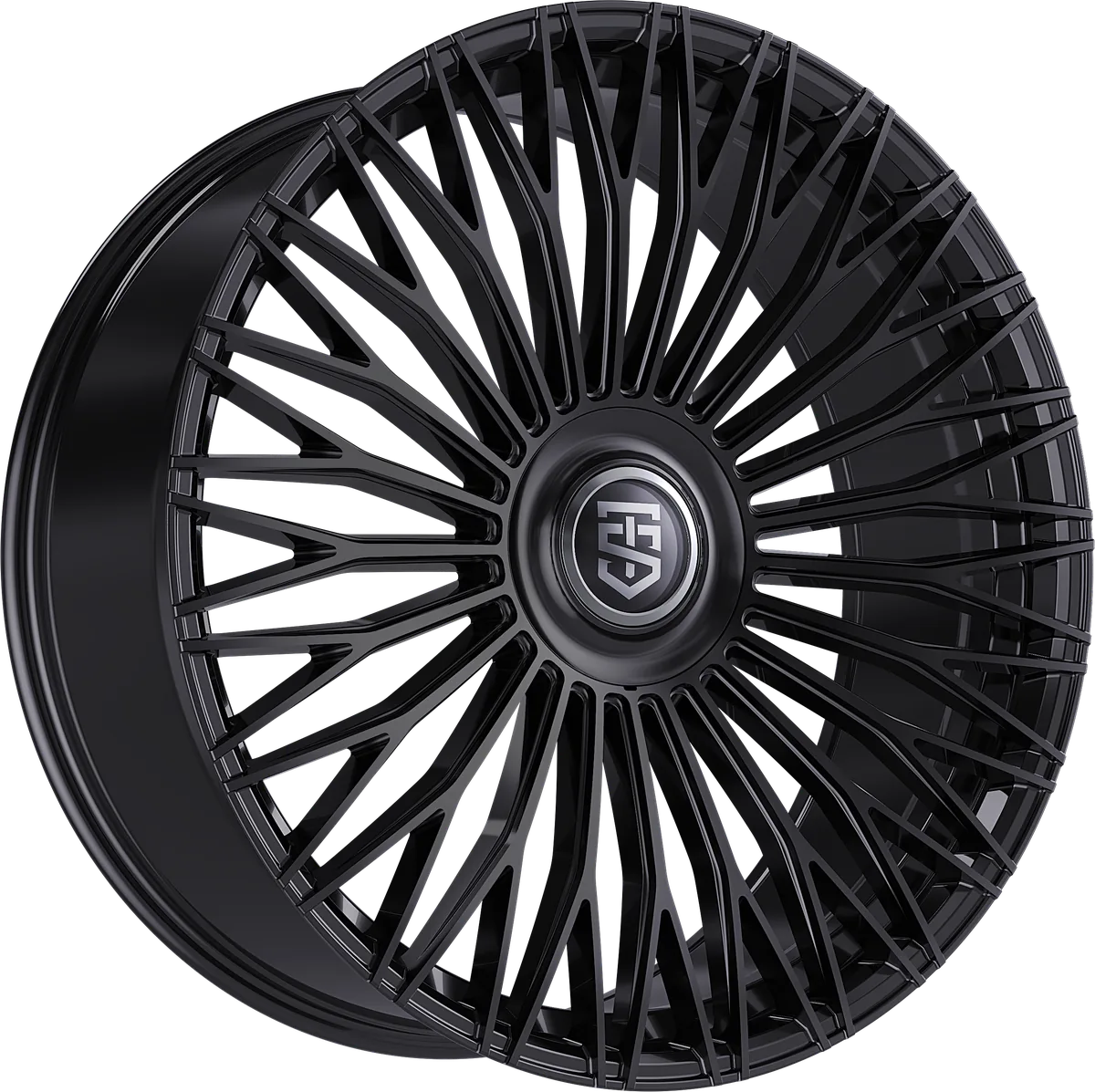

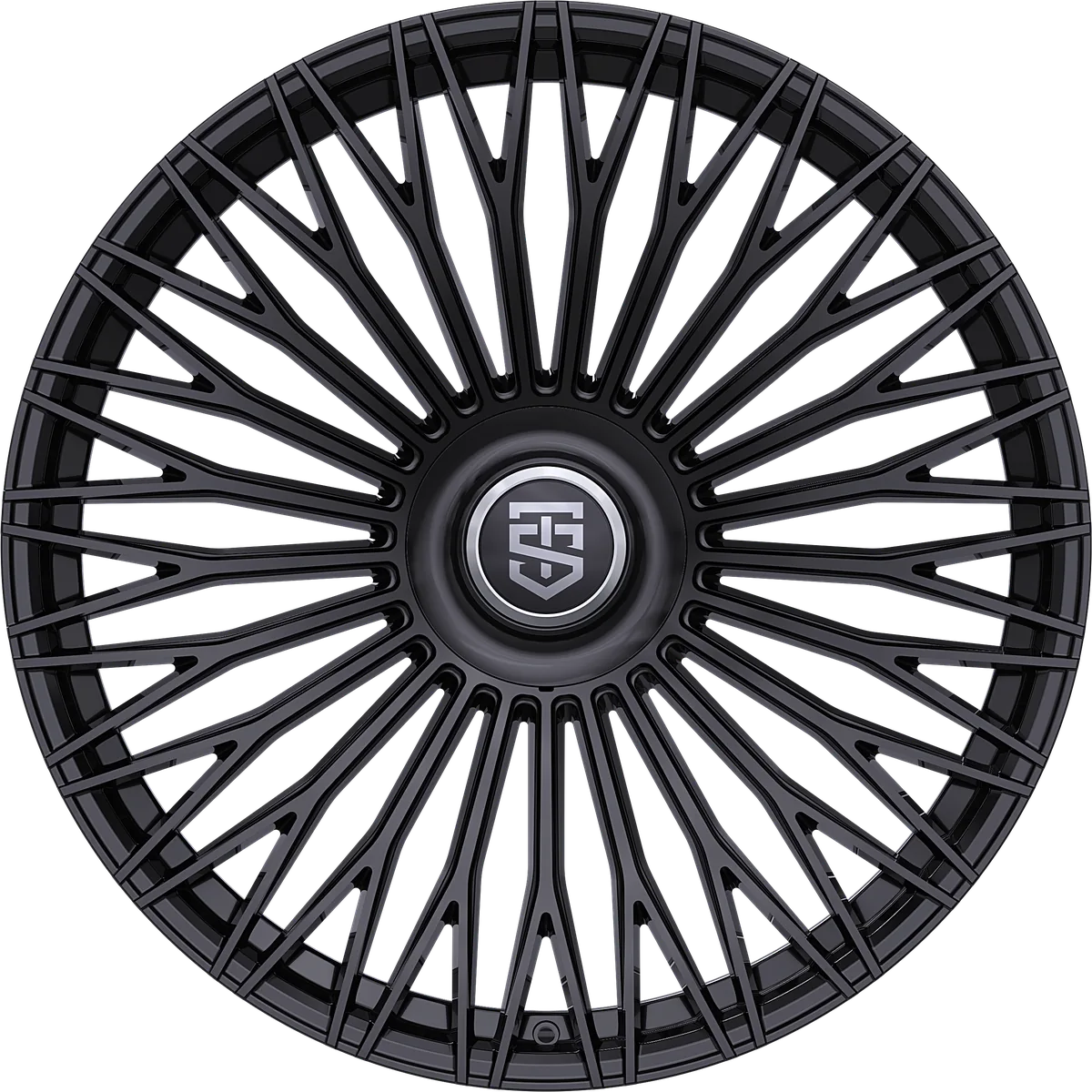

507B
Gloss Black
High-gloss black with a chrome-accented floating center-cap.
A high-gloss black finish over a full-face, multi-spoke profile gives the 507B a deep, luxury-bred shine, finished with a chrome-accented floating center-cap. Part of the TIS Motorsports line — built to complement a wide range of luxury and performance vehicles with a clean, sophisticated stance.
Available Sizes & MAP
| Size | Offset | MAP |
|---|---|---|
| 18×8 | +35 | $330 |
| 20×8.5 | +35 | $430 |
| 22×9 | +40 | $530 |
| 22×9 | +15 | $530 |
| 22×10 | +18 | $530 |
| 22×10 | +24 | $530 |
| 24×10 | +24 | $618 |
| 26×10 | +24 | $678 |
Full Specifications507B · 11 part numbers
| Part Number | Style | Size | Lugs | Bolt Pattern | Offset | Spacing | Hub | Lode | Weight | Cap |
|---|---|---|---|---|---|---|---|---|---|---|
| 507B-8805935 | 507B | 18X8 | 5 | 5X112 / 5X4.50 | +35 | 6 | 73.1 | 1800 | 2.49 | TISM-GBFL-CAP |
| 507B-8805735 | 507B | 18X8 | 5 | 5X4.50 / 5X120 | +35 | 6 | 73.1 | 1800 | 2.49 | TISM-GBFL-CAP |
| 507B-2855935 | 507B | 20X8.5 | 5 | 5X112 / 5X4.50 | +35 | 6.25 | 73.1 | 1800 | 0.4 | TISM-GBFL-CAP |
| 507B-2855735 | 507B | 20X8.5 | 5 | 5X4.50 / 5X120 | +35 | 6.25 | 73.1 | 1800 | 0.4 | TISM-GBFL-CAP |
| 507B-2206824 | 507B | 22X10 | 6 | 6X135 / 6X5.50 | +24 | 6.44 | 108 | 2200 | 4.25 | TISM-LGBFL-CAP |
| 507B-2295940 | 507B | 22X9 | 5 | 5X112 / 5X4.50 | +40 | 6.5 | 73.1 | 2200 | 3.91 | TISM-LGBFL-CAP |
| 507B-2295740 | 507B | 22X9 | 5 | 5X4.50 / 5X120 | +40 | 6.5 | 73.1 | 2200 | 3.91 | TISM-LGBFL-CAP |
| 507B-2295515 | 507B | 22X9 | 5 | 5X115 / 5X120 | +15 | 5.5 | 73.1 | 2200 | 3.91 | TISM-LGBFL-CAP |
| 507B-2406824 | 507B | 24X10 | 6 | 6X135 / 6X5.50 | +24 | 6.44 | 108 | 2200 | 5.08 | TISM-LGBFL-CAP |
| 507B-2606824 | 507B | 26X10 | 6 | 6X135 / 6X5.50 | +24 | 6.44 | 108 | 2200 | 5.88 | TISM-LGBFL-CAP |
| 507B-2806824 | 507B | 28X10 | 6 | 6X135 / 6X5.50 | +24 | 6.44 | 108 | 2200 | 60 | TISM-SCFL-CAP |

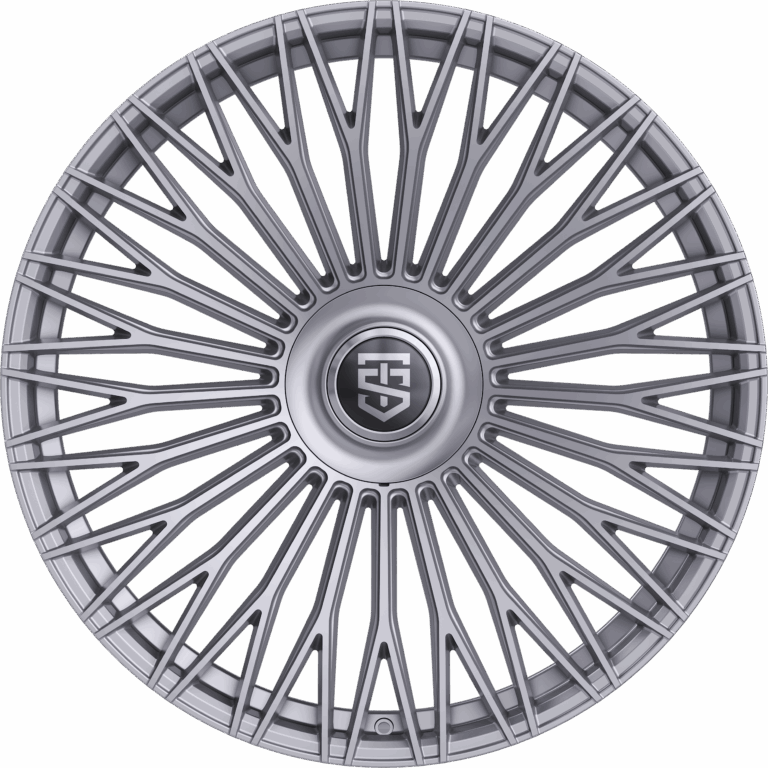

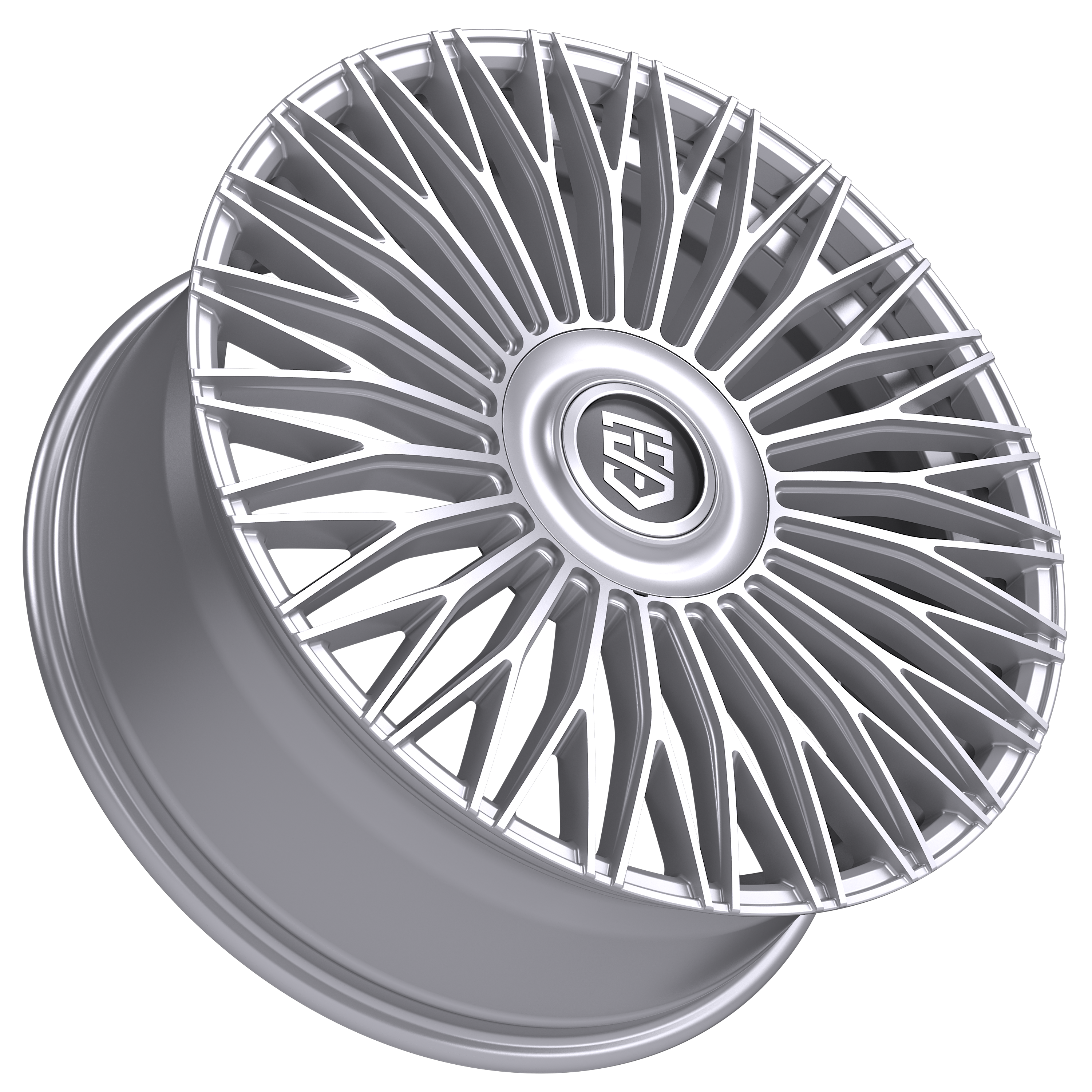

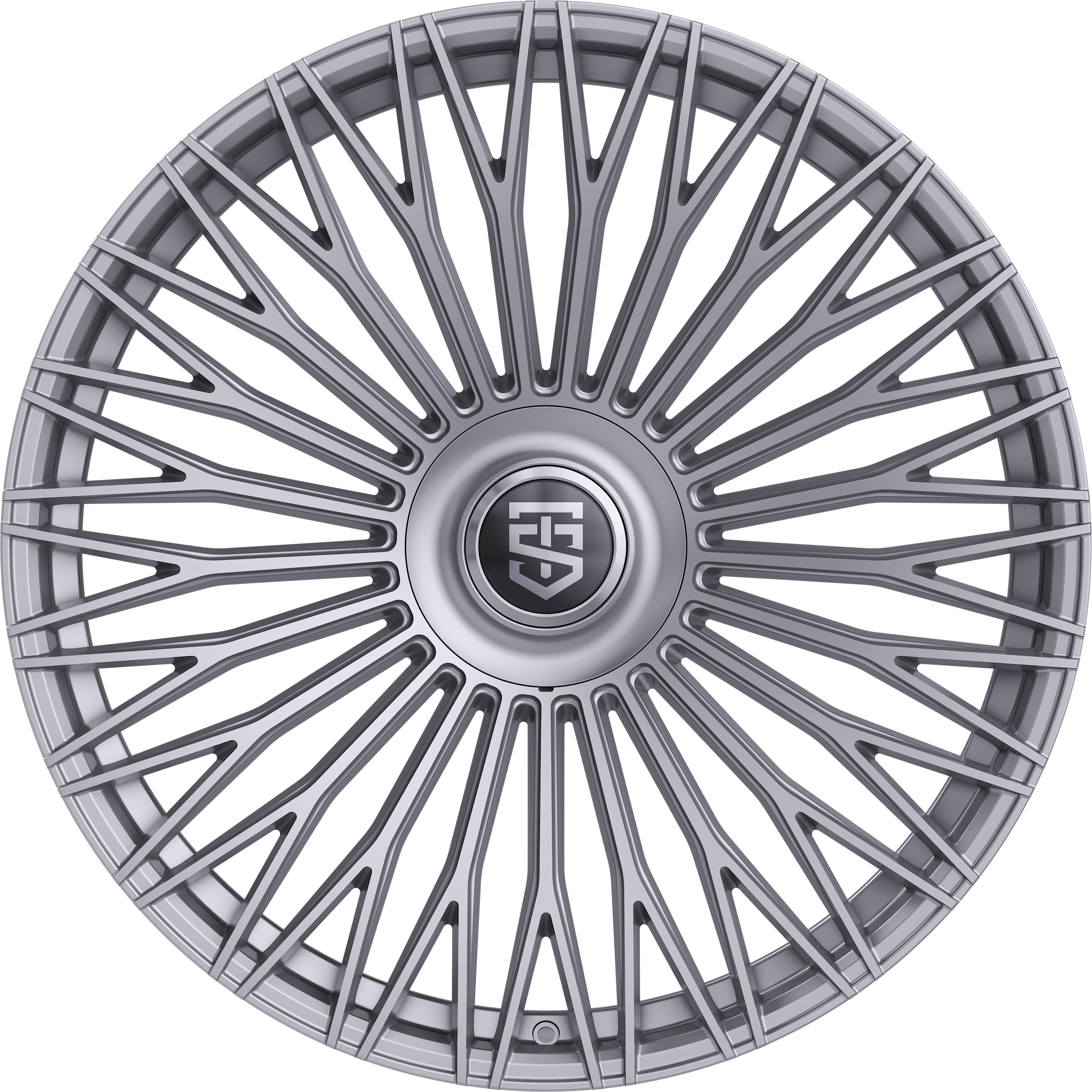

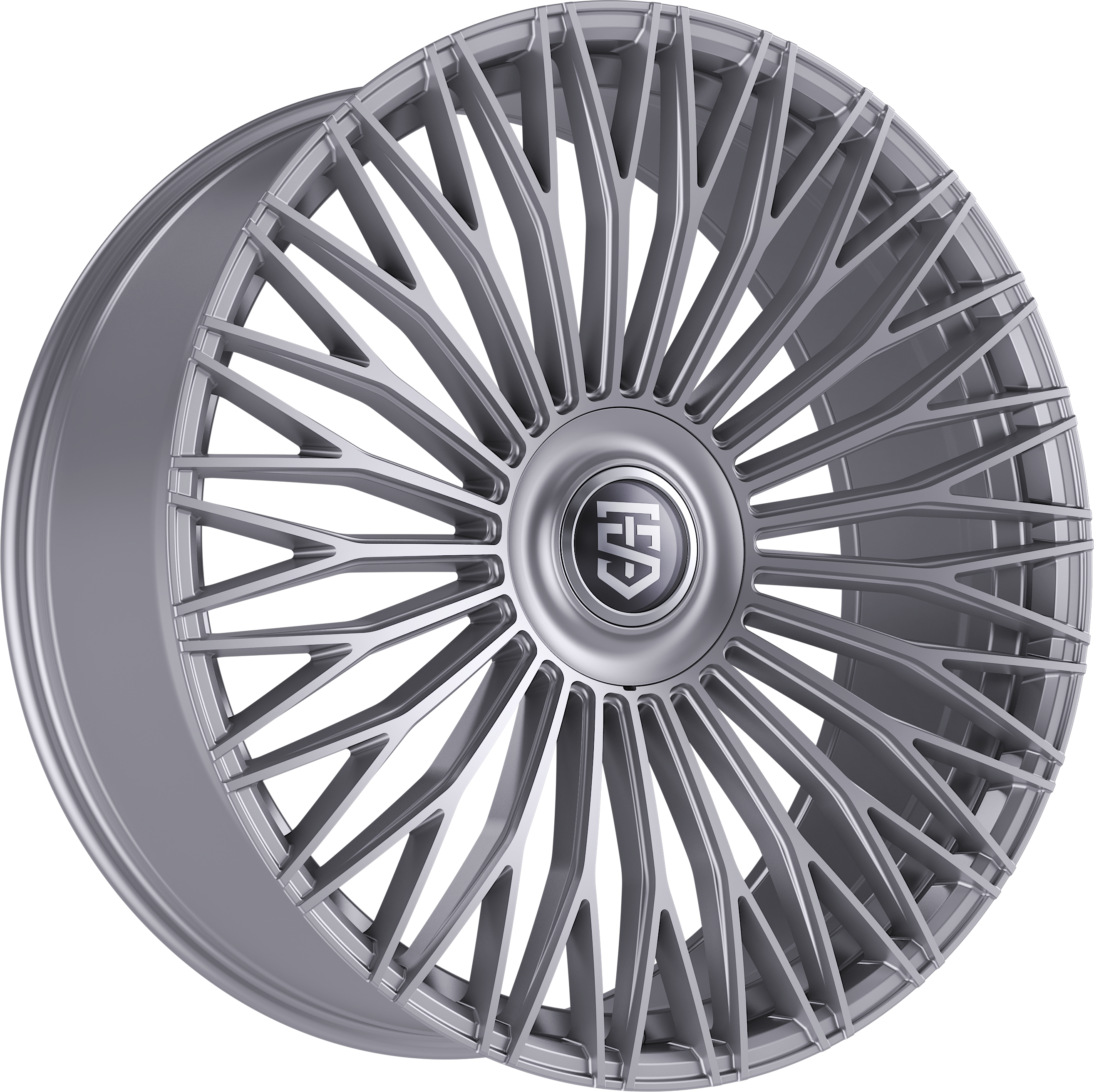

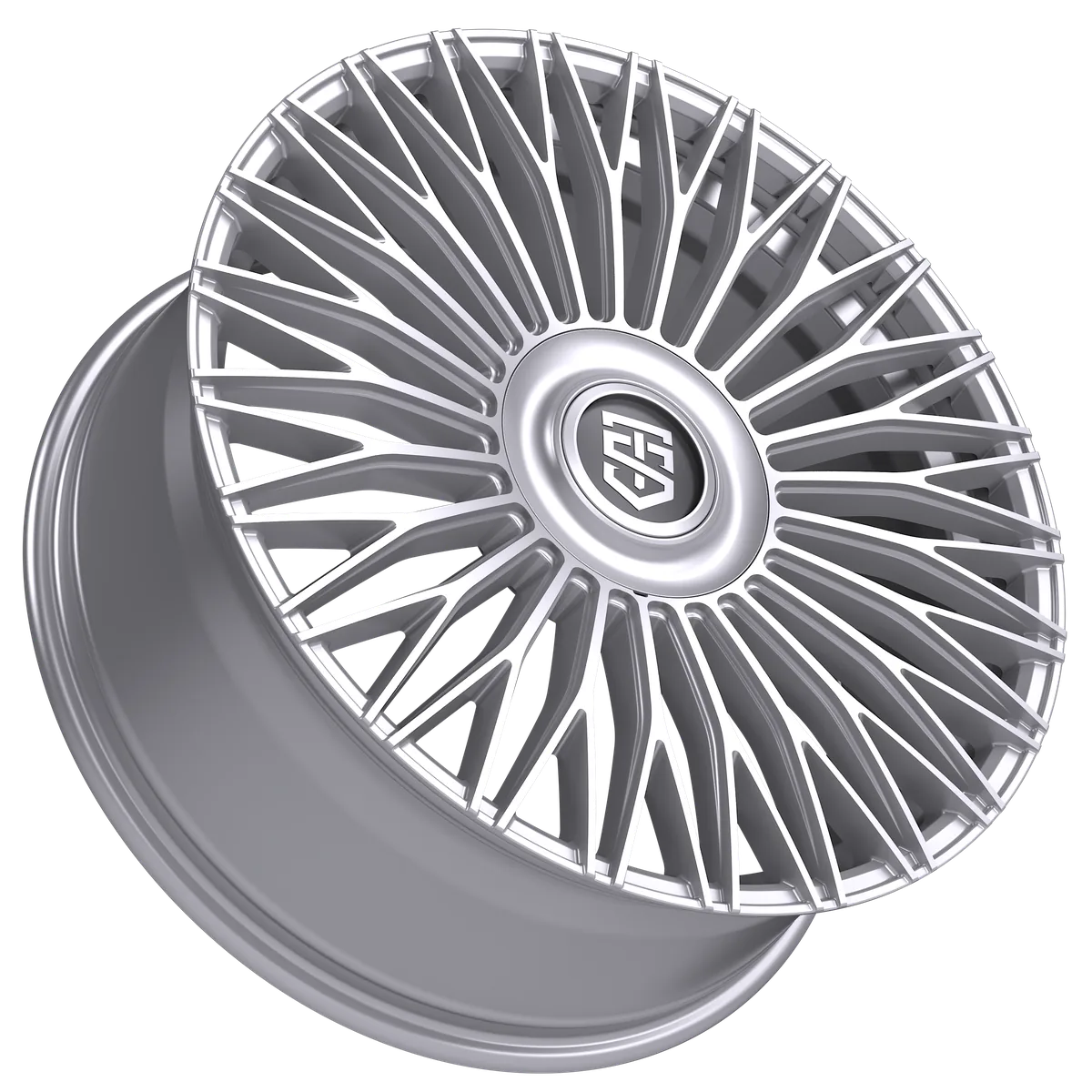

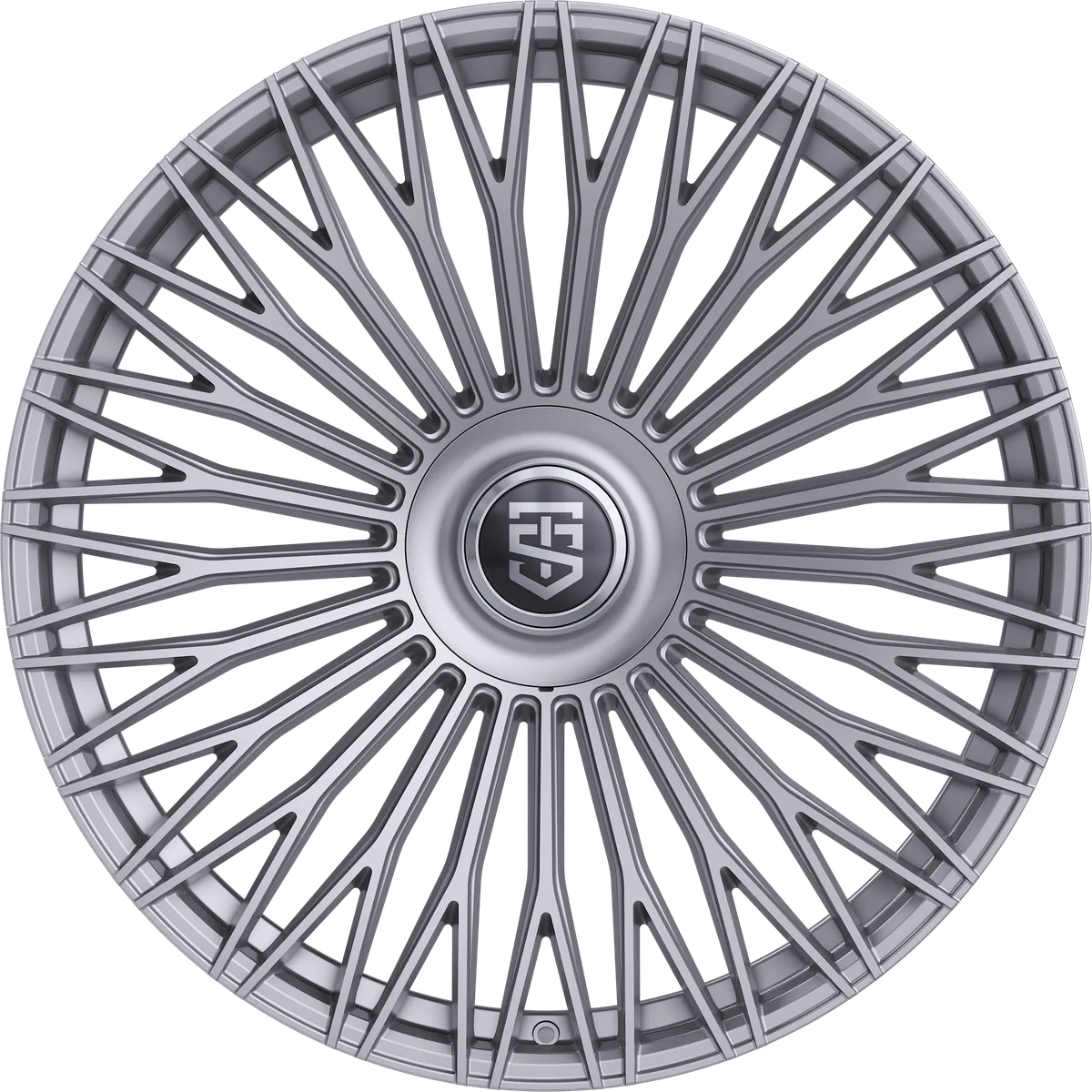

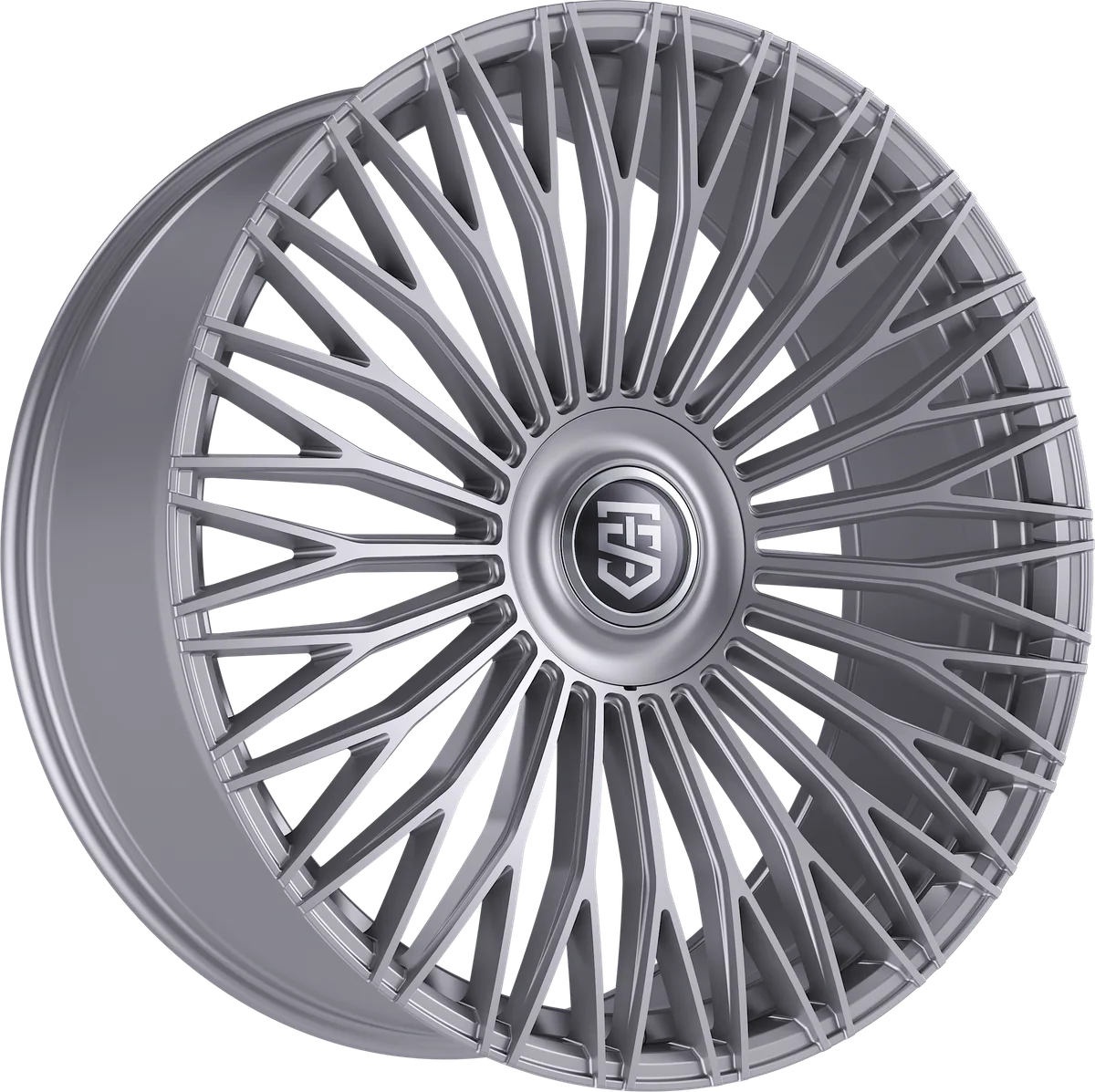

507S
Gloss Silver
High-gloss silver with a chrome-accented floating center-cap.
A high-gloss silver finish over a full-face, multi-spoke profile gives the 507S a bright, refined shine, finished with a chrome-accented floating center-cap. Part of the TIS Motorsports line — a lighter, more luminous take that complements luxury and performance builds with a clean, sophisticated stance.
Available Sizes & MAP
| Size | Offset | MAP |
|---|---|---|
| 18×8 | +35 | $330 |
| 20×8.5 | +35 | $430 |
| 22×9 | +40 | $530 |
| 22×9 | +15 | $530 |
| 22×10 | +18 | $530 |
| 22×10 | +24 | $530 |
| 24×10 | +24 | $618 |
| 26×10 | +24 | $678 |
Full Specifications507S · 10 part numbers
| Part Number | Style | Size | Lugs | Bolt Pattern | Offset | Spacing | Hub | Lode | Weight | Cap |
|---|---|---|---|---|---|---|---|---|---|---|
| 507S-8805935 | 507S | 18X8 | 5 | 5X112 / 5X4.50 | +35 | 6 | 73.1 | 1800 | 2.49 | TISM-SCFL-CAP |
| 507S-8805735 | 507S | 18X8 | 5 | 5X4.50 / 5X120 | +35 | 6 | 73.1 | 1800 | 2.49 | TISM-SCFL-CAP |
| 507S-2855935 | 507S | 20X8.5 | 5 | 5X112 / 5X4.50 | +35 | 6.25 | 73.1 | 1800 | 0.4 | TISM-SCFL-CAP |
| 507S-2855735 | 507S | 20X8.5 | 5 | 5X4.50 / 5X120 | +35 | 6.25 | 73.1 | 1800 | 0.4 | TISM-SCFL-CAP |
| 507S-2206824 | 507S | 22X10 | 6 | 6X135 / 6X5.50 | +24 | 6.44 | 108 | 2200 | 4.25 | TISM-LSCFL-CAP |
| 507S-2295940 | 507S | 22X9 | 5 | 5X112 / 5X4.50 | +40 | 6.5 | 73.1 | 2200 | 3.91 | TISM-LSCFL-CAP |
| 507S-2295740 | 507S | 22X9 | 5 | 5X4.50 / 5X120 | +40 | 6.5 | 73.1 | 2200 | 3.91 | TISM-LSCFL-CAP |
| 507S-2406824 | 507S | 24X10 | 6 | 6X135 / 6X5.50 | +24 | 6.44 | 108 | 2200 | 5.08 | TISM-LSCFL-CAP |
| 507S-2606824 | 507S | 26X10 | 6 | 6X135 / 6X5.50 | +24 | 6.44 | 108 | 2200 | 5.88 | TISM-LSCFL-CAP |
| 507S-2806824 | 507S | 28X10 | 6 | 6X135 / 6X5.50 | +24 | 6.44 | 108 | 2200 | 60 | TISM-LSCFL-CAP |

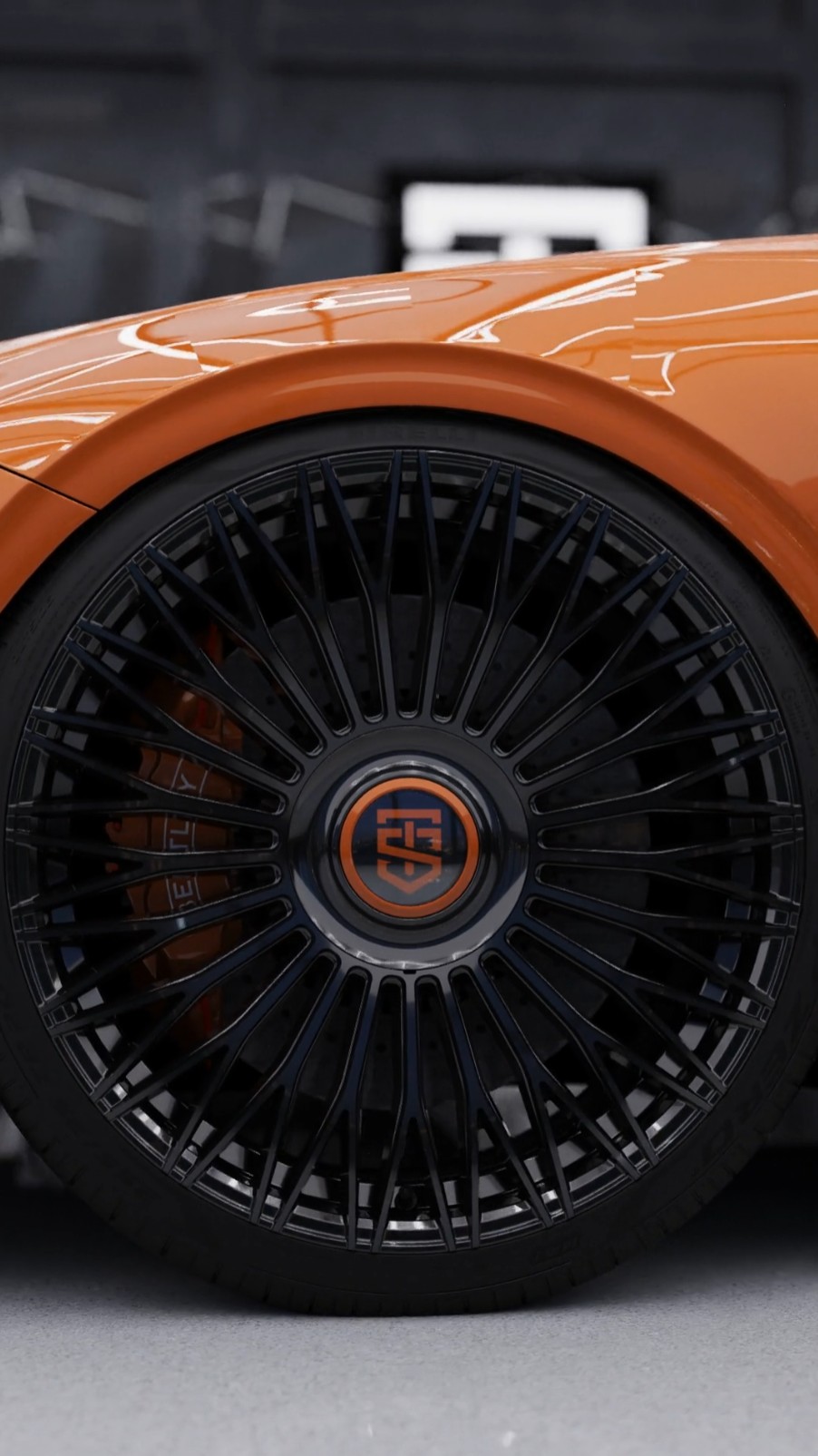

A Floating Center-Cap That Never Spins
The 507's signature floating center-cap is engineered to stay upright while the wheel turns — the TIS Motorsports logo reads right-side-up at every speed, parked or rolling. It's a clean, premium detail that keeps the cap perfectly level and your wheels looking their best from any angle.

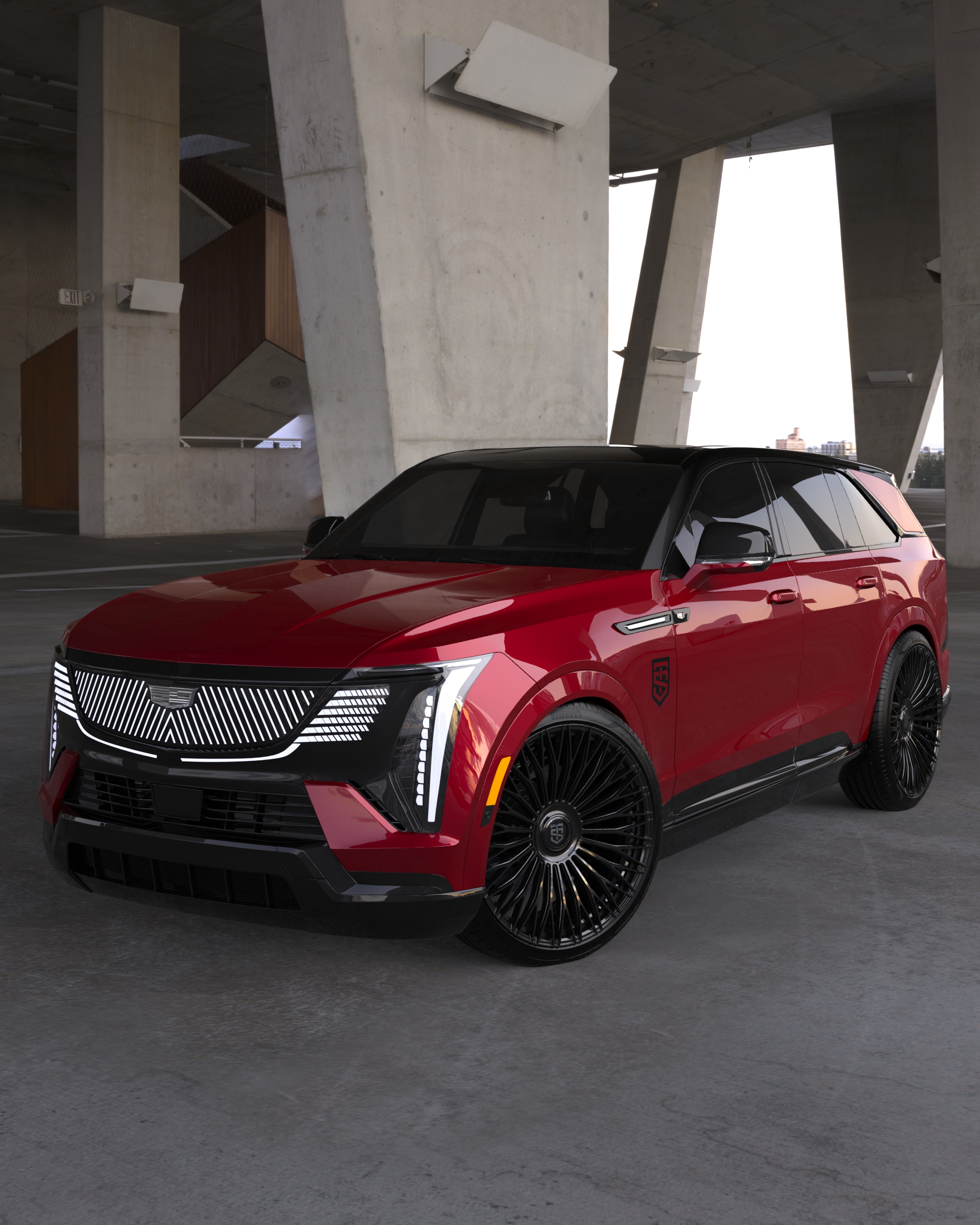

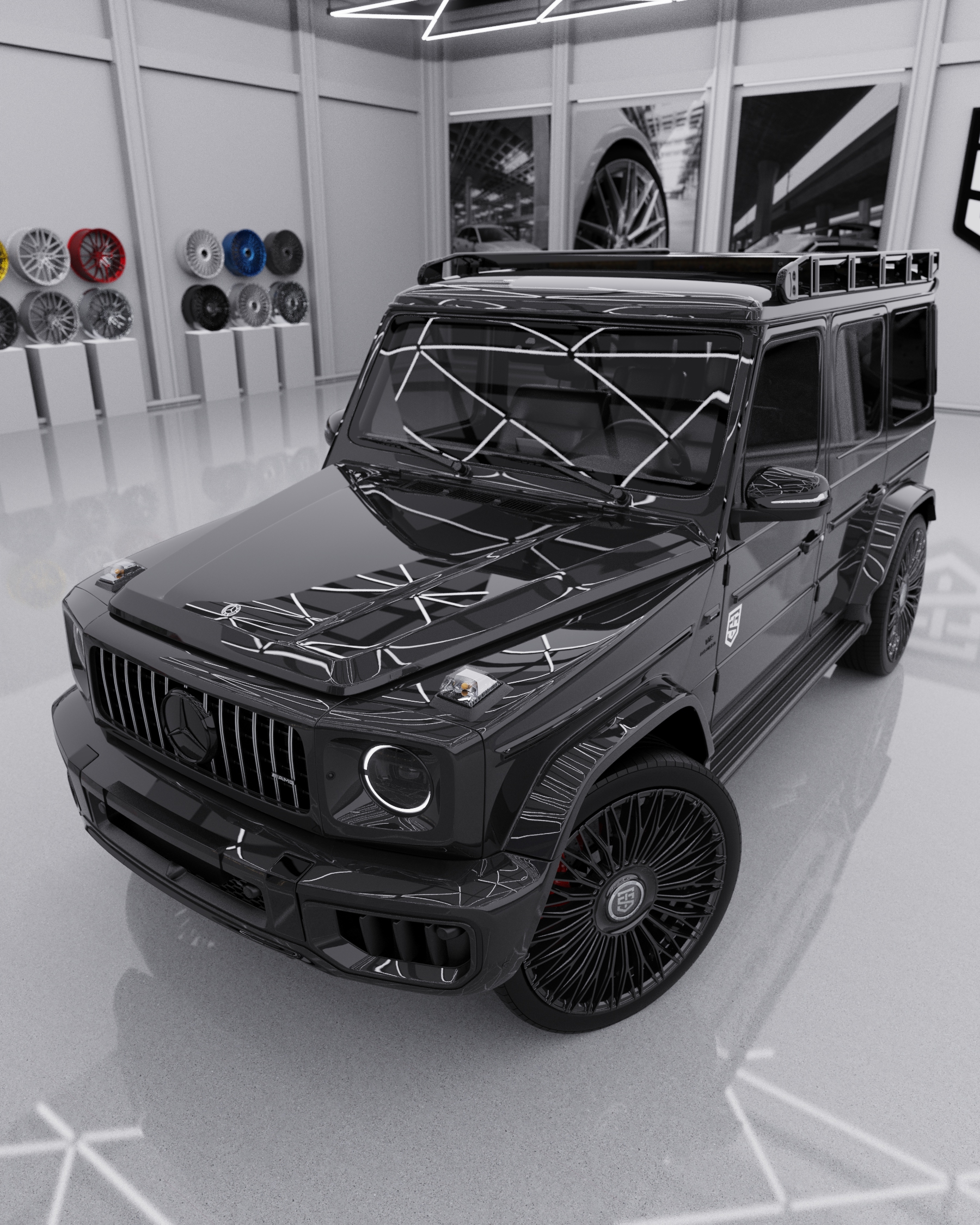

POWERED BY 507

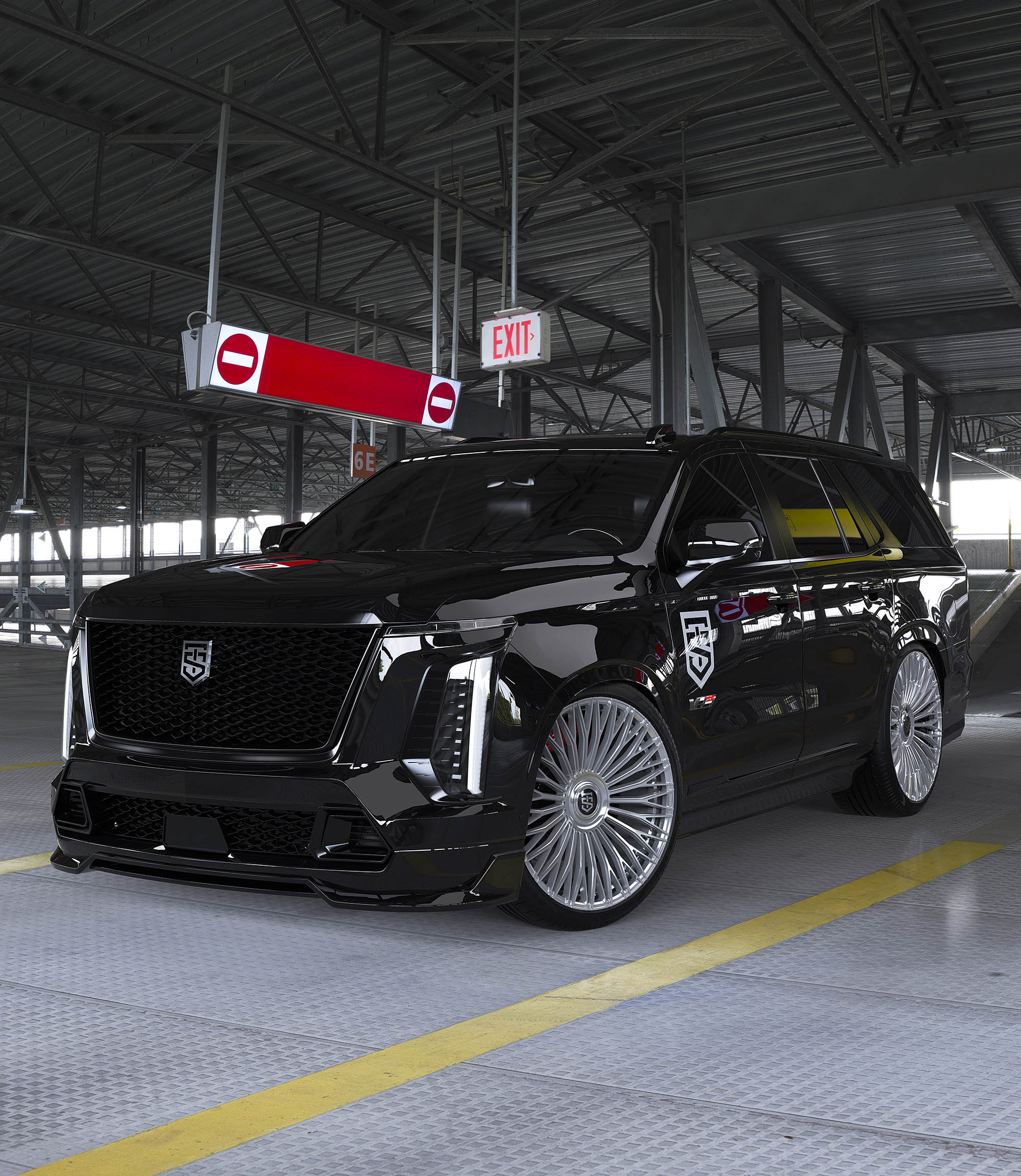

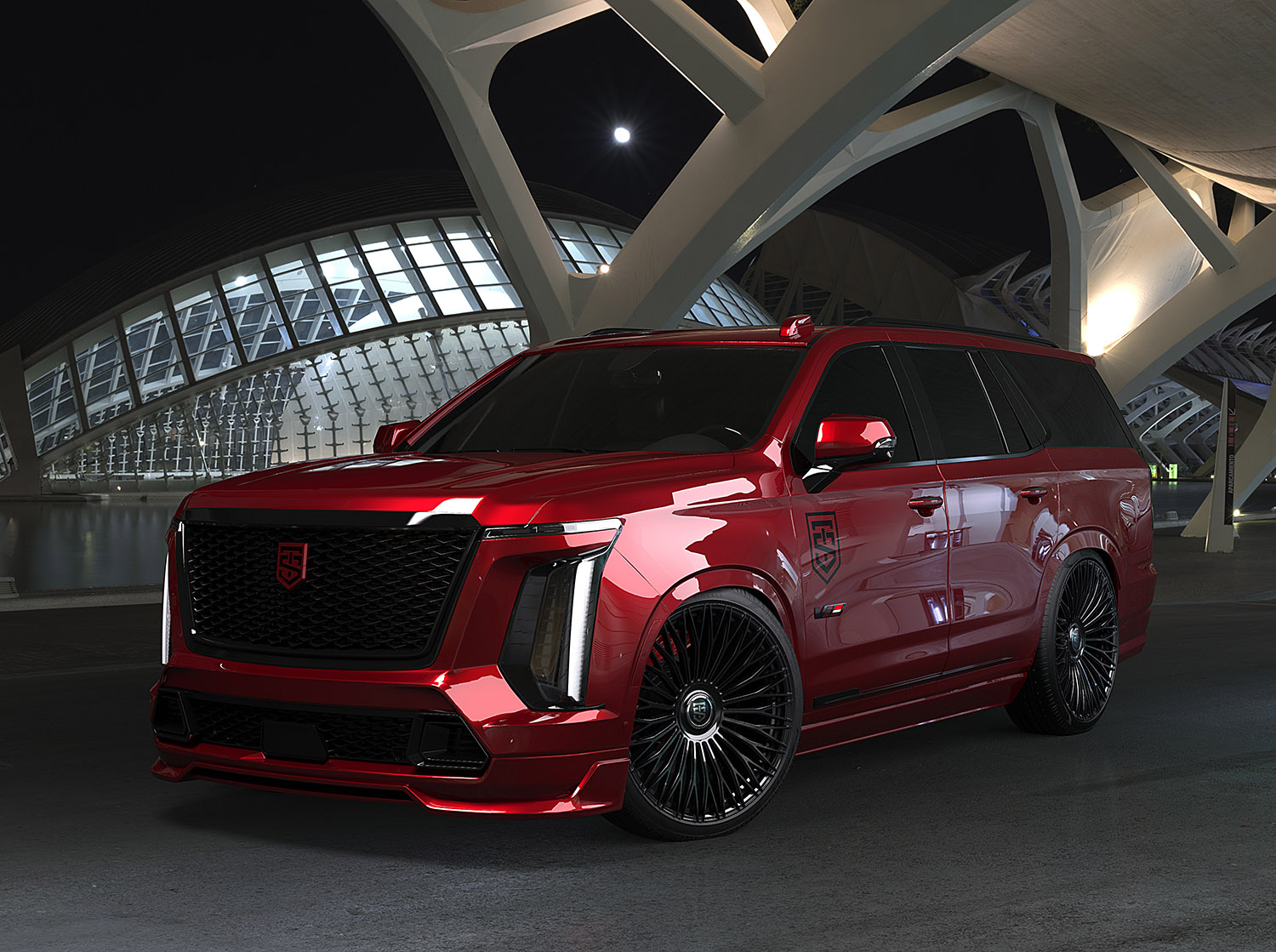

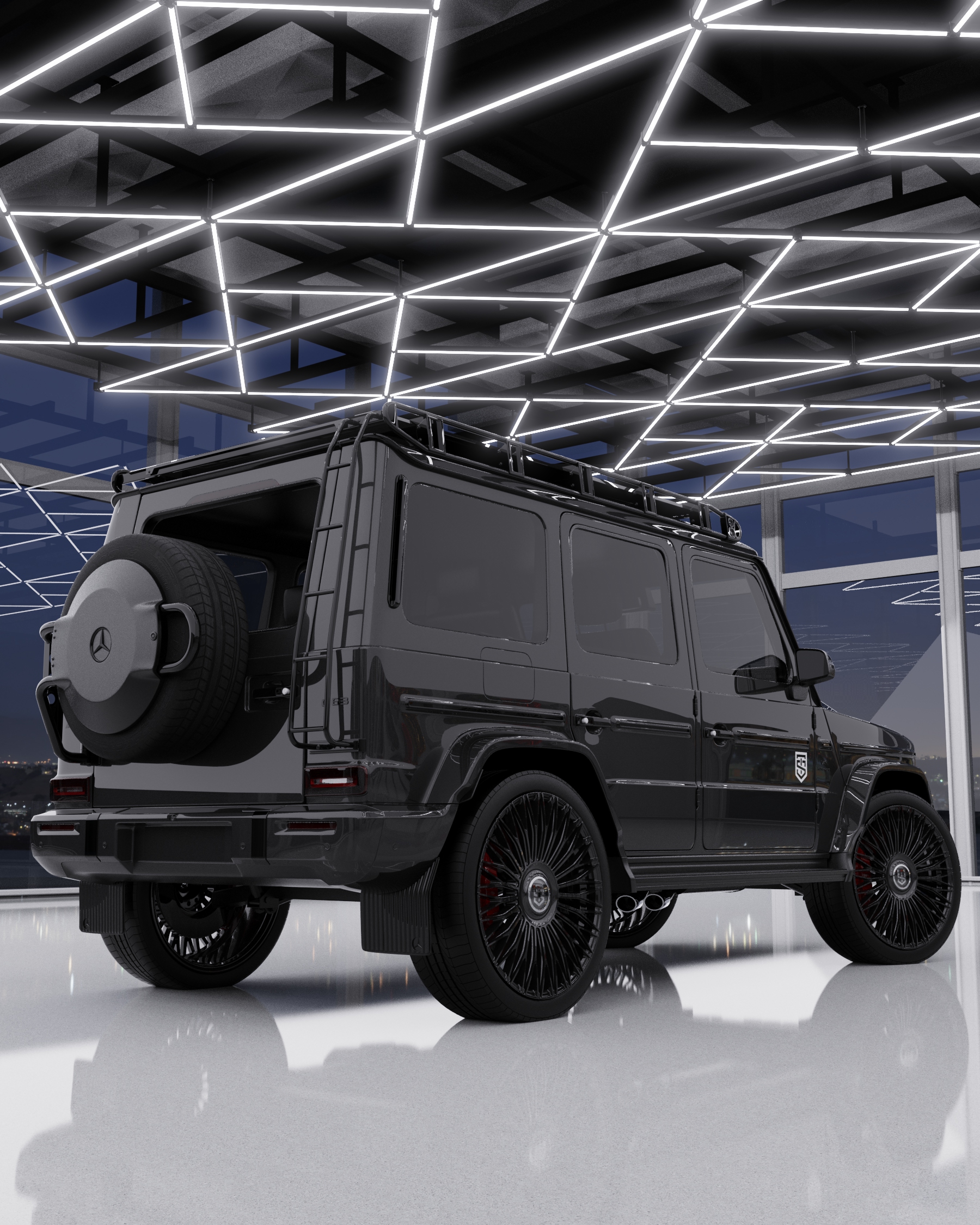

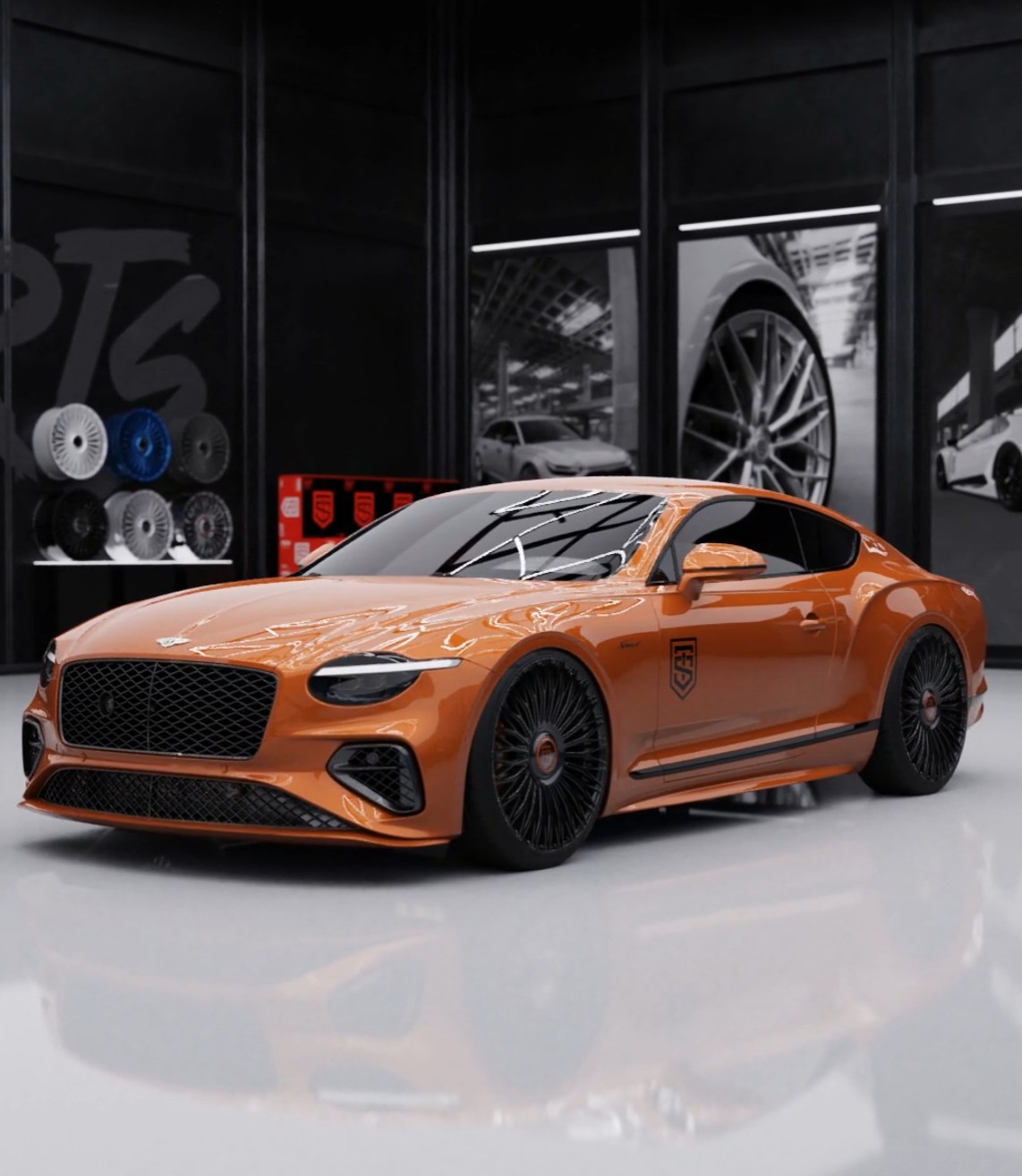

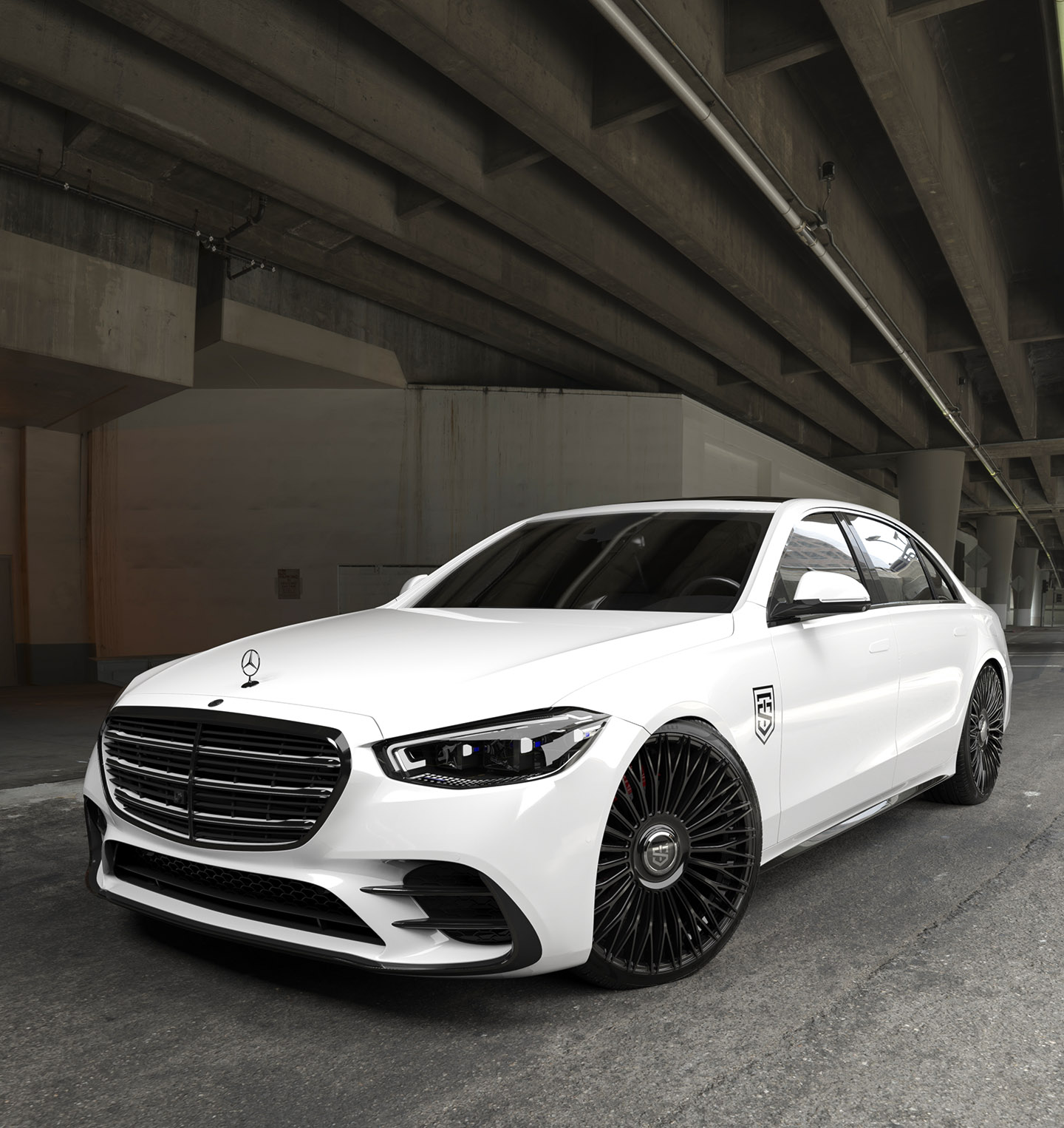

Vehicle renders pulled live from the TIS asset vault — the 507 on real builds, low, loaded, and impossible to ignore.
Find a TIS Dealer Near You
Ready to run the 507? Find an authorized TIS retailer to see them in person, get fitment help, and order the right size for your build.
