TIS Motorsports · Wide-Open Concave · Multi-Piece Cap
TIS 504
Performance-bred and built to stand out. A TIS Motorsports wheel with a wide-open concave 5- or 6-spoke face and multi-piece customizable center-cap — offered in gloss black, satin bronze, machined black, machined silver, and gloss silver to match any build.
Choose Your Finish
Five finishes, one wide-open concave profile. Switch between them to see the full angle gallery, dedicated video, sizing, and complete spec sheet for each.

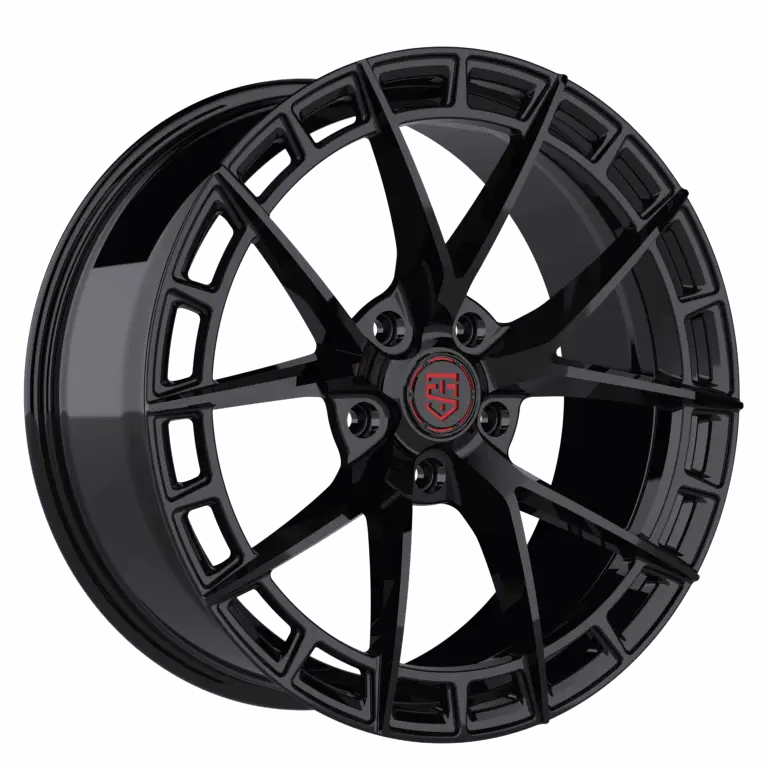

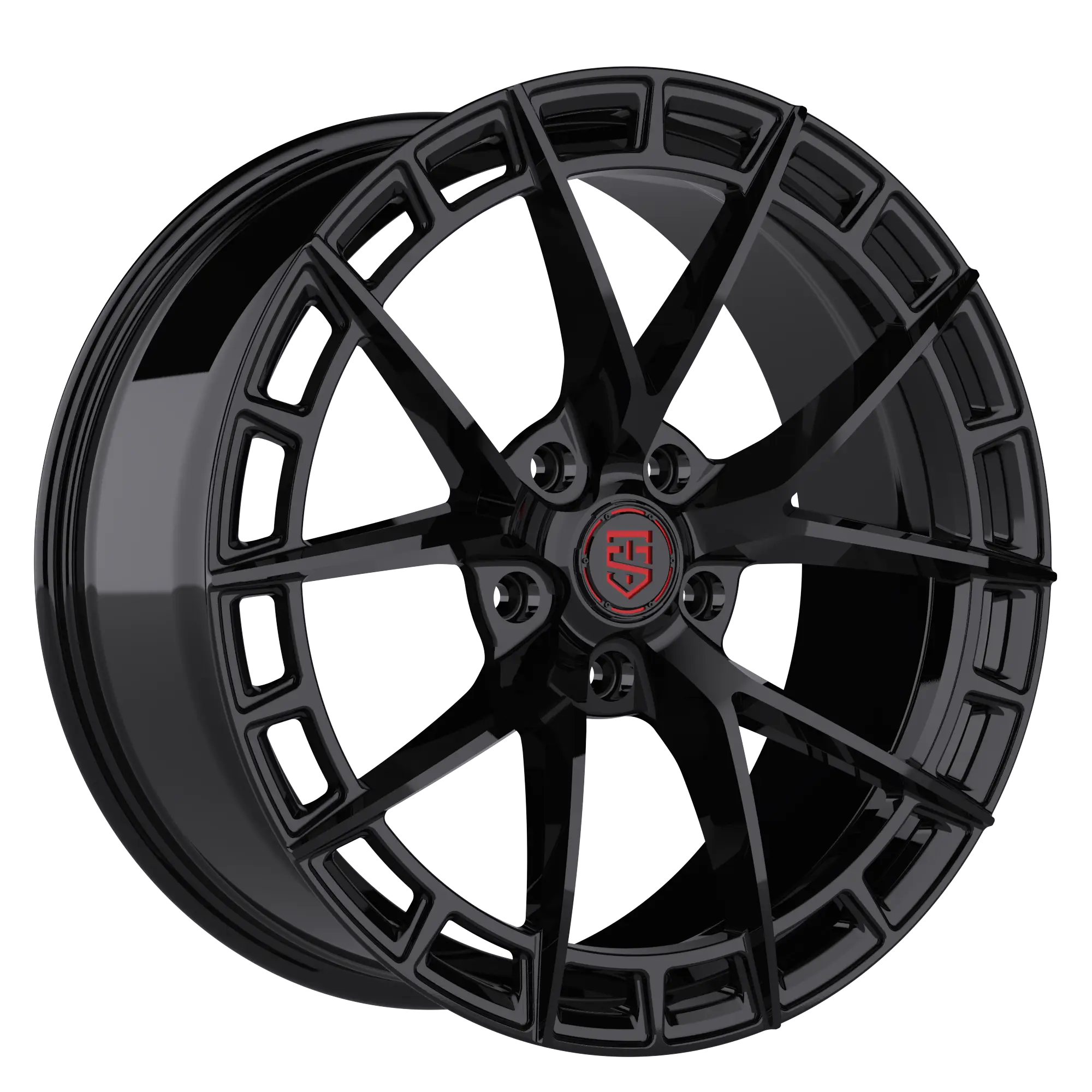

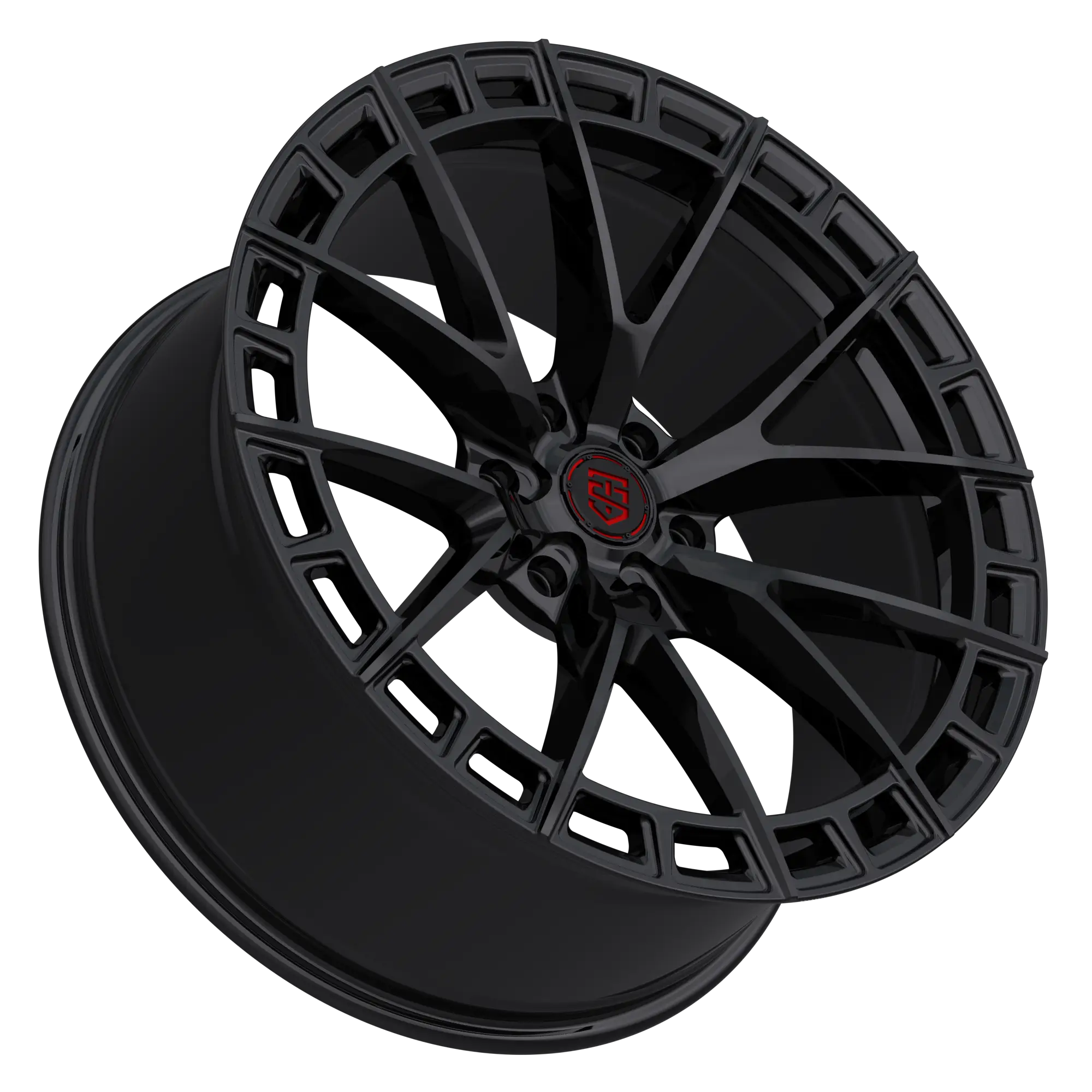

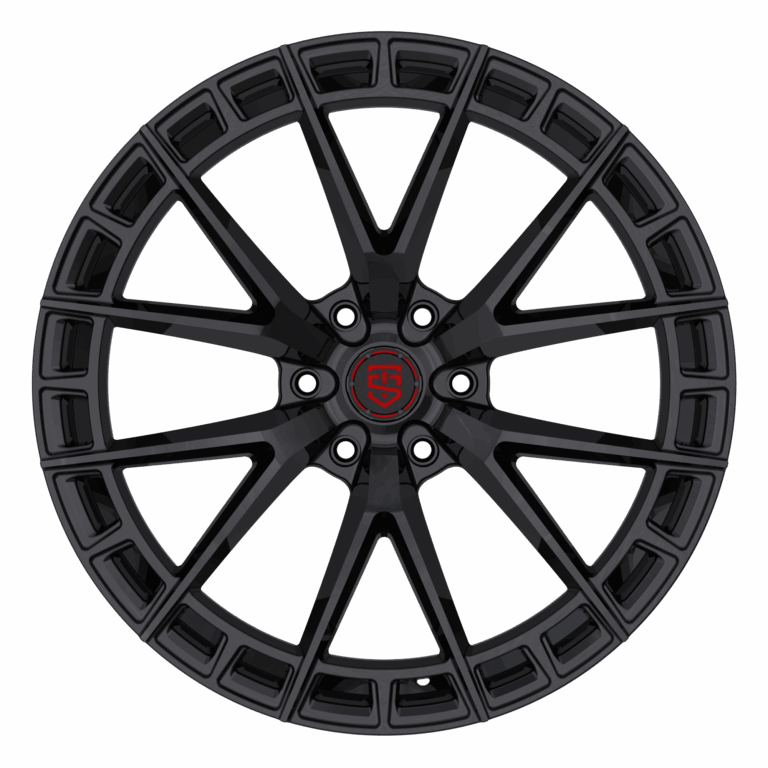

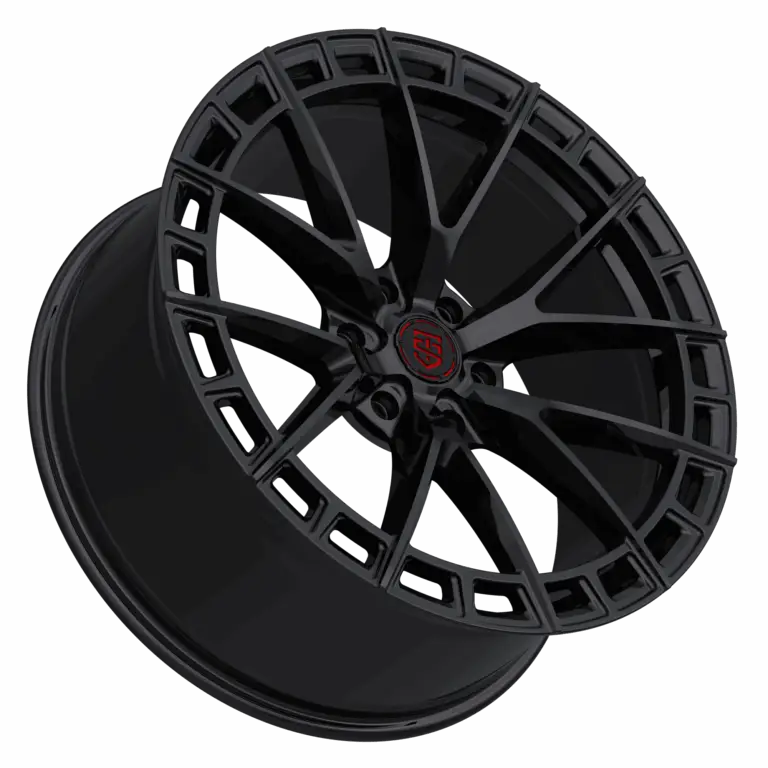

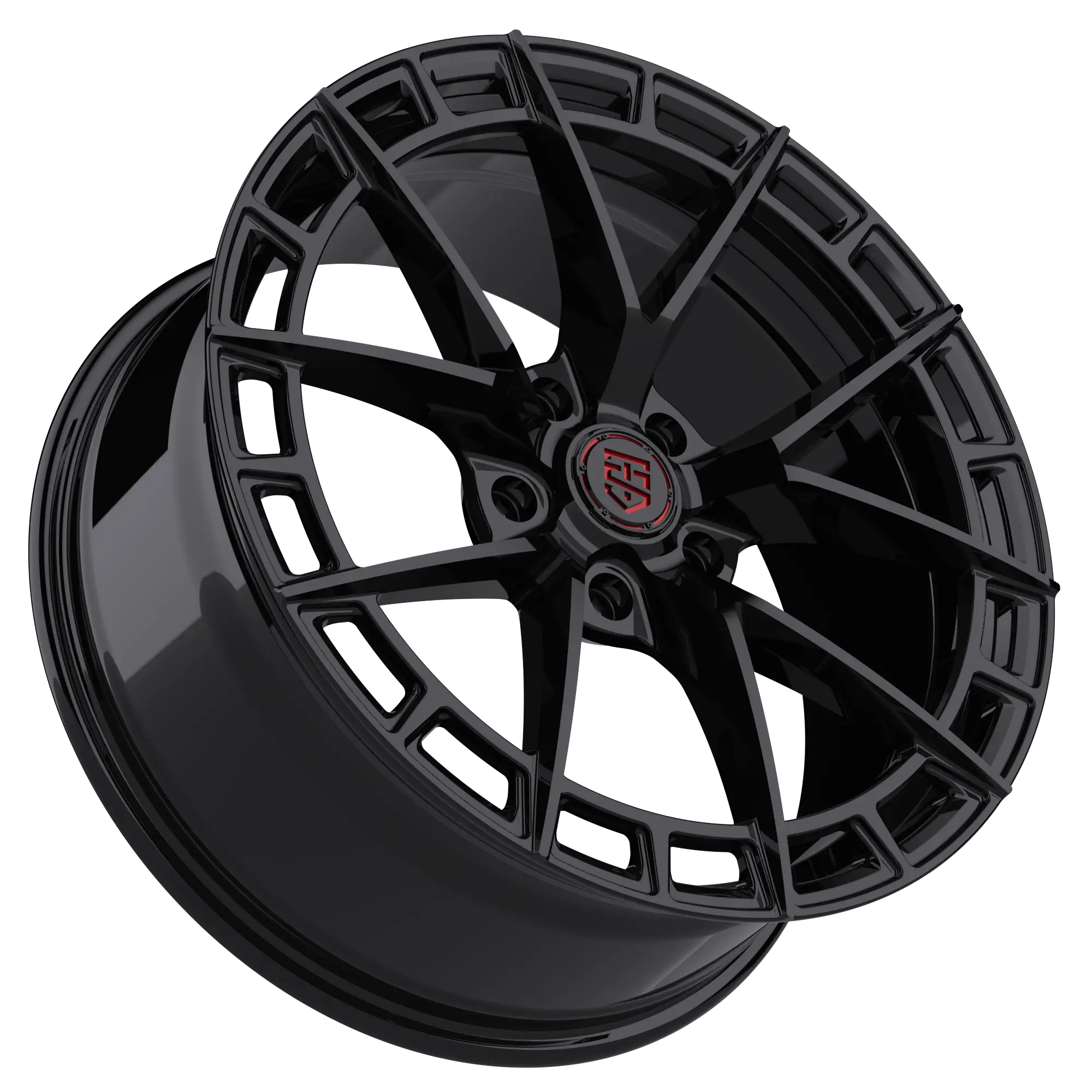

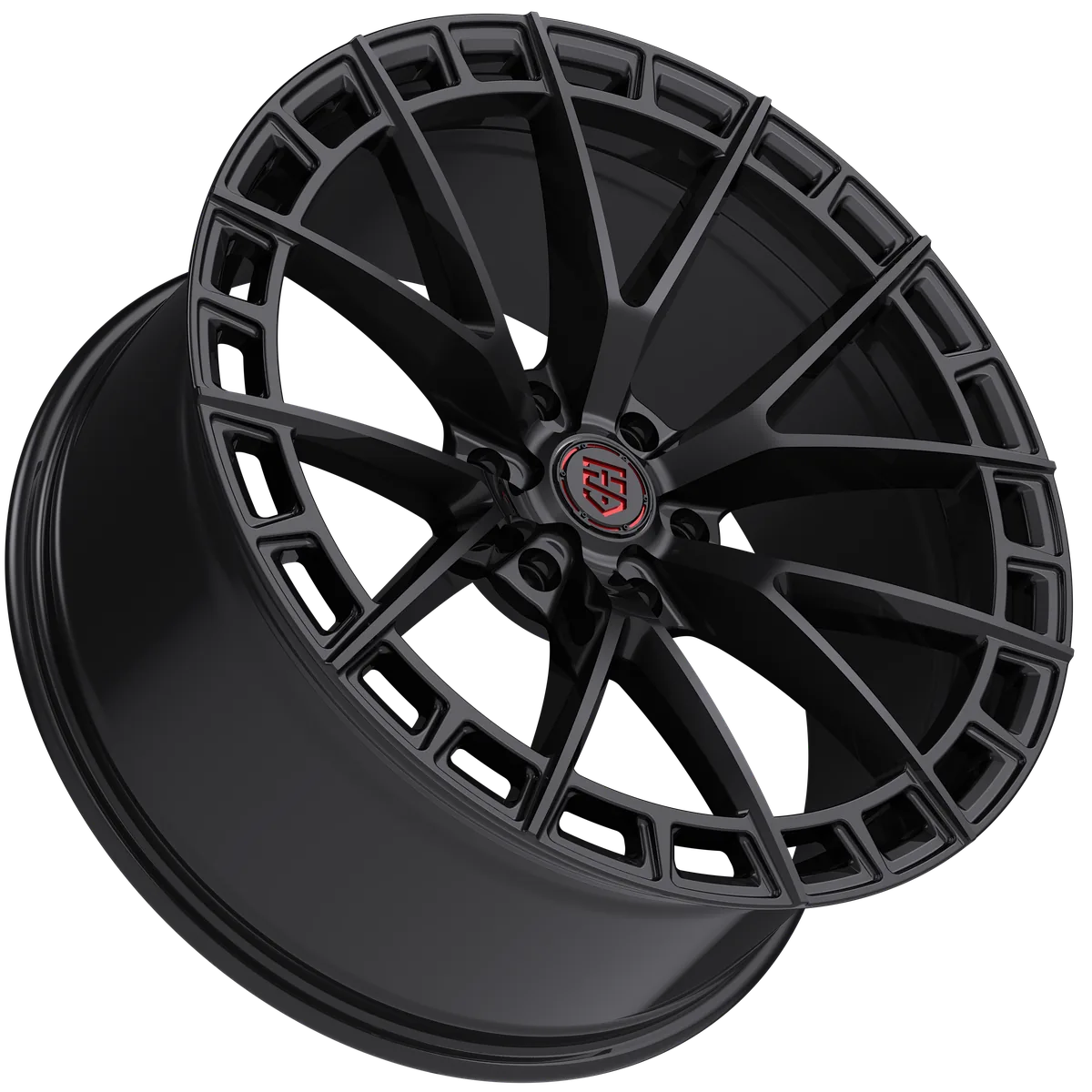

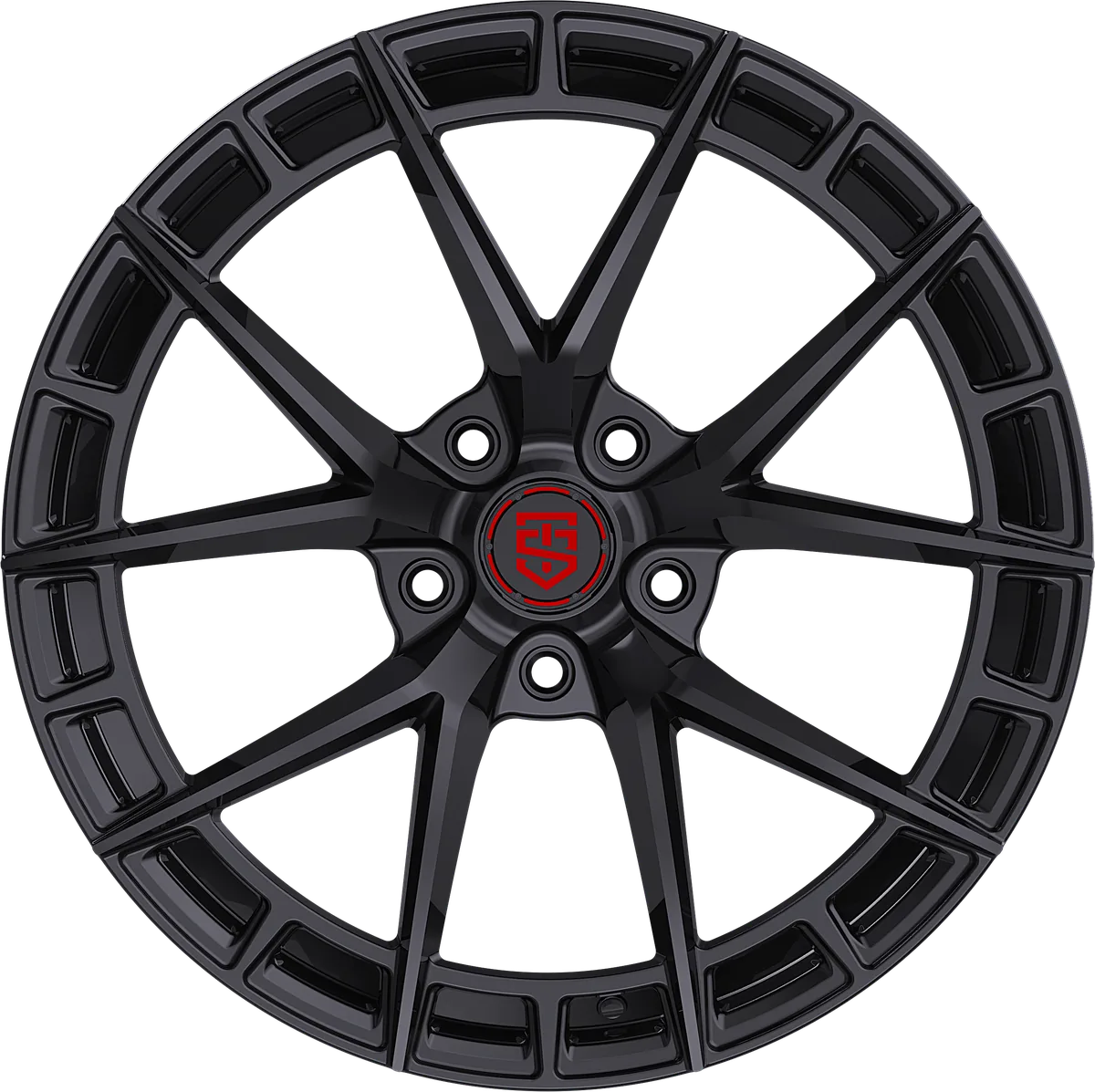

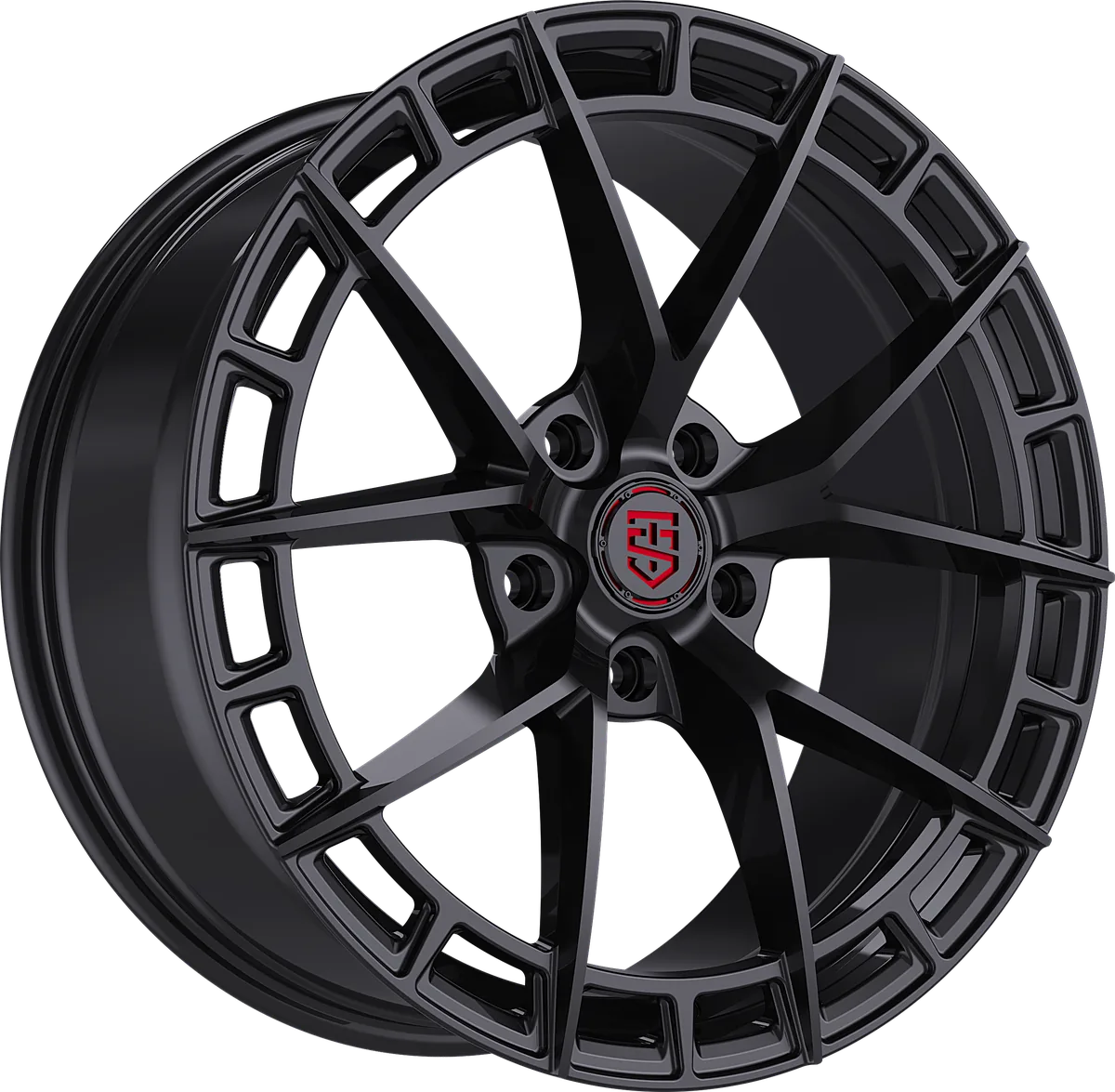

504B
Gloss Black
High-gloss black with a red-accented multi-piece center-cap.
A high-gloss black finish over a wide-open concave 5- or 6-spoke face gives the 504B a bold, aggressive stance, finished with a red-accented multi-piece center-cap built for easy customization. Part of the TIS Motorsports line.
Available Sizes & MAP
| Size | Offset | MAP |
|---|---|---|
| 17×7.5 | +35 | $290 |
| 18×8 | +35 | $330 |
| 20×8.5 | +35 | $410 |
| 22×10 | +10 | $510 |
Full Specifications504B · 16 part numbers
| Part Number | Style | Size | Lugs | Bolt Pattern | Offset | Spacing | Hub | Lode | Weight | Cap |
|---|---|---|---|---|---|---|---|---|---|---|
| 504B-7756535 | 504B | 17X7.5 | 5 | 5X4.50 | +35 | 5.75 | 73.1 | 1800 | 2.25 | TISMGBR-CAP |
| 504B-7754435 | 504B | 17X7.5 | 5 | 5X112 | +35 | 5.75 | 66.6 | 1800 | 2.25 | TISMGBR-CAP |
| 504B-7751235 | 504B | 17X7.5 | 5 | 5X120 | +35 | 5.75 | 73.1 | 1800 | 2.25 | TISMGBR-CAP |
| 504B-8806535 | 504B | 18X8 | 5 | 5X4.50 | +35 | 6 | 73.1 | 1800 | 2.49 | TISMGBR-CAP |
| 504B-8804435 | 504B | 18X8 | 5 | 5X112 | +35 | 6 | 66.6 | 1800 | 2.49 | TISMGBR-CAP |
| 504B-8801235 | 504B | 18X8 | 5 | 5X120 | +35 | 6 | 73.1 | 1800 | 2.49 | TISMGBR-CAP |
| 504B-2856535 | 504B | 20X8.5 | 5 | 5X4.50 | +35 | 6.25 | 73.1 | 1800 | 0.4 | TISMGBR-CAP |
| 504B-2854435 | 504B | 20X8.5 | 5 | 5X112 | +35 | 6.25 | 66.6 | 1800 | 0.4 | TISMGBR-CAP |
| 504B-2851235 | 504B | 20X8.5 | 5 | 5X120 | +35 | 6.25 | 73.1 | 1800 | 0.4 | TISMGBR-CAP |
| 504B-2208324 | 504B | 22X10 | 6 | 6X5.50 | +24 | 6.44 | 106.2 | 2200 | 41 | TISMGBR-CAP |
| 504B-2206324 | 504B | 22X10 | 6 | 6X135 | +24 | 6.44 | 87.1 | 2200 | 41 | TISMGBR-CAP |
| 504B-2228344 | 504B | 22X12 | 6 | 6X5.50 | -44 | 4.74 | 106.2 | 2500 | 46.3 | TISMLGBR-CAP |
| 504B-2226344 | 504B | 22X12 | 6 | 6X135 | -44 | 4.74 | 87.1 | 2500 | 46.3 | TISMLGBR-CAP |
| 504B-2228944 | 504B | 22X12 | 8 | 8X180 | -44 | 4.74 | 124.3 | 3700 | 51.8 | |
| 504B-2228744 | 504B | 22X12 | 8 | 8X170 | -44 | 4.74 | 125.2 | 3700 | 51.8 | |
| 504B-2228144 | 504B | 22X12 | 8 | 8X6.50 | -44 | 4.74 | 125.2 | 3700 | 51.8 |

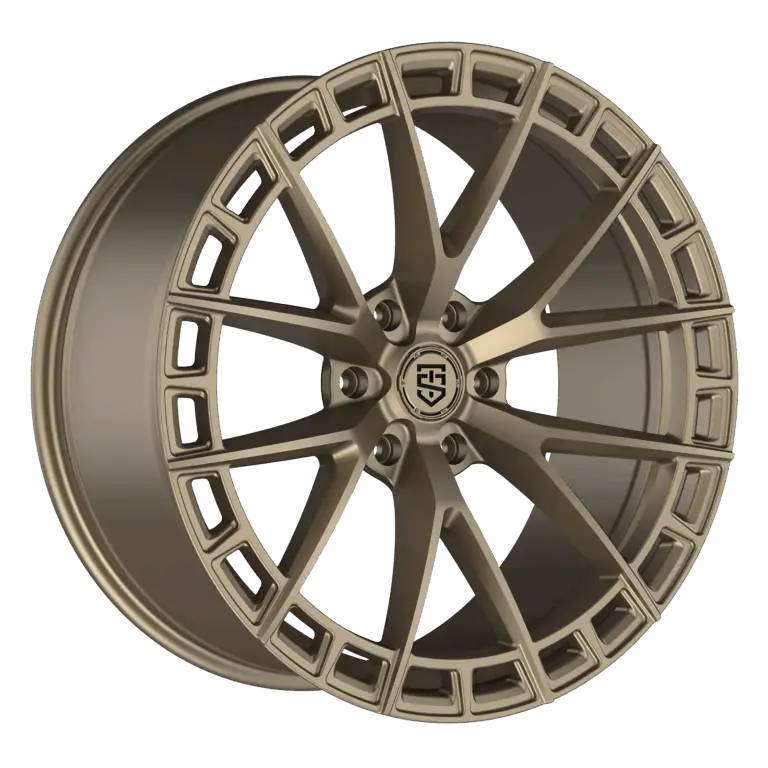

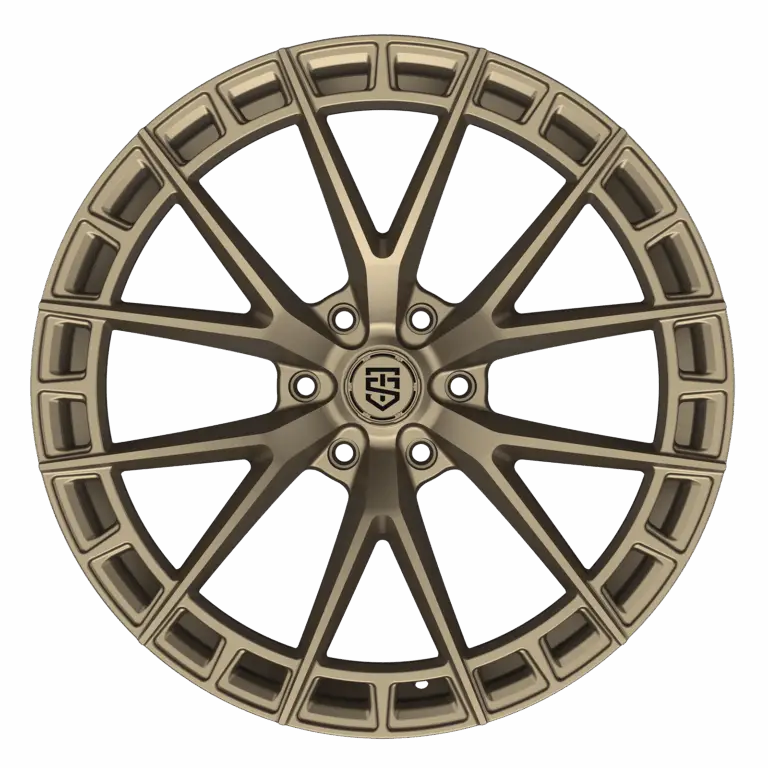

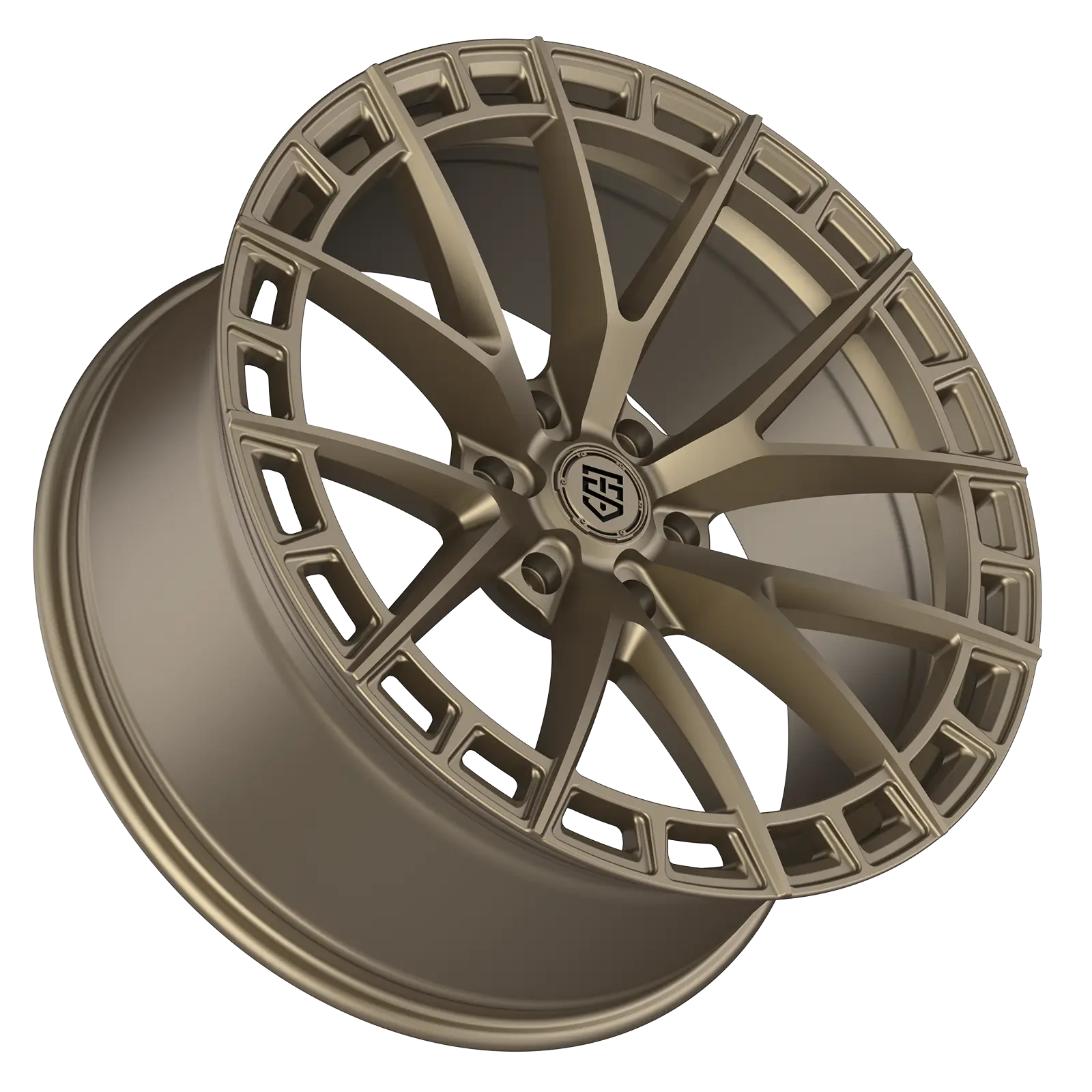

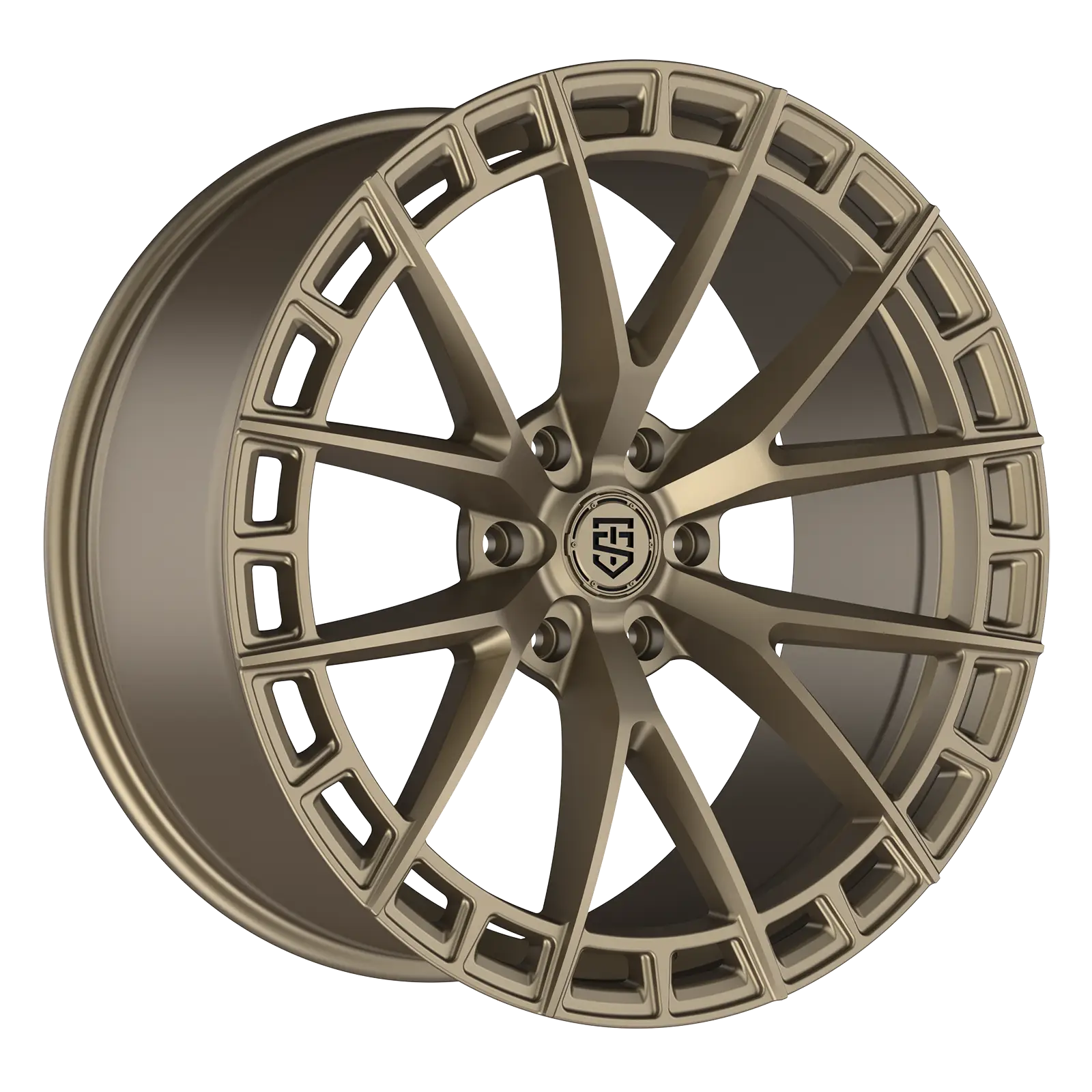

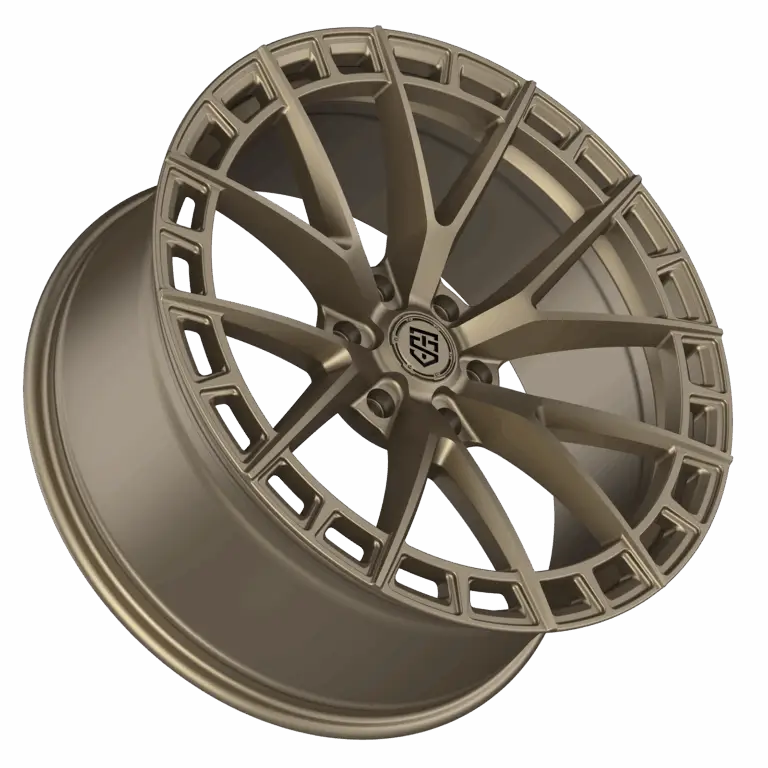

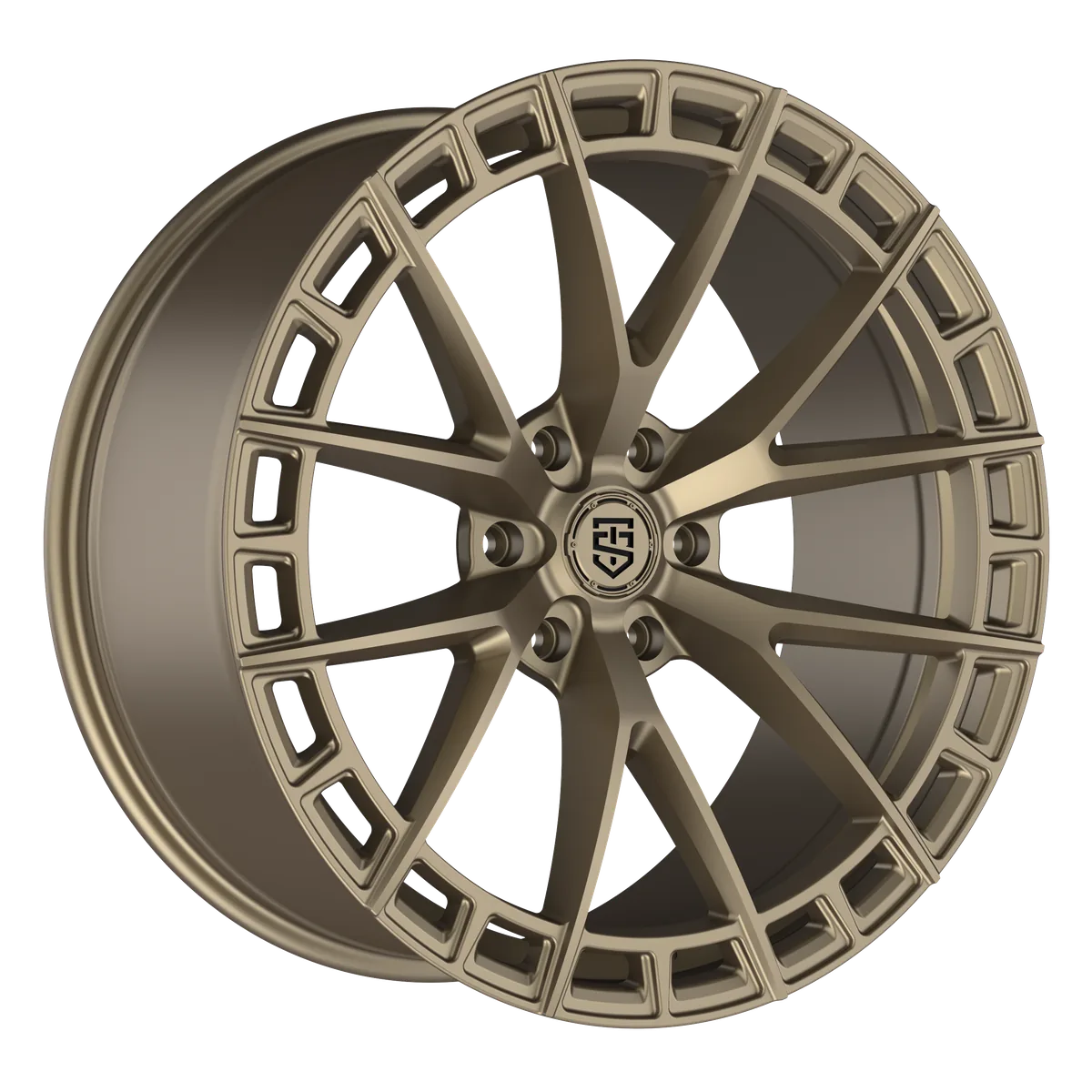

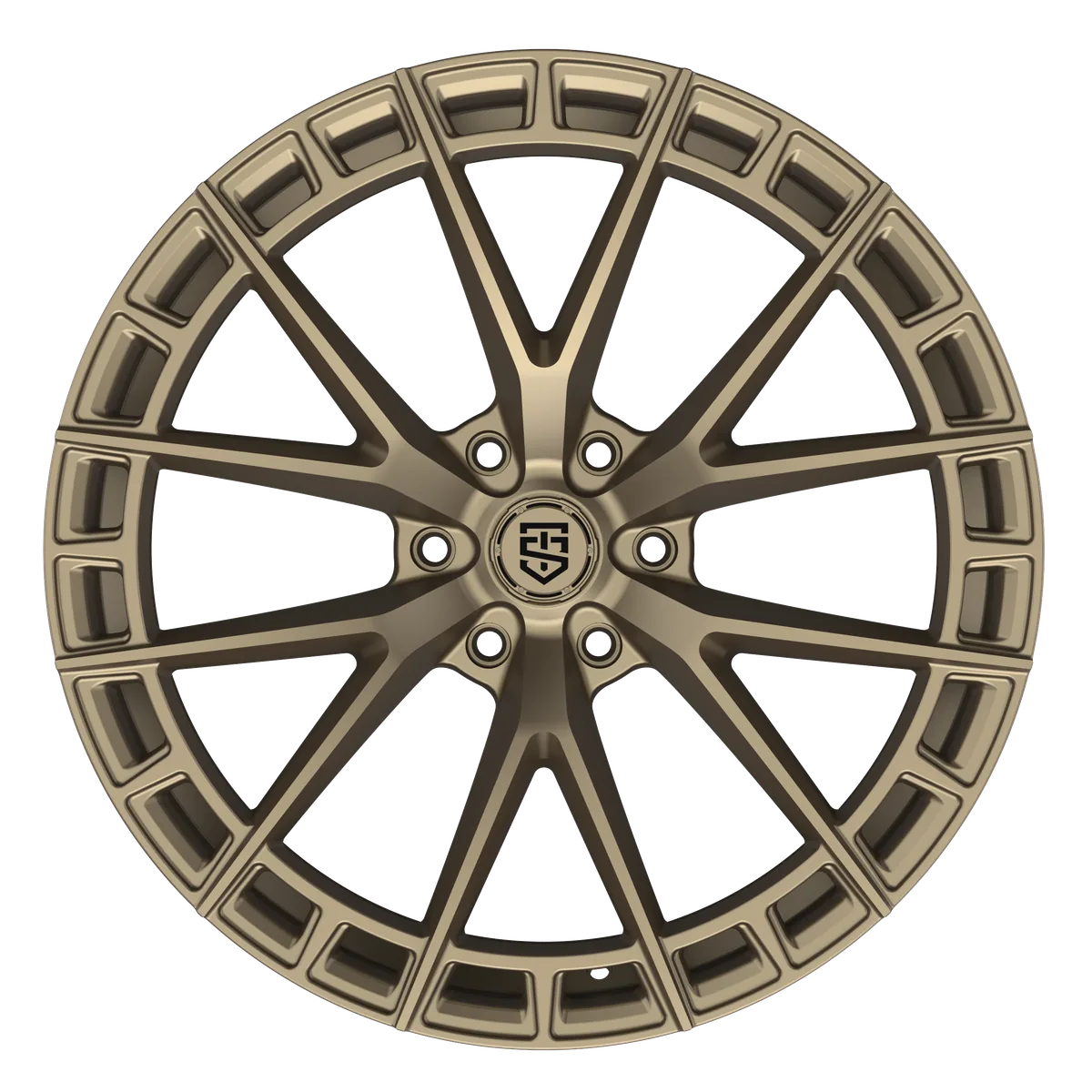

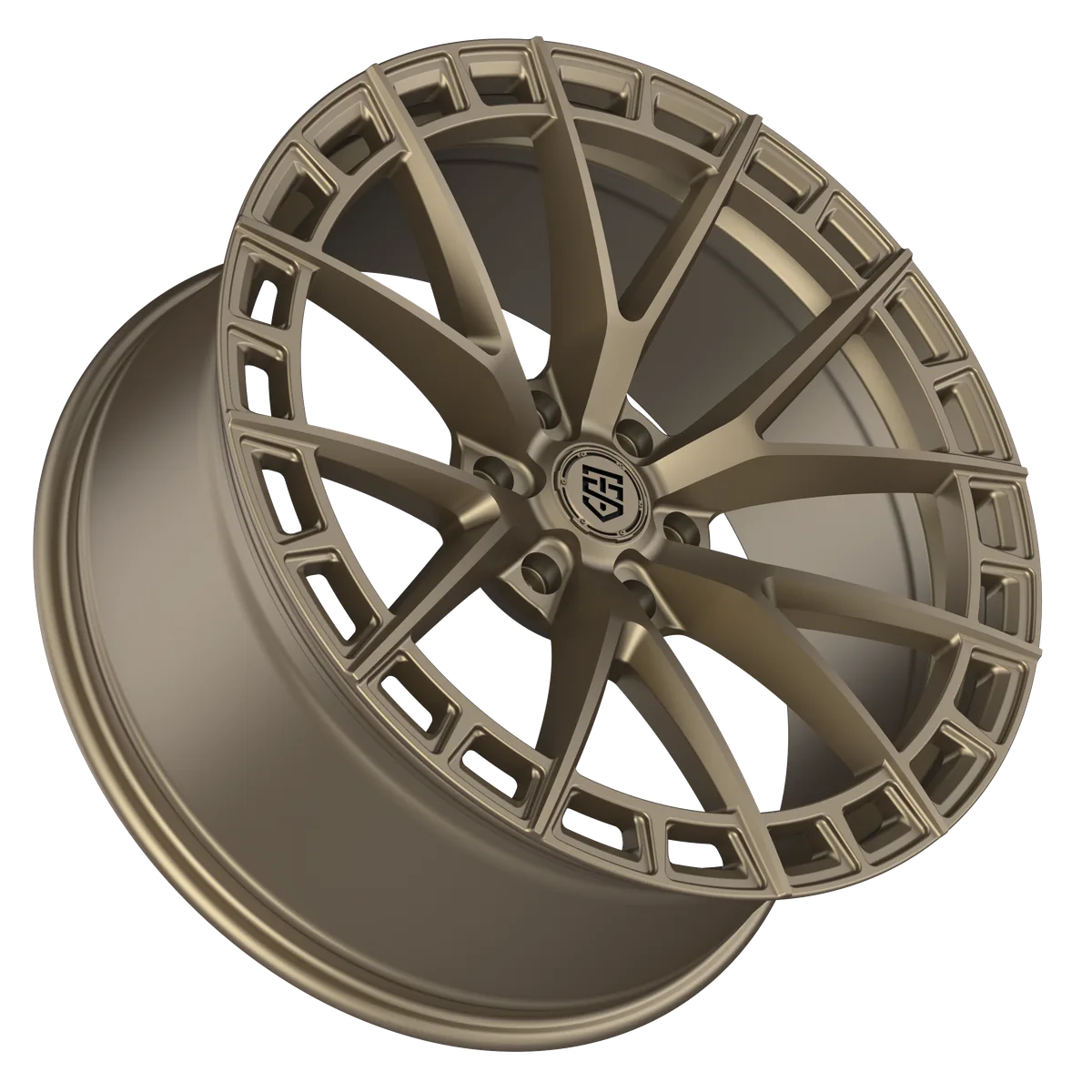

504BZ
Satin Bronze
Smooth satin bronze with a black-accented multi-piece center-cap.
A smooth satin bronze finish over the wide-open concave face gives the 504BZ a warm, custom-shop tone that reads bold from across the lot, finished with a black-accented multi-piece center-cap. TIS Motorsports performance build, designed for easy customization.
Available Sizes & MAP
| Size | Offset | MAP |
|---|---|---|
| 22×10 | +10 | $510 |
Full Specifications504BZ · 7 part numbers
| Part Number | Style | Size | Lugs | Bolt Pattern | Offset | Spacing | Hub | Lode | Weight | Cap |
|---|---|---|---|---|---|---|---|---|---|---|
| 504BZ-2208324 | 504BZ | 22X10 | 6 | 6X5.50 | +24 | 6.44 | 106.2 | 2200 | 41 | TISMSBGB-CAP |
| 504BZ-2206324 | 504BZ | 22X10 | 6 | 6X135 | +24 | 6.44 | 87.1 | 2200 | 41 | TISMSBGB-CAP |
| 504BZ-2228344 | 504BZ | 22X12 | 6 | 6X5.50 | -44 | 4.74 | 106.2 | 2500 | 46.3 | TISMLSBGB-CAP |
| 504BZ-2226344 | 504BZ | 22X12 | 6 | 6X135 | -44 | 4.74 | 87.1 | 2500 | 46.3 | TISMLSBGB-CAP |
| 504BZ-2228944 | 504BZ | 22X12 | 8 | 8X180 | -44 | 4.74 | 124.3 | 3700 | 51.8 | |
| 504BZ-2228744 | 504BZ | 22X12 | 8 | 8X170 | -44 | 4.74 | 125.2 | 3700 | 51.8 | |
| 504BZ-2228144 | 504BZ | 22X12 | 8 | 8X6.50 | -44 | 4.74 | 125.2 | 3700 | 51.8 |

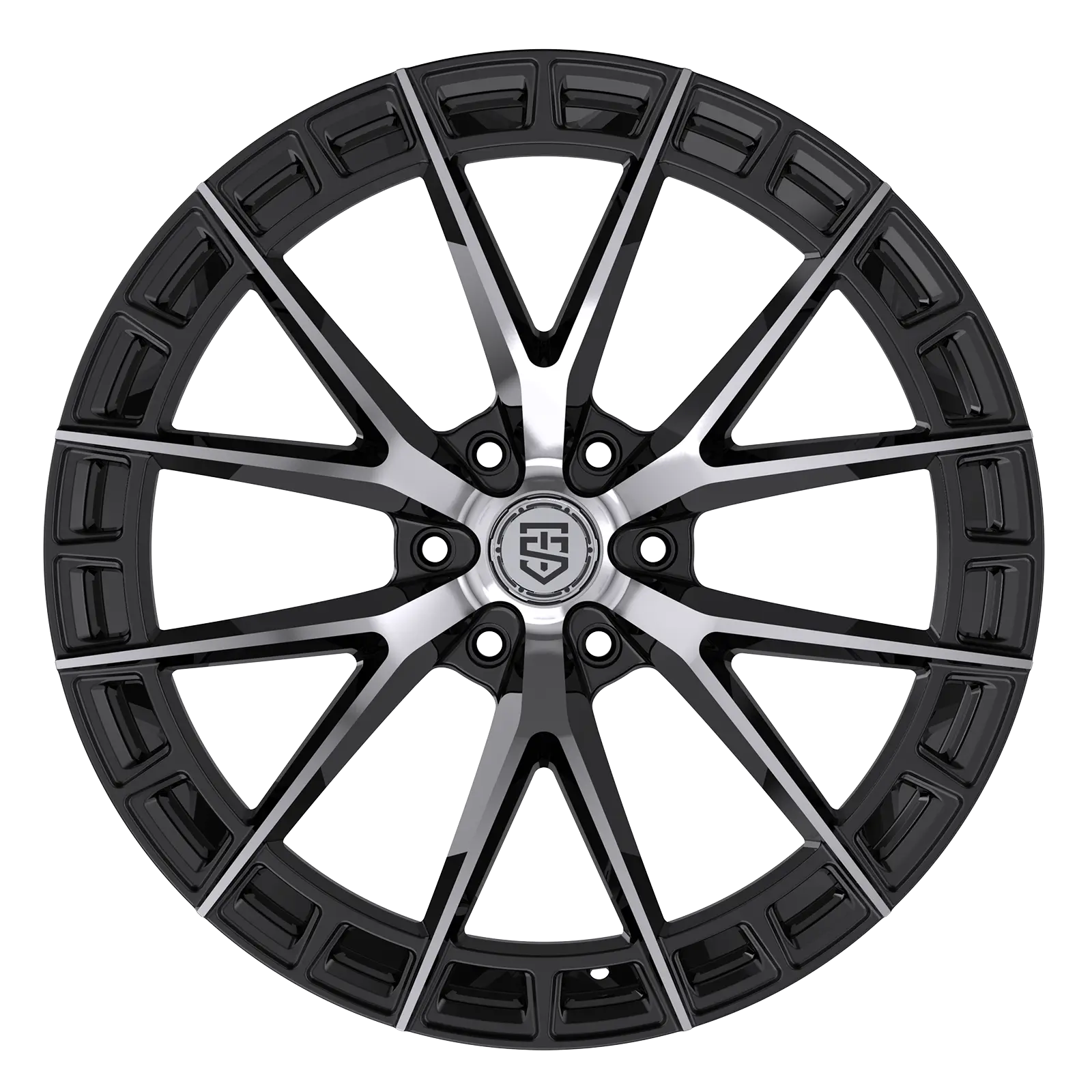

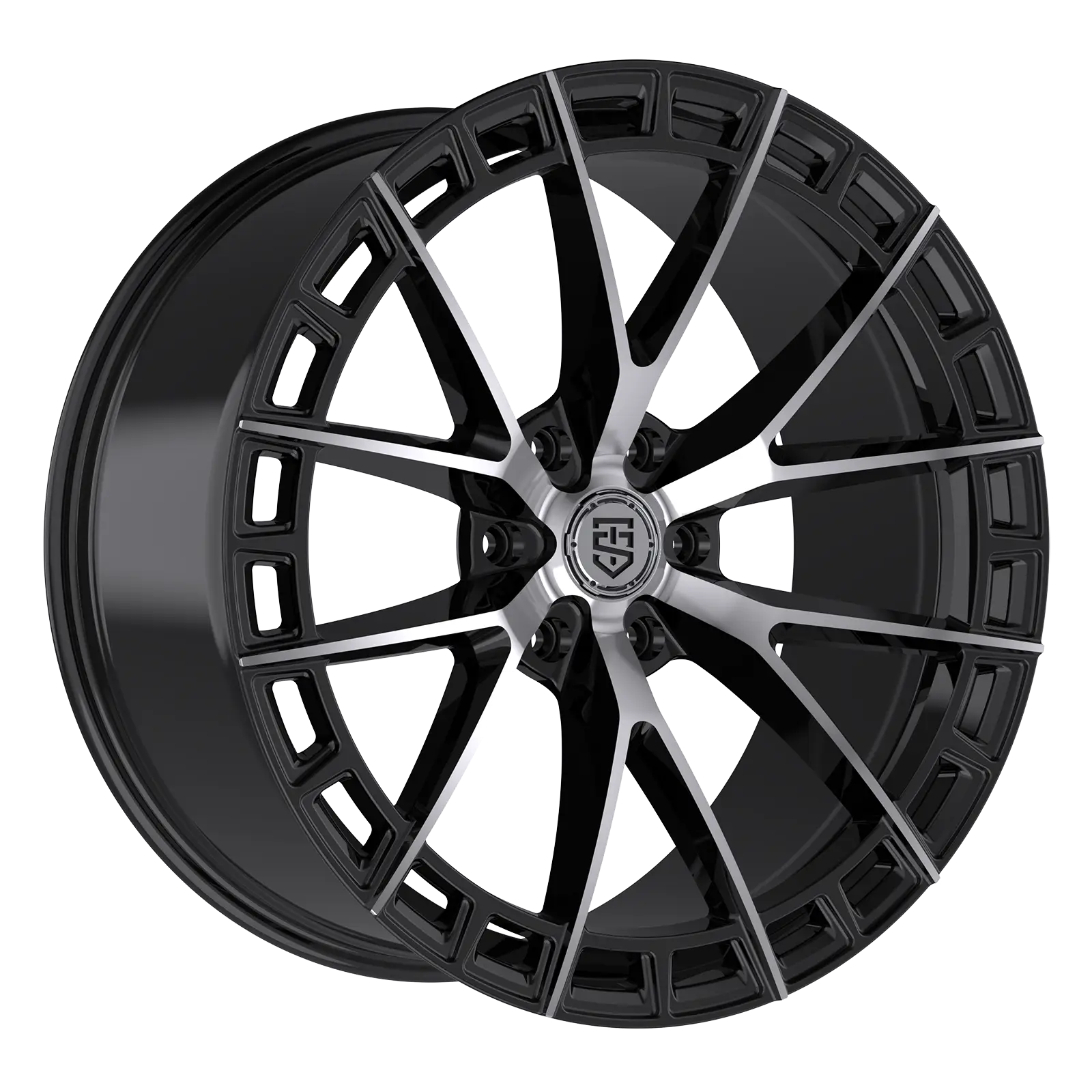

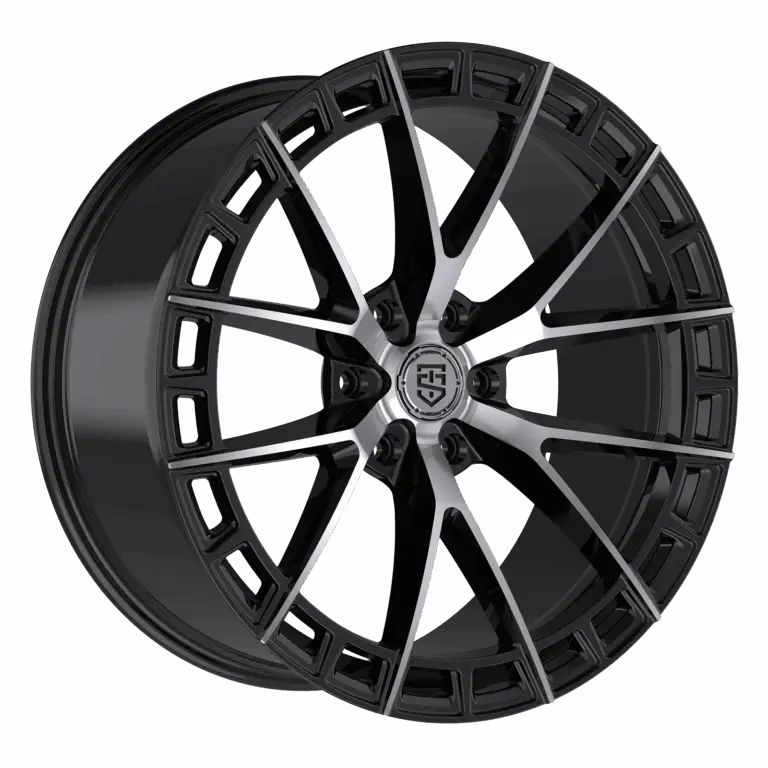

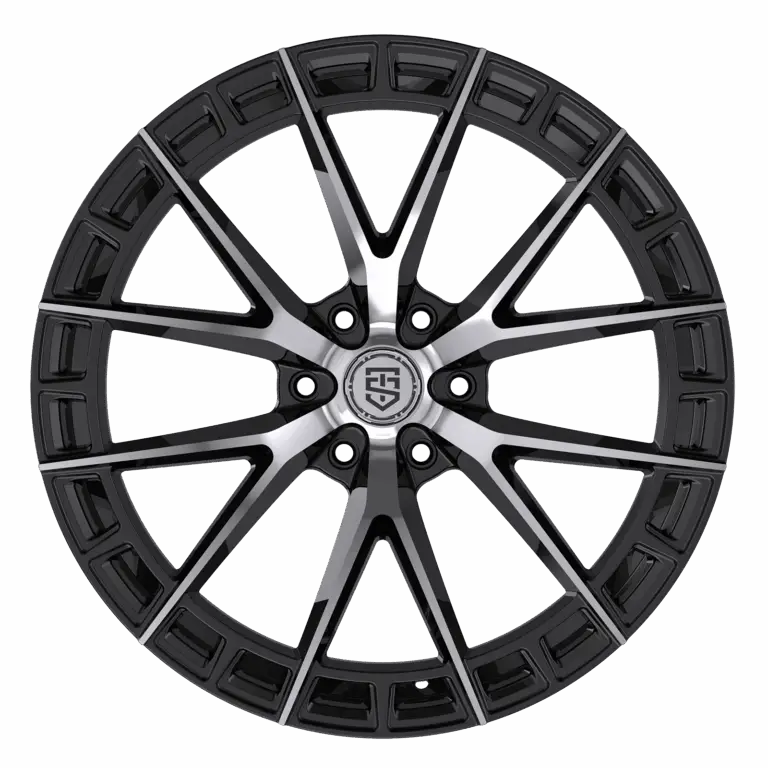

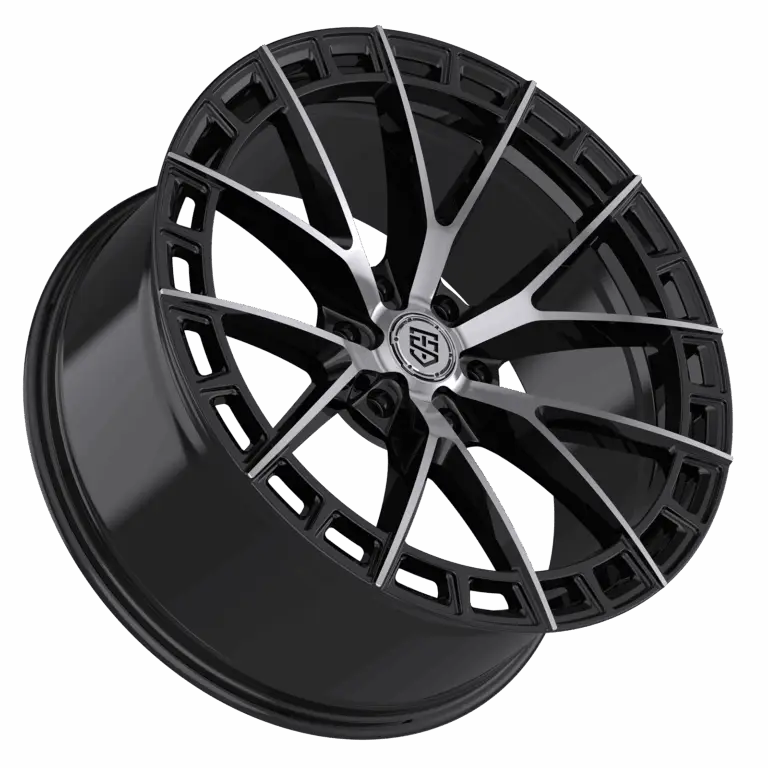

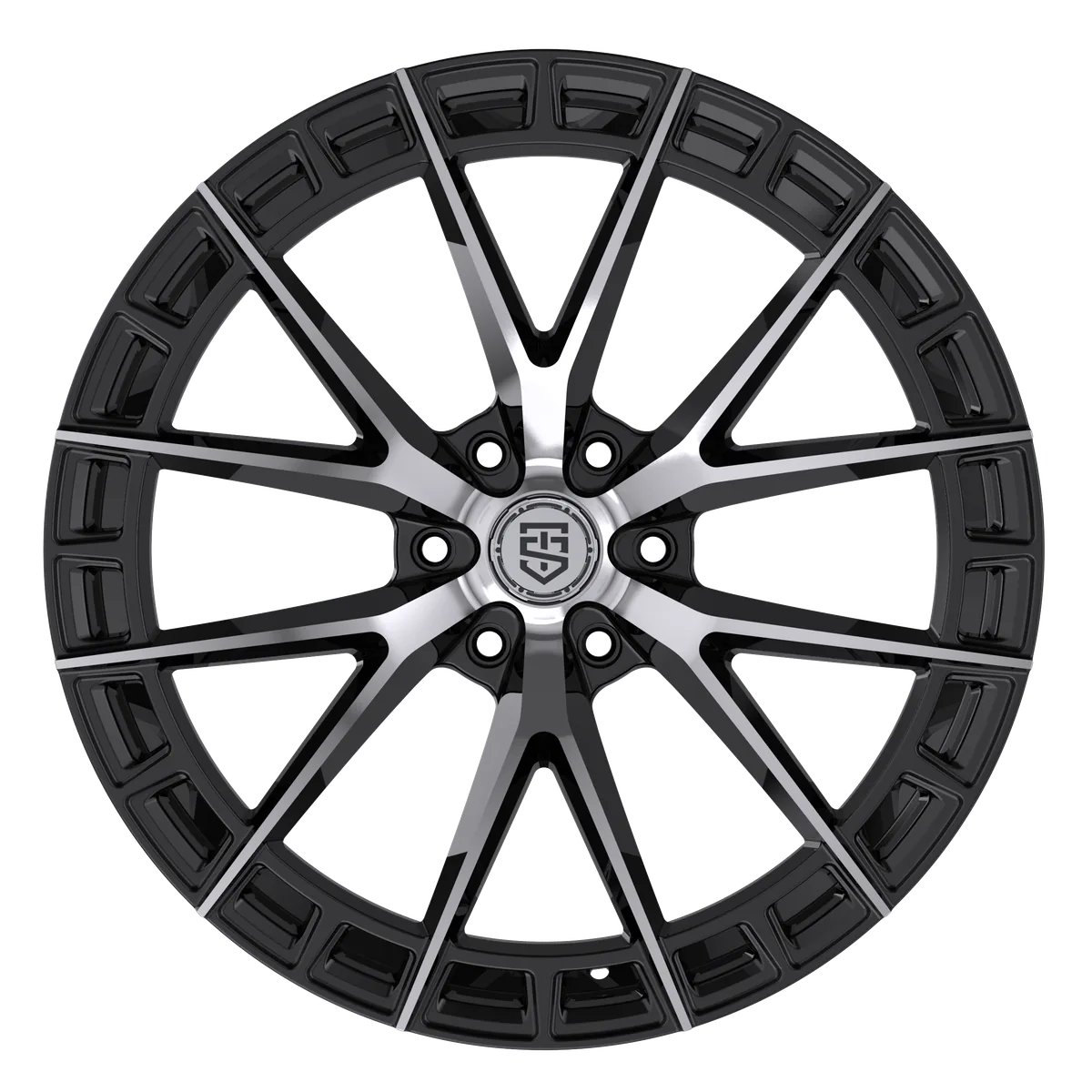

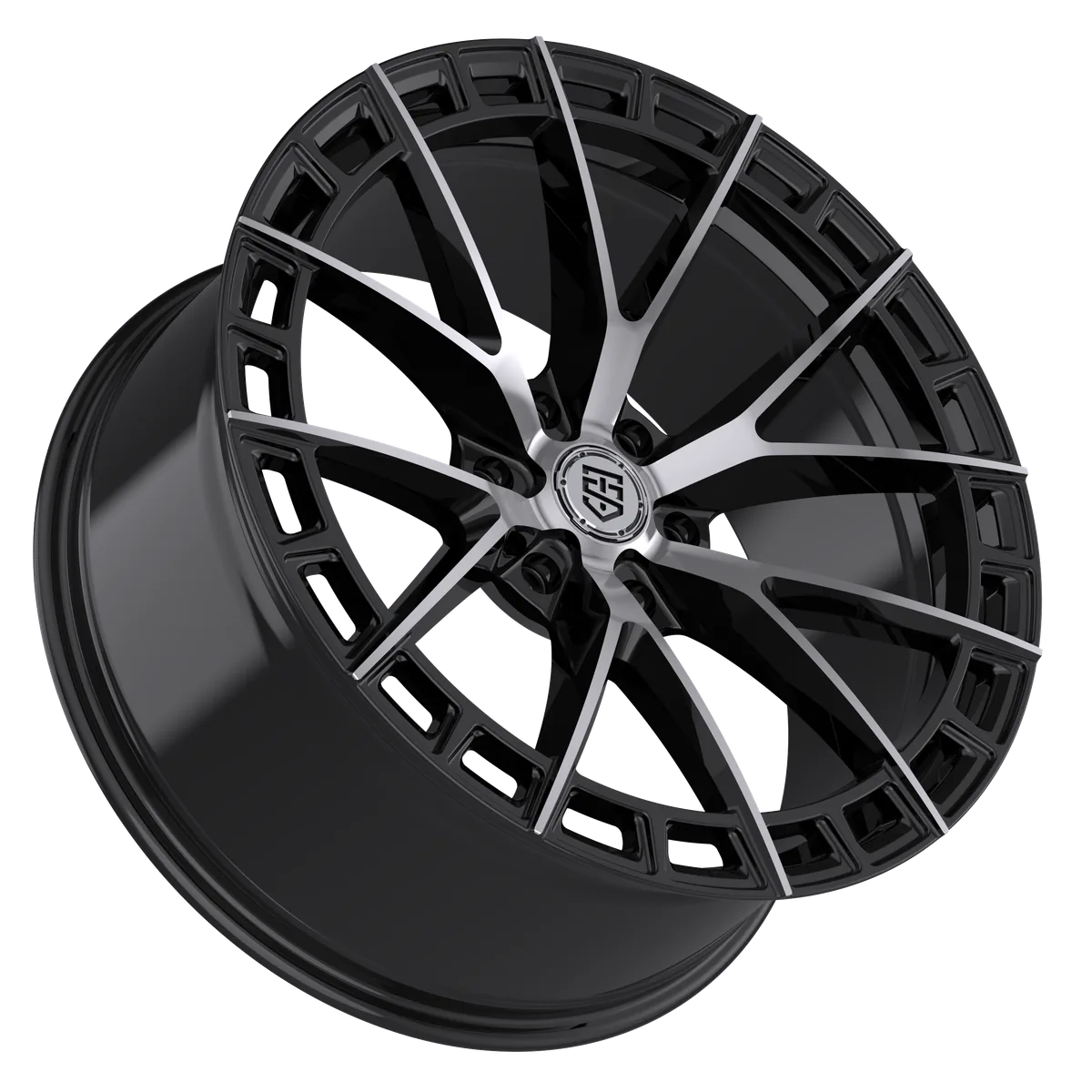

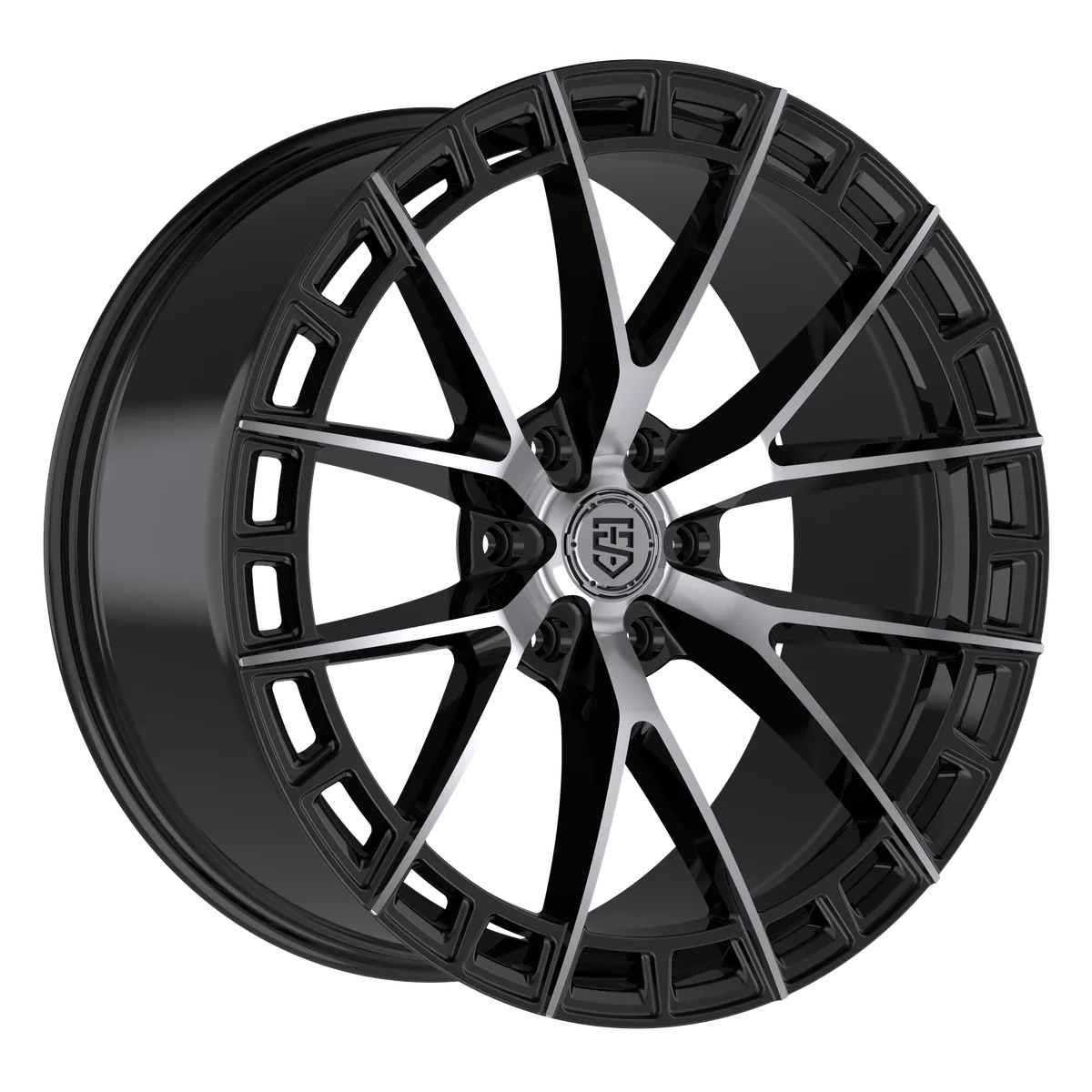

504MB
Machined Black
Gloss black with a mirror-machined face and black-accented cap.
A high-gloss black finish with a mirror-machined face brings bright, raw metal across the wide-open concave spokes, finished with a black-accented multi-piece center-cap. TIS Motorsports performance build — a bolder, more reflective take, designed for easy customization.
Available Sizes & MAP
| Size | Offset | MAP |
|---|---|---|
| 22×10 | +10 | $510 |
Full Specifications504MB · 7 part numbers
| Part Number | Style | Size | Lugs | Bolt Pattern | Offset | Spacing | Hub | Lode | Weight | Cap |
|---|---|---|---|---|---|---|---|---|---|---|
| 504MB-2208324 | 504MB | 22X10 | 6 | 6X5.50 | +24 | 6.44 | 106.2 | 2200 | 41 | TISMCGB-CAP |
| 504MB-2206324 | 504MB | 22X10 | 6 | 6X135 | +24 | 6.44 | 87.1 | 2200 | 41 | TISMCGB-CAP |
| 504MB-2228344 | 504MB | 22X12 | 6 | 6X5.50 | -44 | 4.74 | 106.2 | 2500 | 46.3 | TISMLCGB-CAP |
| 504MB-2226344 | 504MB | 22X12 | 6 | 6X135 | -44 | 4.74 | 87.1 | 2500 | 46.3 | TISMLCGB-CAP |
| 504MB-2228944 | 504MB | 22X12 | 8 | 8X180 | -44 | 4.74 | 124.3 | 3700 | 51.8 | |
| 504MB-2228744 | 504MB | 22X12 | 8 | 8X170 | -44 | 4.74 | 125.2 | 3700 | 51.8 | |
| 504MB-2228144 | 504MB | 22X12 | 8 | 8X6.50 | -44 | 4.74 | 125.2 | 3700 | 51.8 |

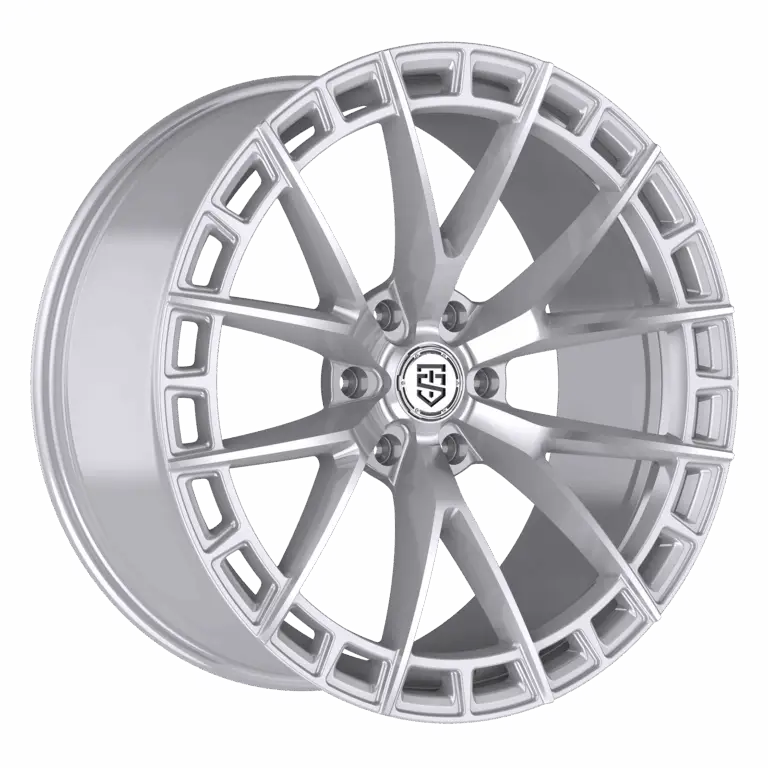

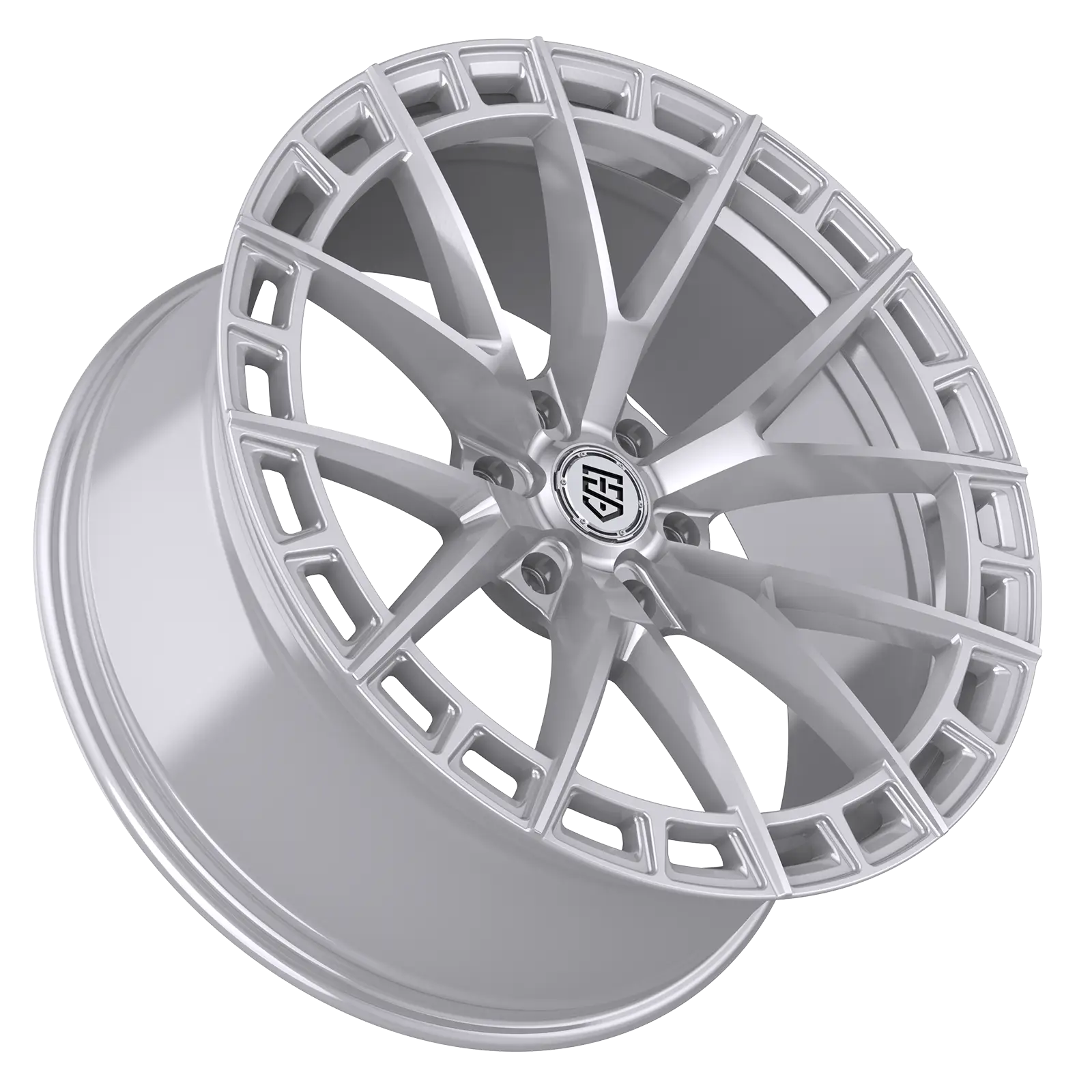

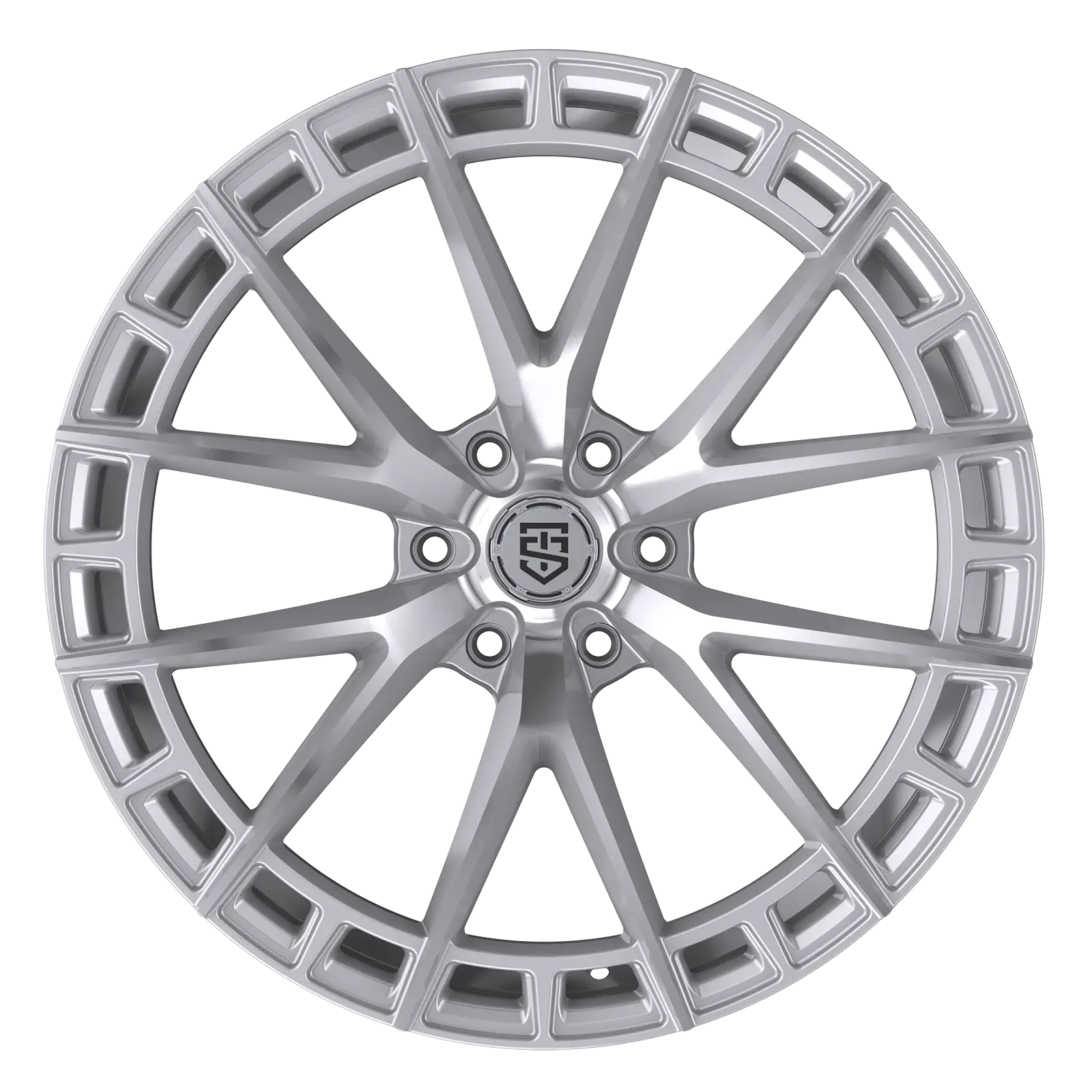

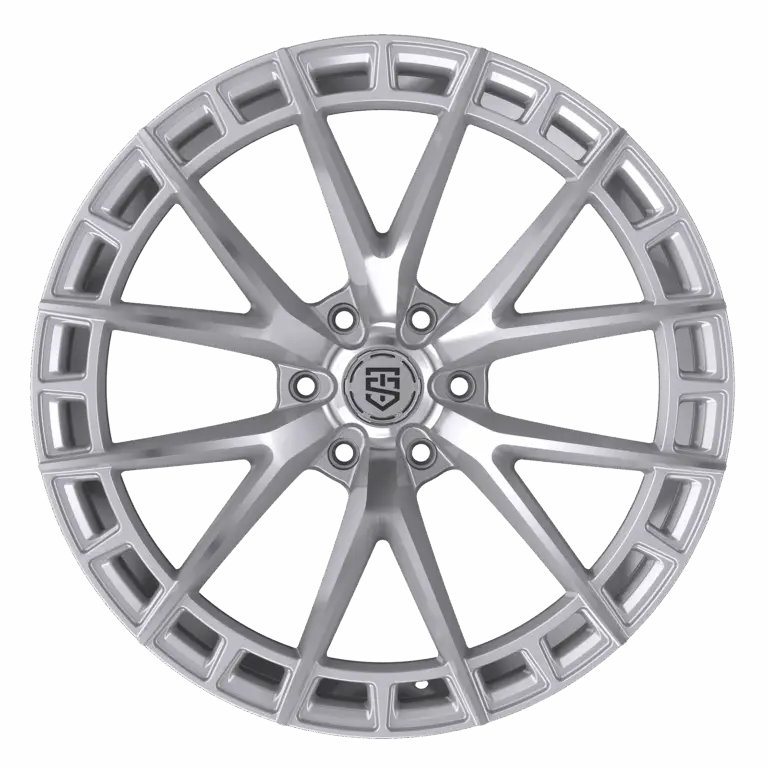

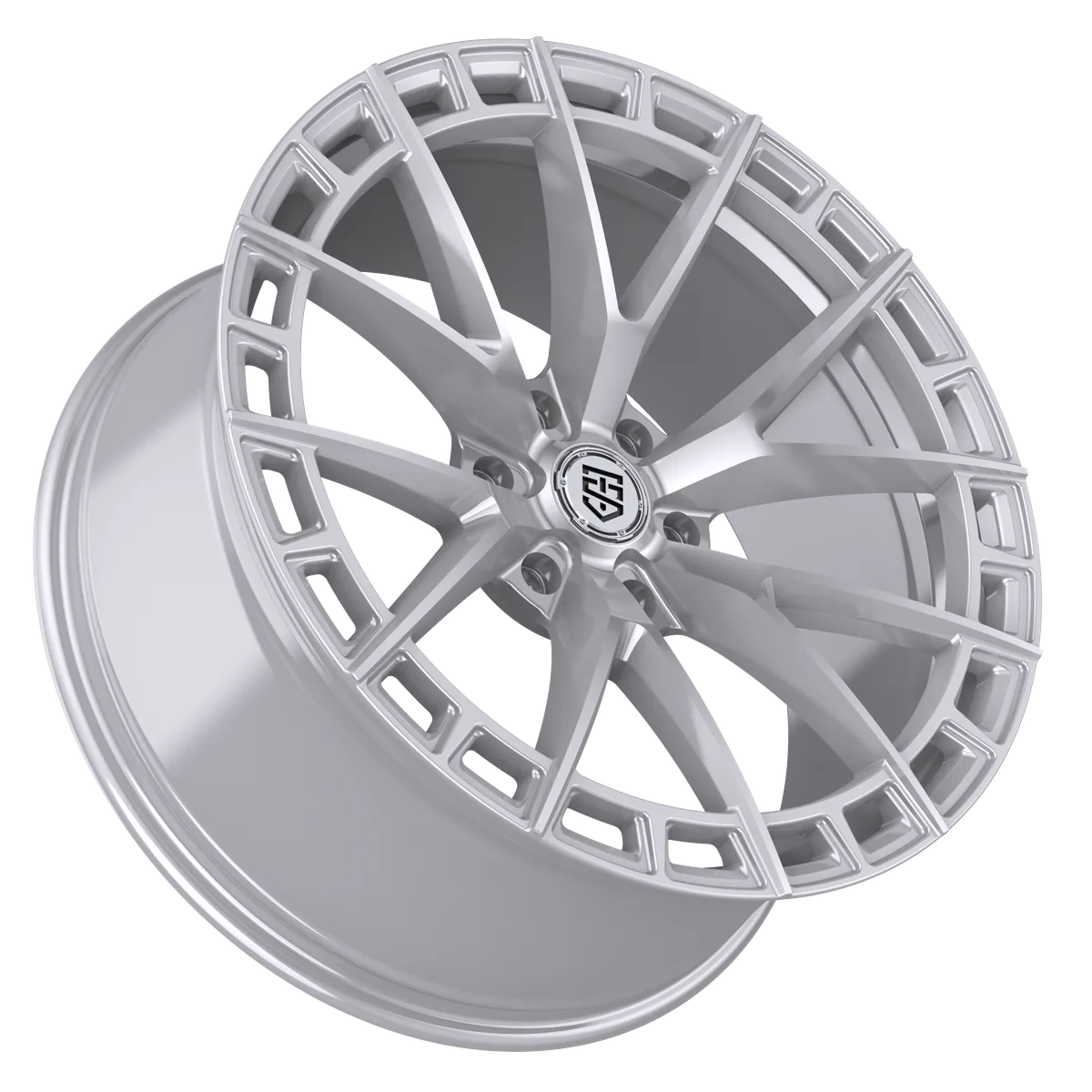

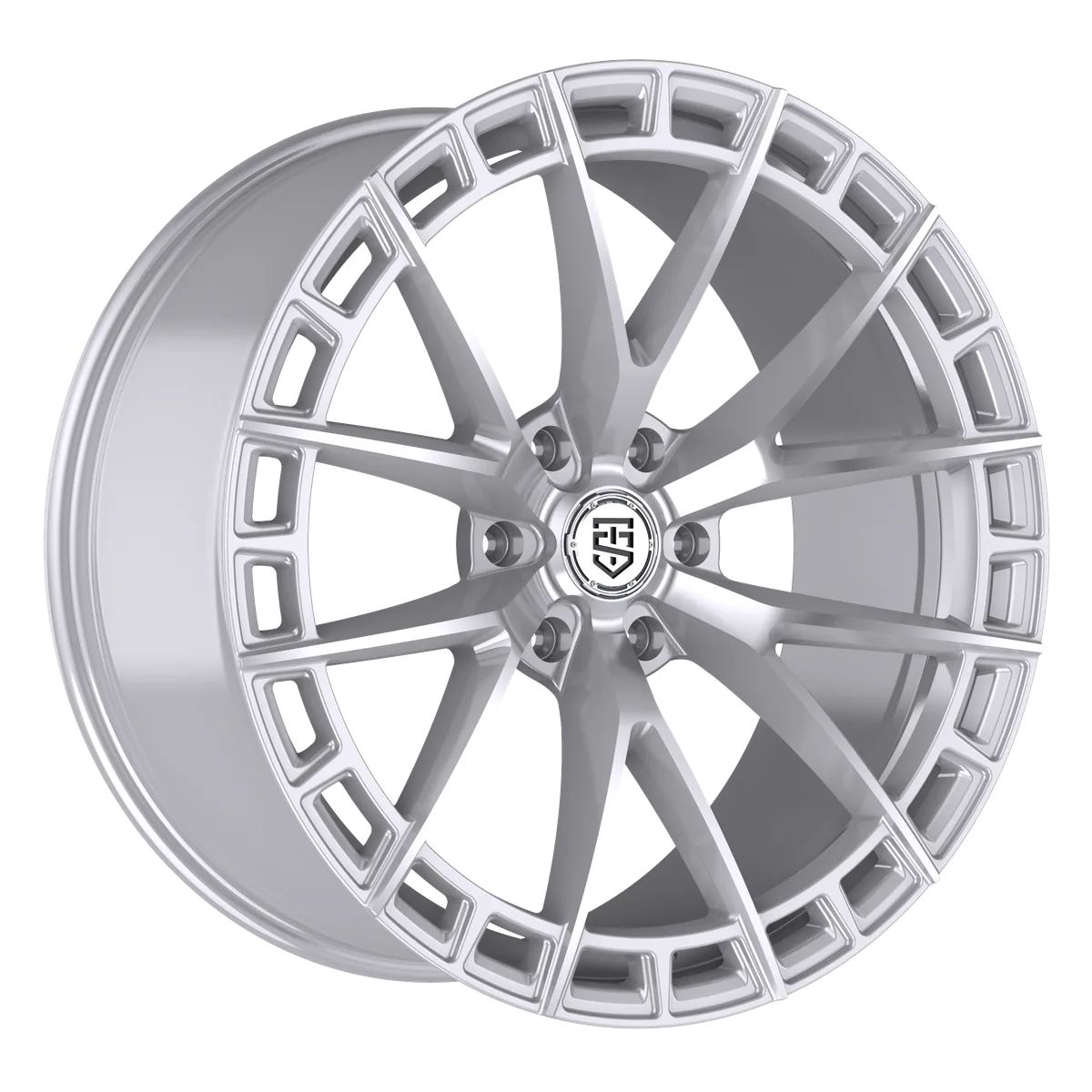

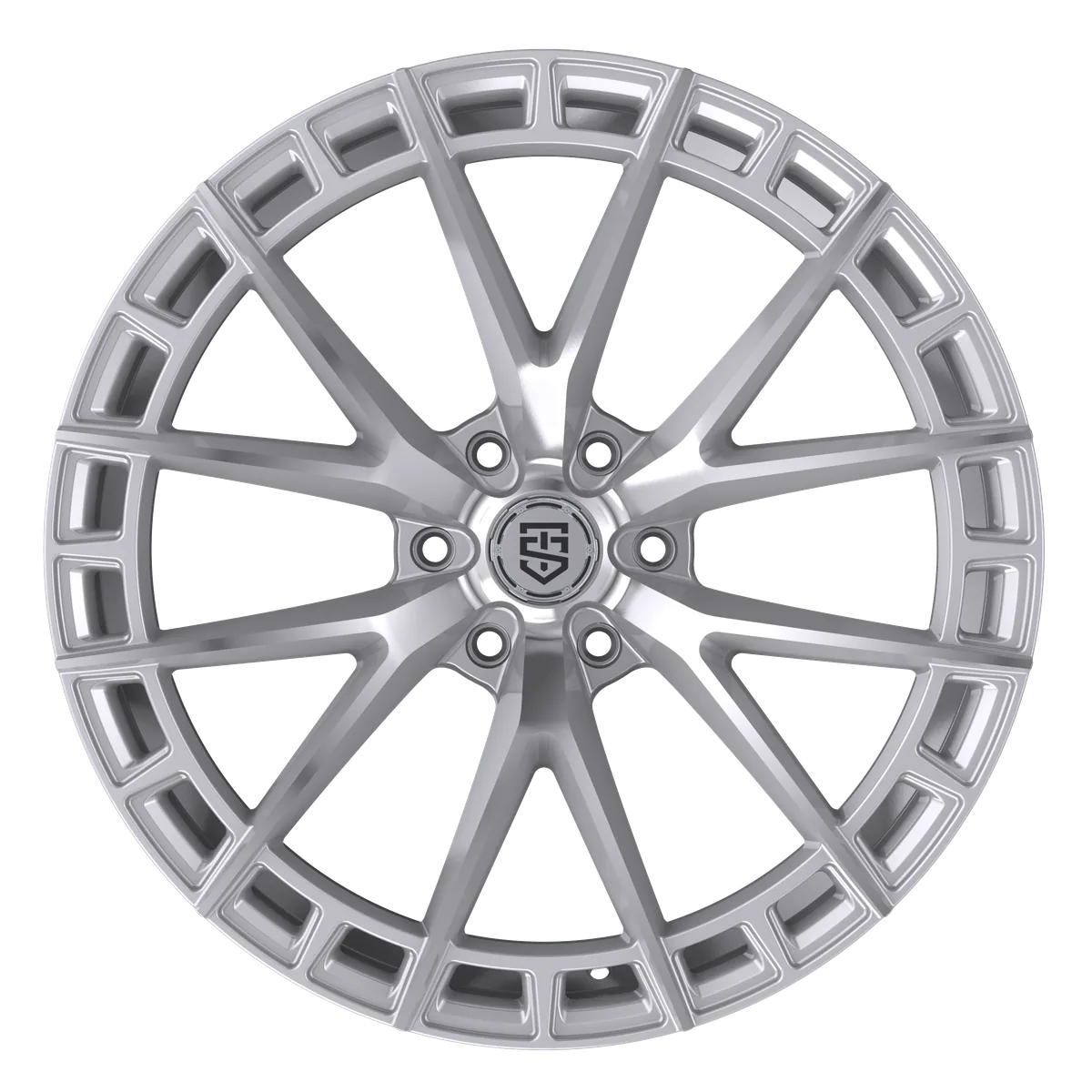

504MS
Machined Silver
Gloss silver with a mirror-machined face and black-accented cap.
A high-gloss silver finish with a mirror-machined face gives the 504MS a bright, technical shine across the wide-open concave face, finished with a black-accented multi-piece center-cap. TIS Motorsports performance build, designed for easy customization.
Available Sizes & MAP
| Size | Offset | MAP |
|---|---|---|
| 22×10 | +10 | $510 |
Full Specifications504MS · 2 part numbers
| Part Number | Style | Size | Lugs | Bolt Pattern | Offset | Spacing | Hub | Lode | Weight | Cap |
|---|---|---|---|---|---|---|---|---|---|---|
| 504MS-2208324 | 504MS | 22X10 | 6 | 6X5.50 | +24 | 6.44 | 106.2 | 2200 | 41 | TISMSMB-CAP |
| 504MS-2206324 | 504MS | 22X10 | 6 | 6X135 | +24 | 6.44 | 87.1 | 2200 | 41 | TISMSMB-CAP |

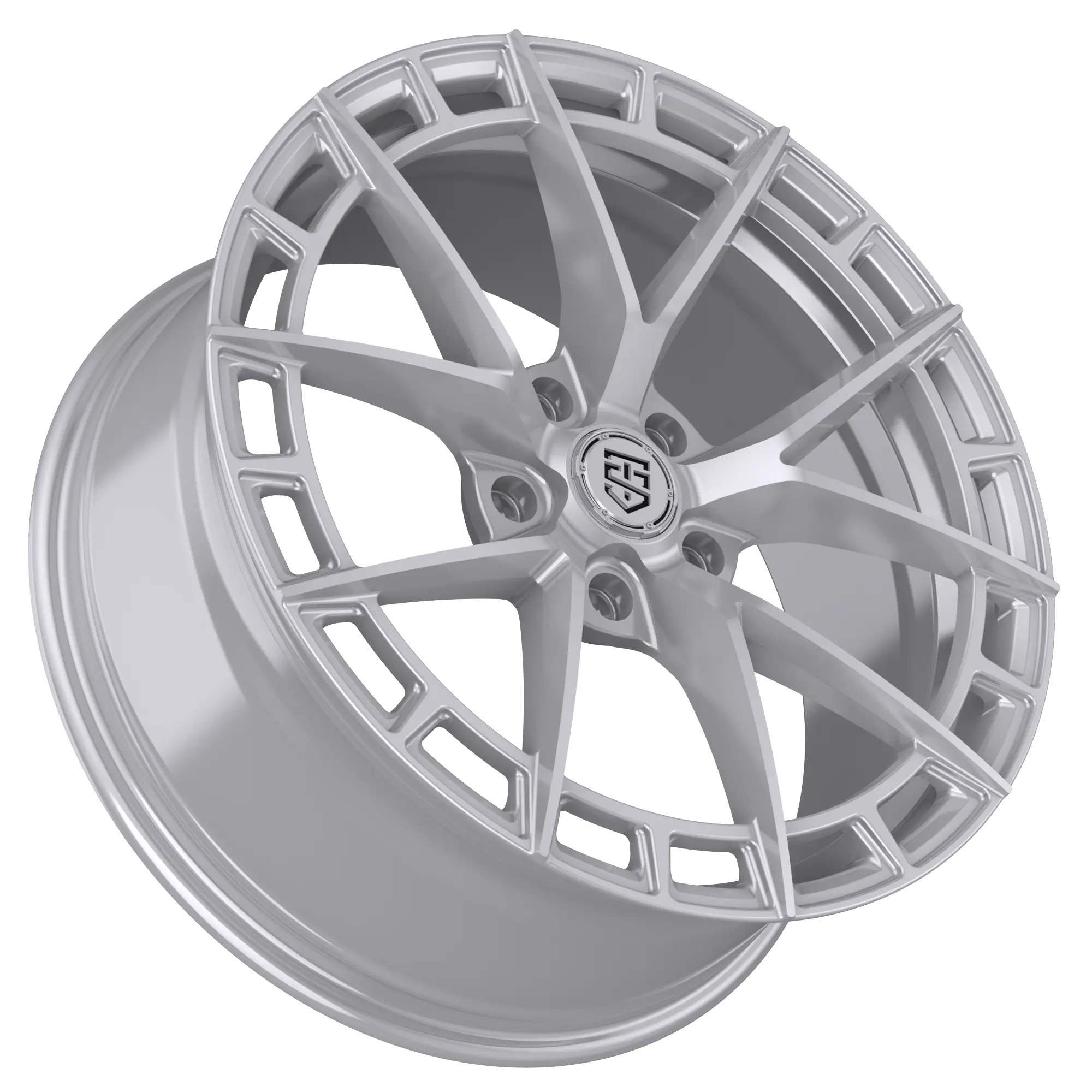

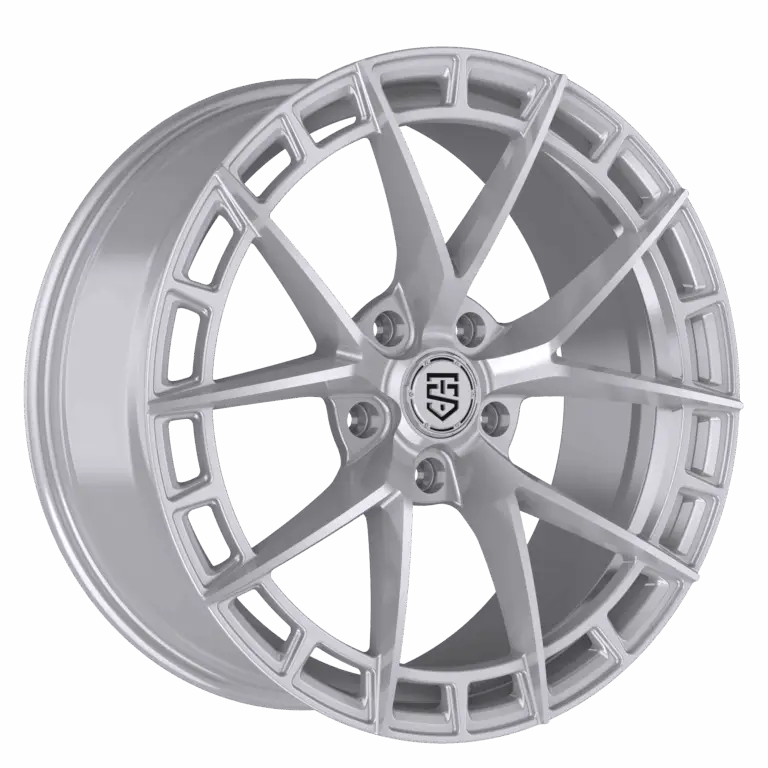

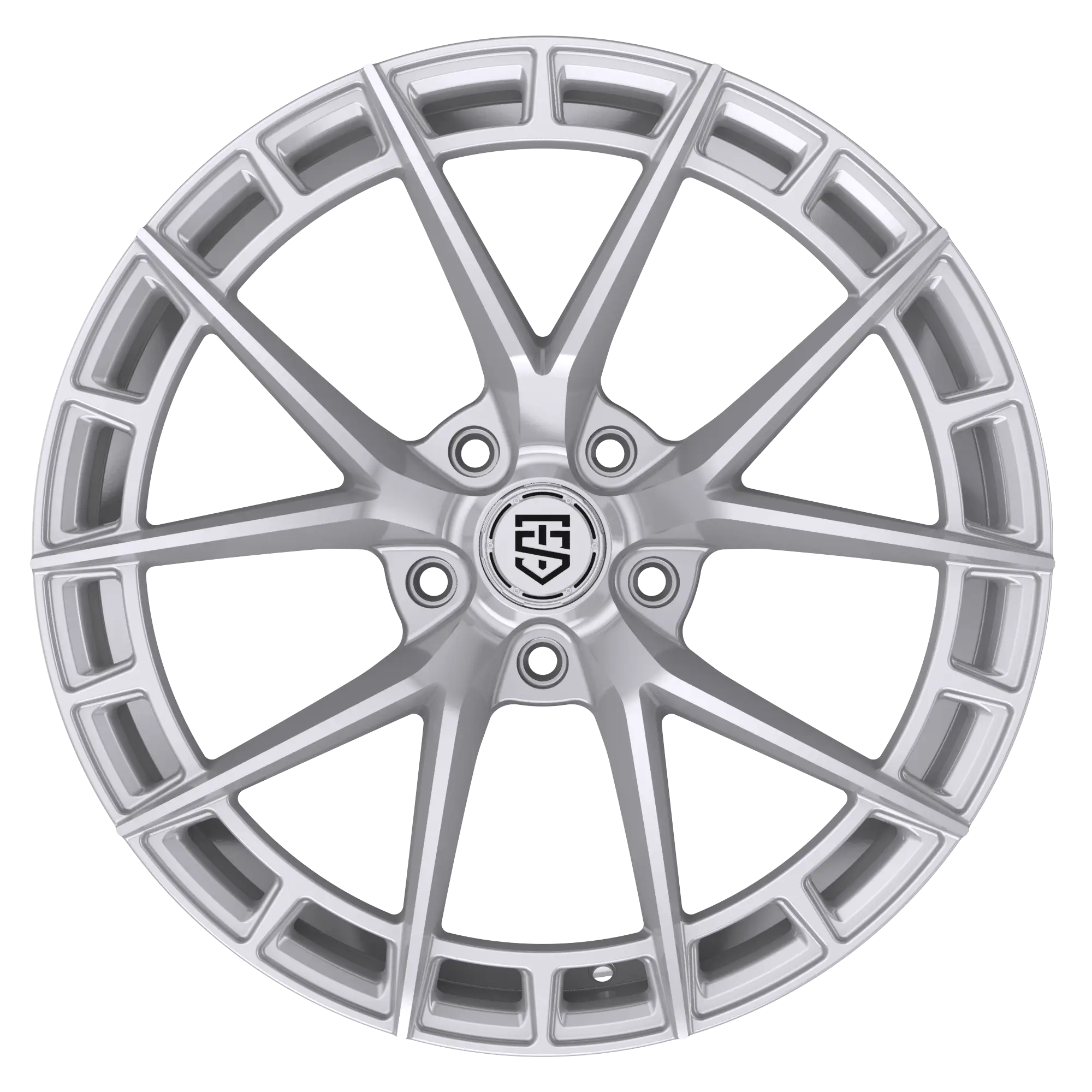

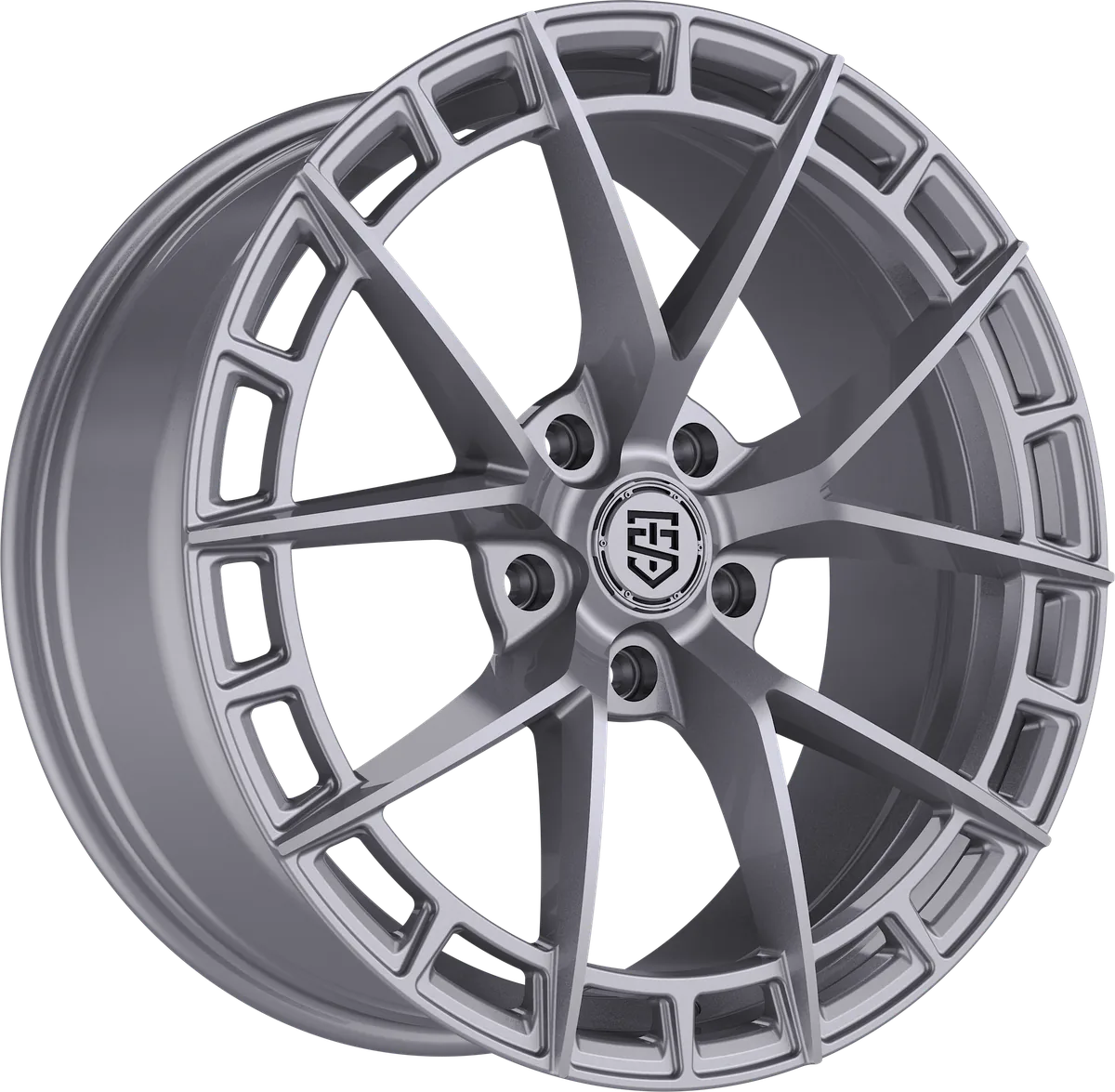

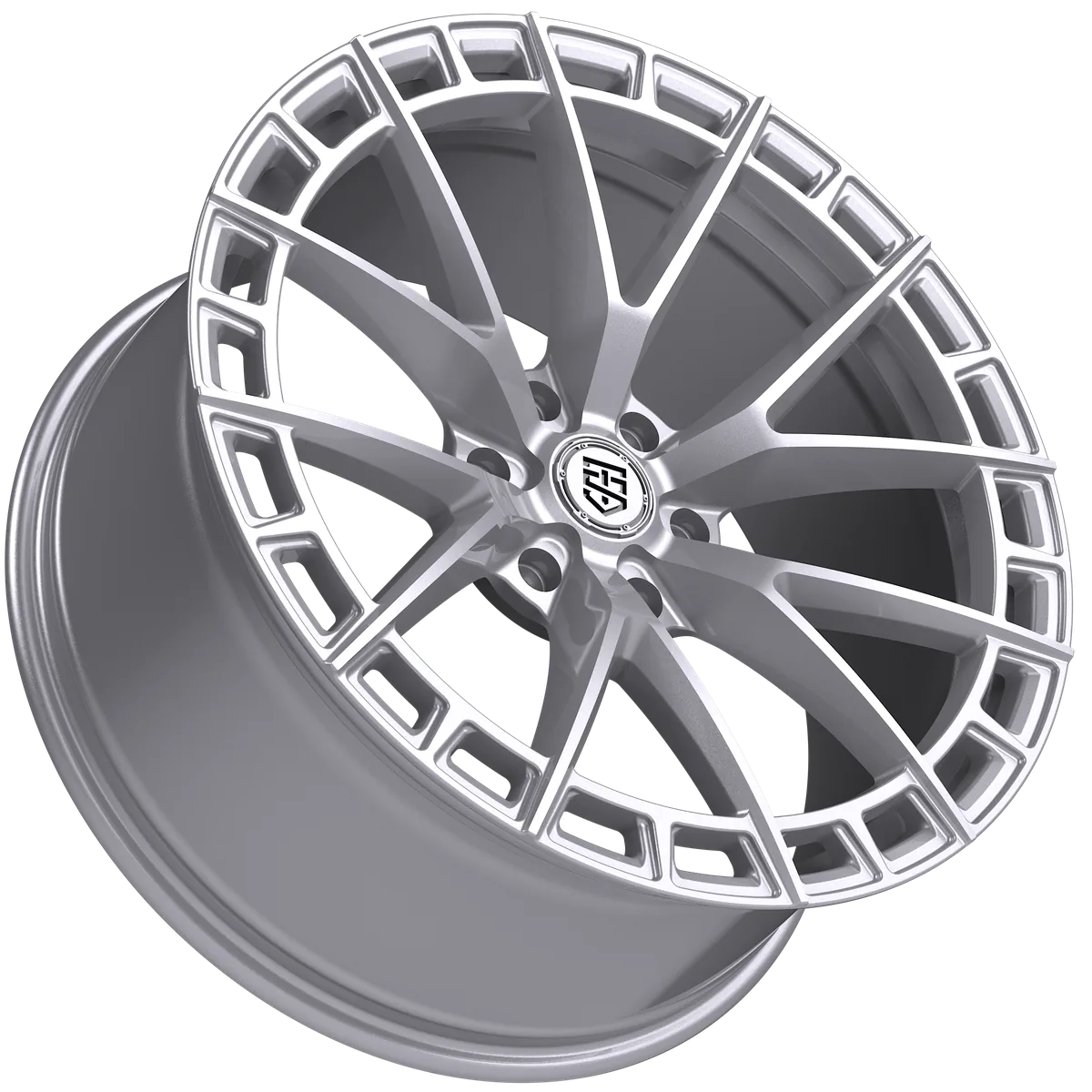

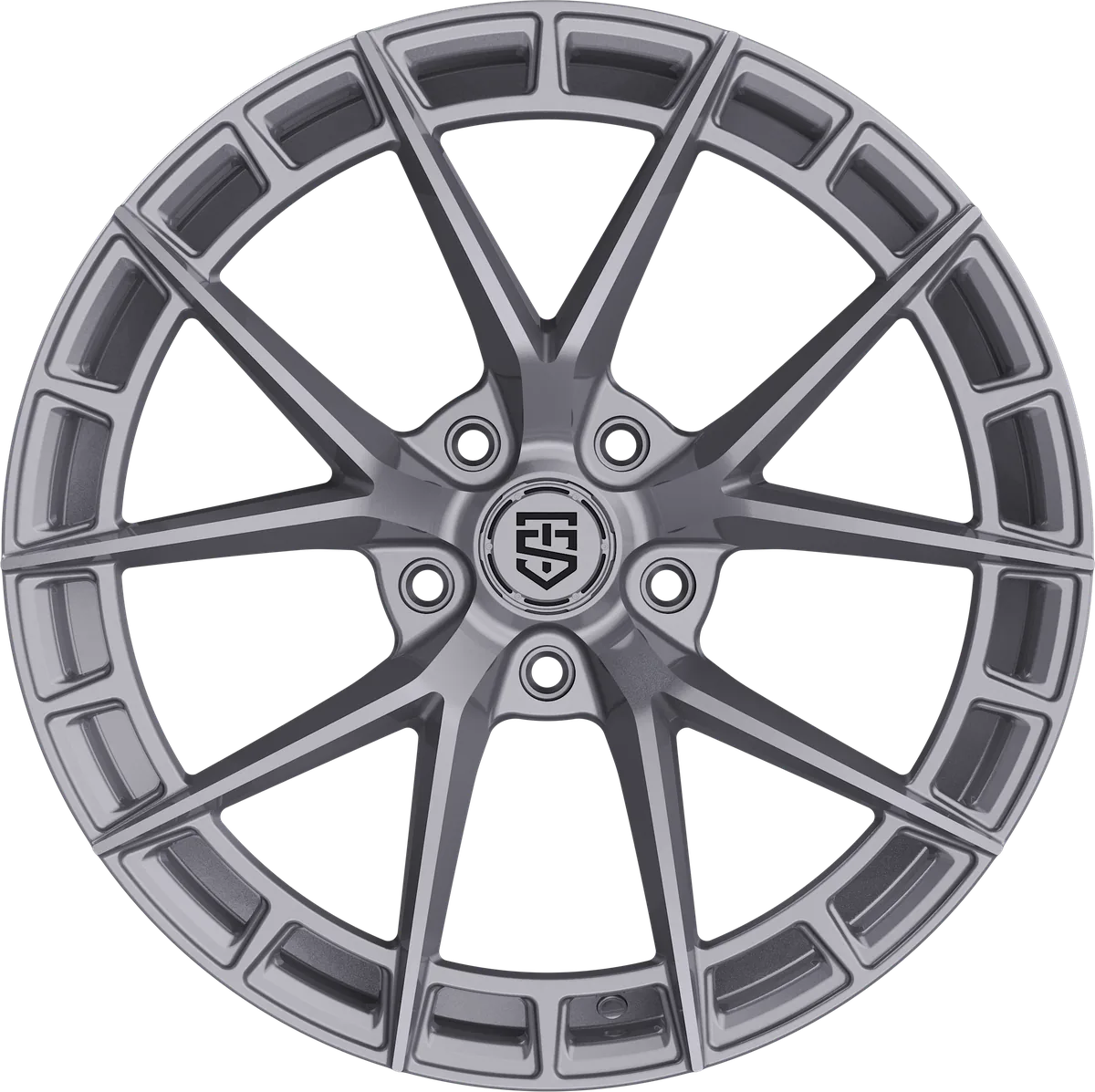

504S
Gloss Silver
High-gloss silver with a black-accented multi-piece center-cap.
A high-gloss silver finish over the wide-open concave 5- or 6-spoke face gives the 504S a clean, classic shine that complements a wide range of builds, finished with a black-accented multi-piece center-cap. TIS Motorsports performance build, designed for easy customization.
Available Sizes & MAP
| Size | Offset | MAP |
|---|---|---|
| 17×7.5 | +35 | $290 |
| 18×8 | +35 | $330 |
| 20×8.5 | +35 | $410 |
Full Specifications504S · 9 part numbers
| Part Number | Style | Size | Lugs | Bolt Pattern | Offset | Spacing | Hub | Lode | Weight | Cap |
|---|---|---|---|---|---|---|---|---|---|---|
| 504S-7756535 | 504S | 17X7.5 | 5 | 5X4.50 | +35 | 5.75 | 73.1 | 1800 | 2.25 | TISMSMB-CAP |
| 504S-7754435 | 504S | 17X7.5 | 5 | 5X112 | +35 | 5.75 | 66.6 | 1800 | 2.25 | TISMSMB-CAP |
| 504S-7751235 | 504S | 17X7.5 | 5 | 5X120 | +35 | 5.75 | 73.1 | 1800 | 2.25 | TISMSMB-CAP |
| 504S-8806535 | 504S | 18X8 | 5 | 5X4.50 | +35 | 6 | 73.1 | 1800 | 2.49 | TISMSMB-CAP |
| 504S-8804435 | 504S | 18X8 | 5 | 5X112 | +35 | 6 | 66.6 | 1800 | 2.49 | TISMSMB-CAP |
| 504S-8801235 | 504S | 18X8 | 5 | 5X120 | +35 | 6 | 73.1 | 1800 | 2.49 | TISMSMB-CAP |
| 504S-2856535 | 504S | 20X8.5 | 5 | 5X4.50 | +35 | 6.25 | 73.1 | 1800 | 0.4 | TISMSMB-CAP |
| 504S-2854435 | 504S | 20X8.5 | 5 | 5X112 | +35 | 6.25 | 66.6 | 1800 | 0.4 | TISMSMB-CAP |
| 504S-2851235 | 504S | 20X8.5 | 5 | 5X120 | +35 | 6.25 | 73.1 | 1800 | 0.4 | TISMSMB-CAP |
A Center-Cap Designed to Be Customized
Every TIS Motorsports wheel features a multi-piece center-cap engineered for personalization. Color-match it to your vehicle's body, run a bold contrast, or keep it factory — the cap pops apart and paints up easily, so your wheels finish the look exactly the way you want. One wheel, endless ways to make it yours.

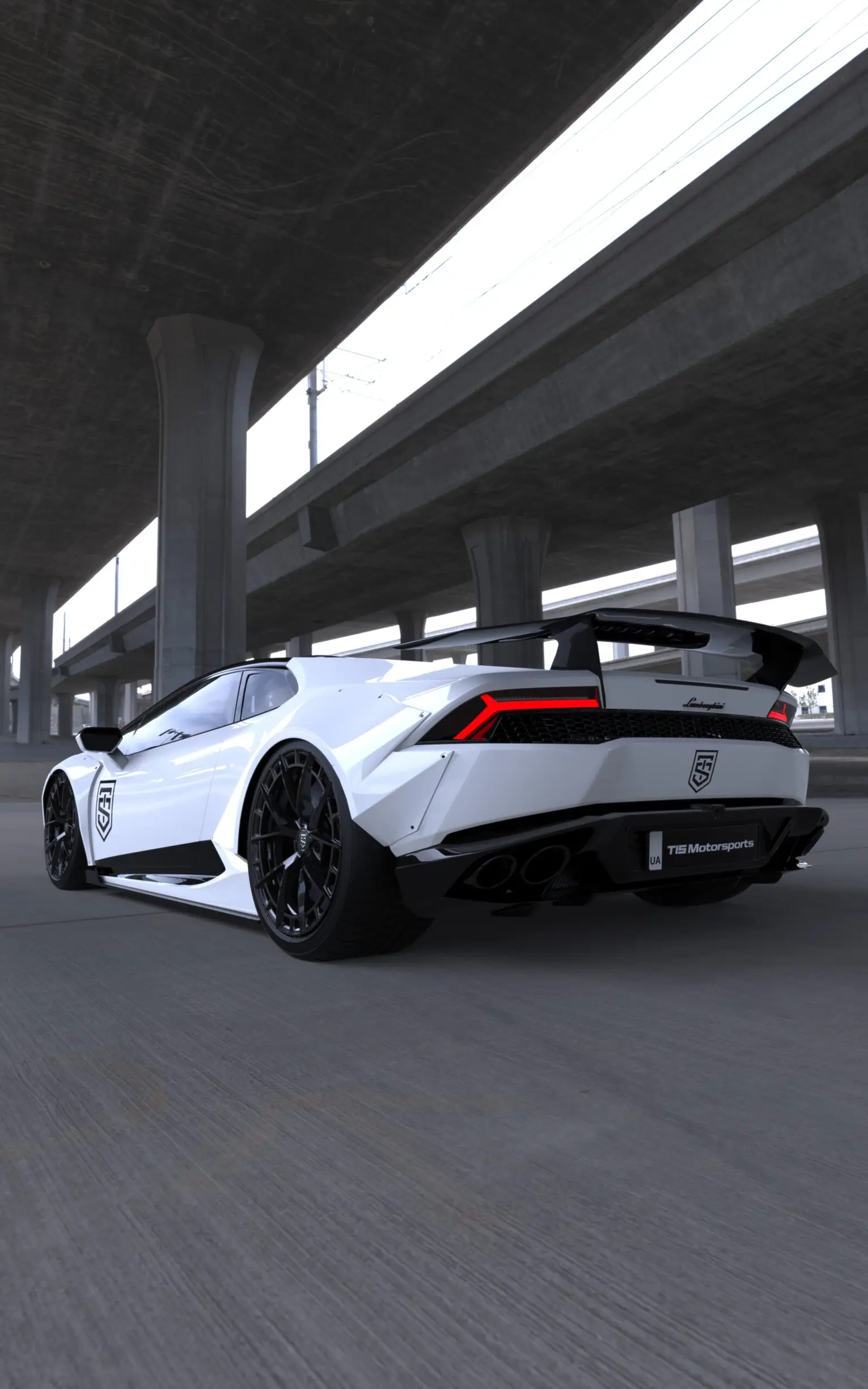

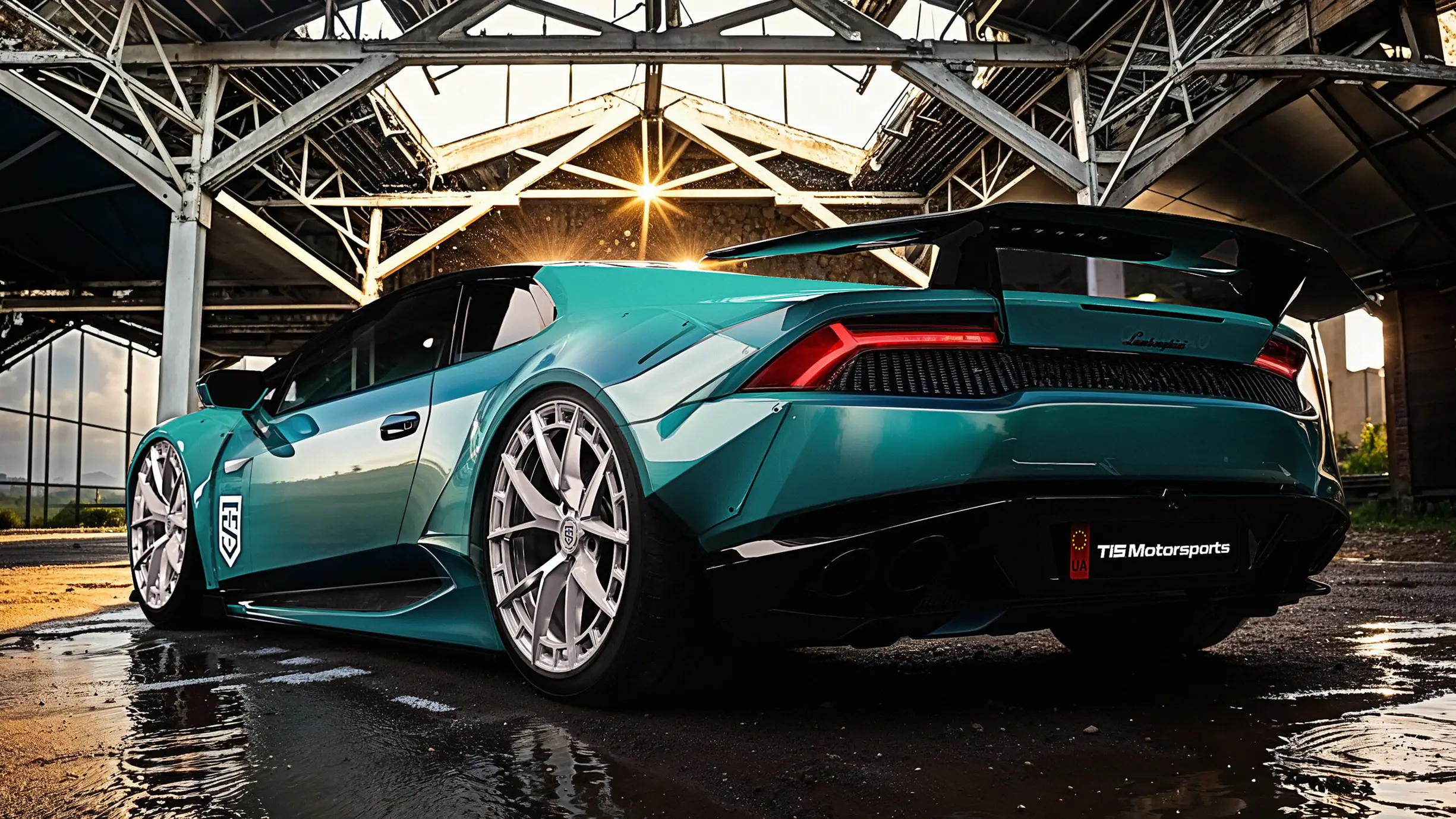

POWERED BY 504
Vehicle renders pulled live from the TIS asset vault — the 504 on real builds, low, loaded, and impossible to ignore.
Find a TIS Dealer Near You
Ready to run the 504? Find an authorized TIS retailer to see them in person, get fitment help, and order the right size for your build.
