506
506B
PATENT PENDING

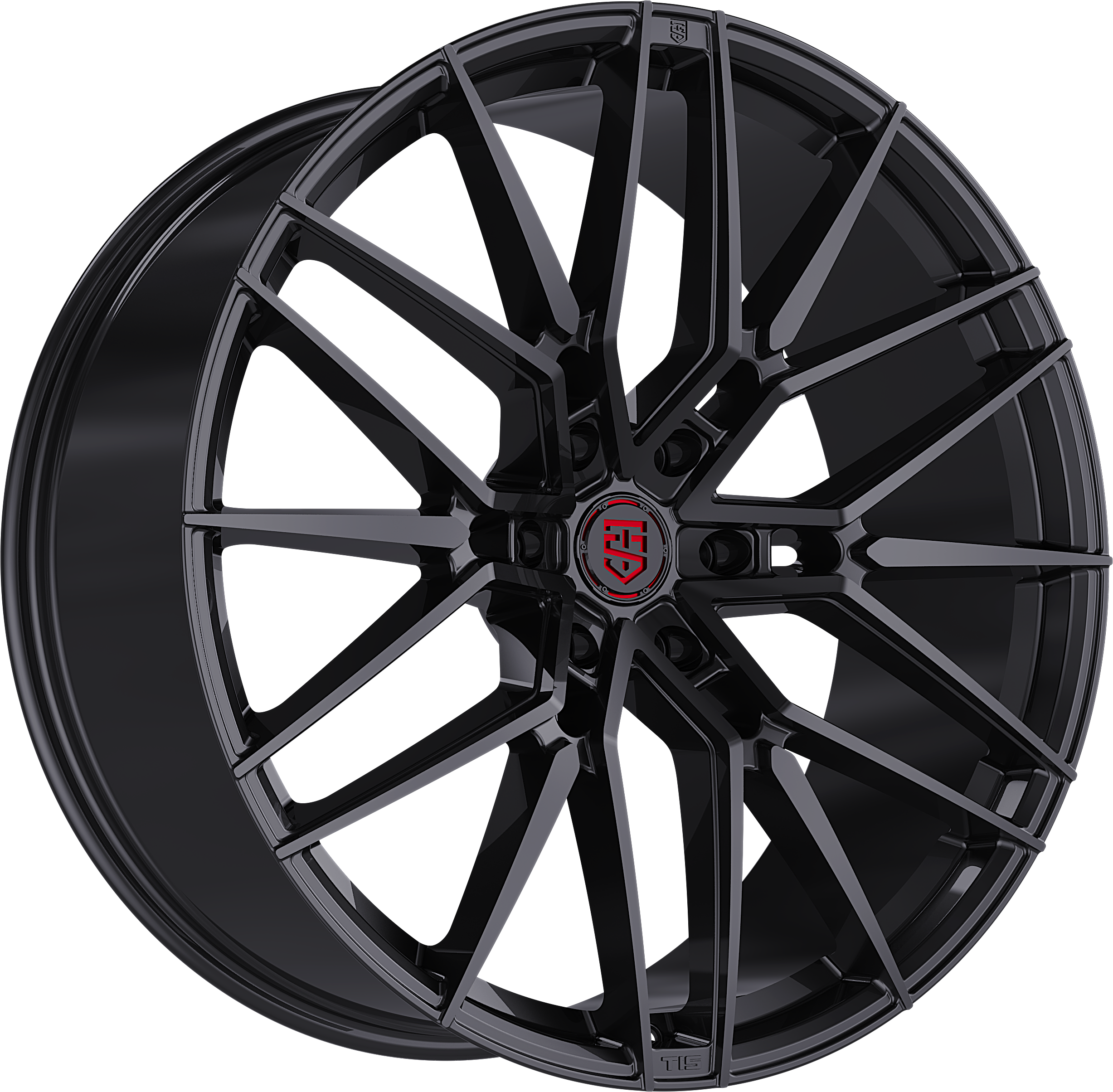

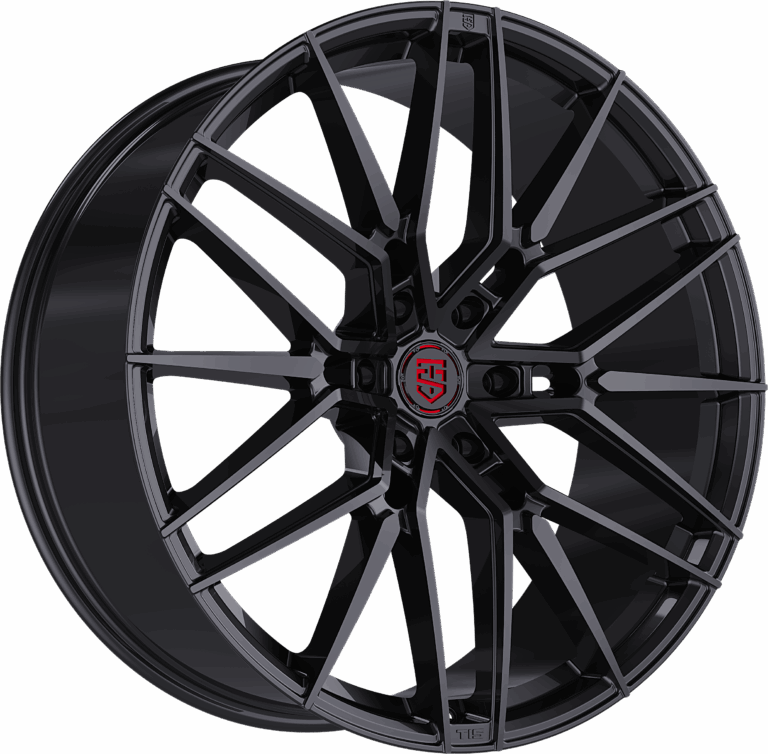

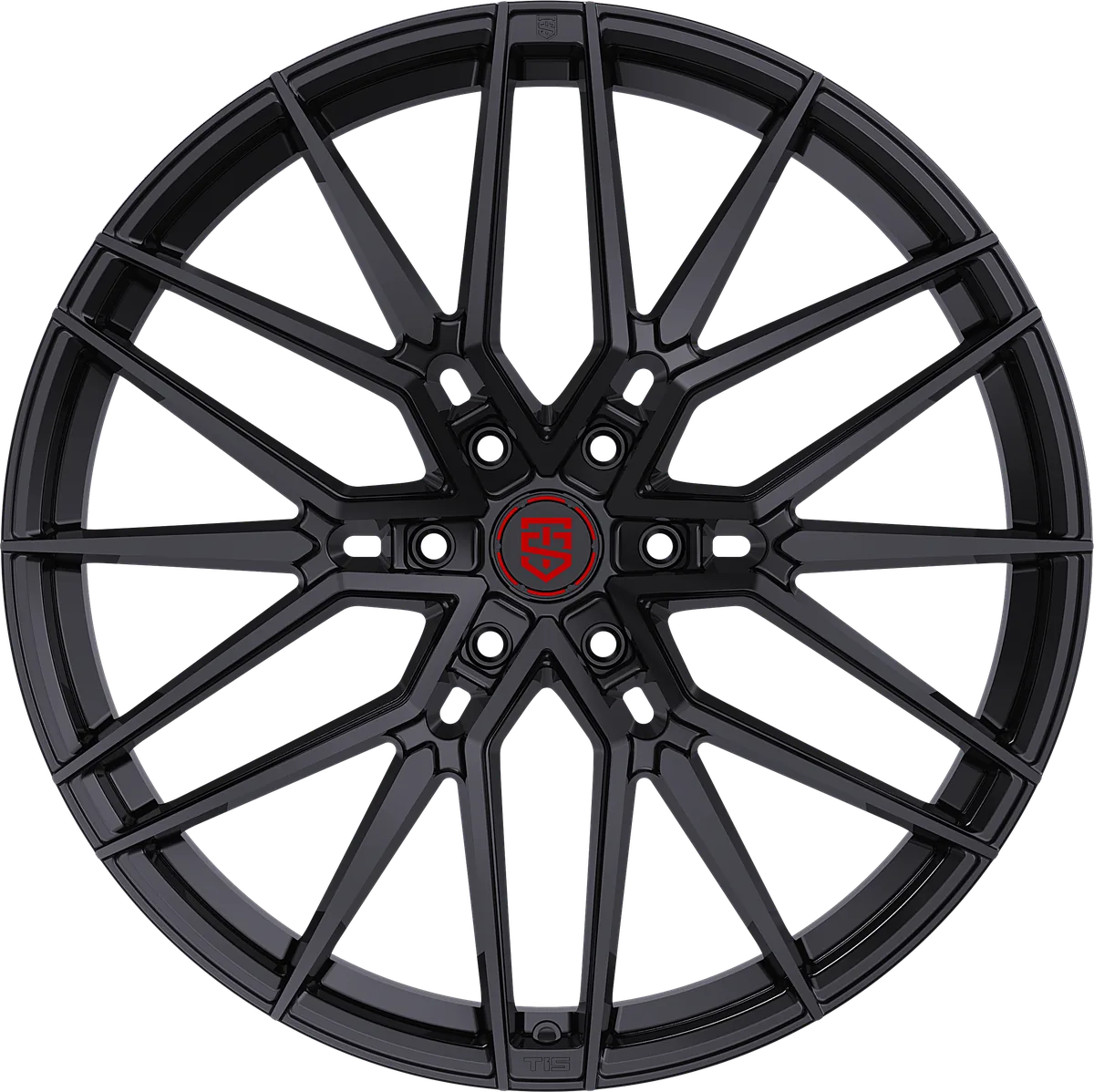

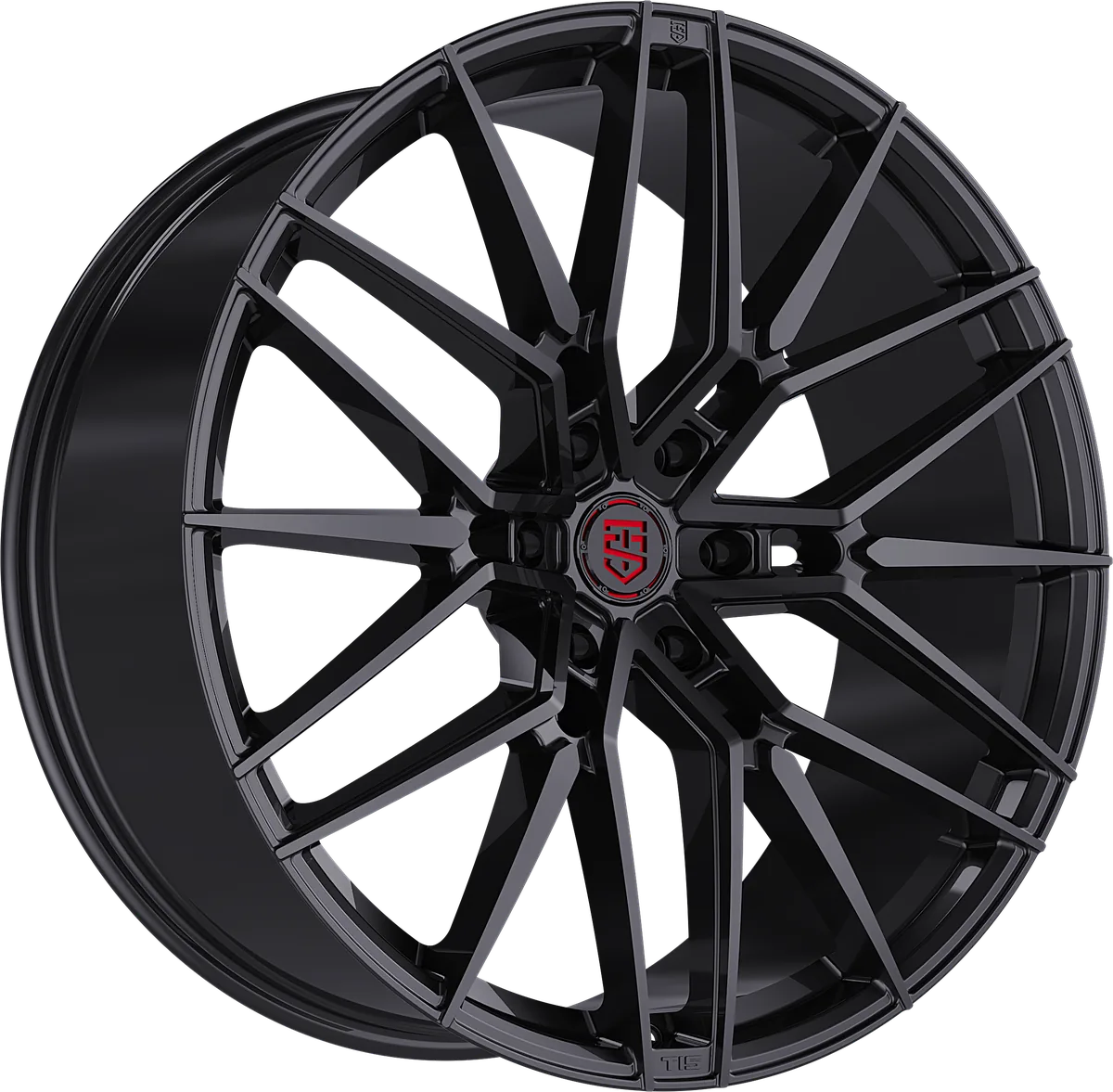

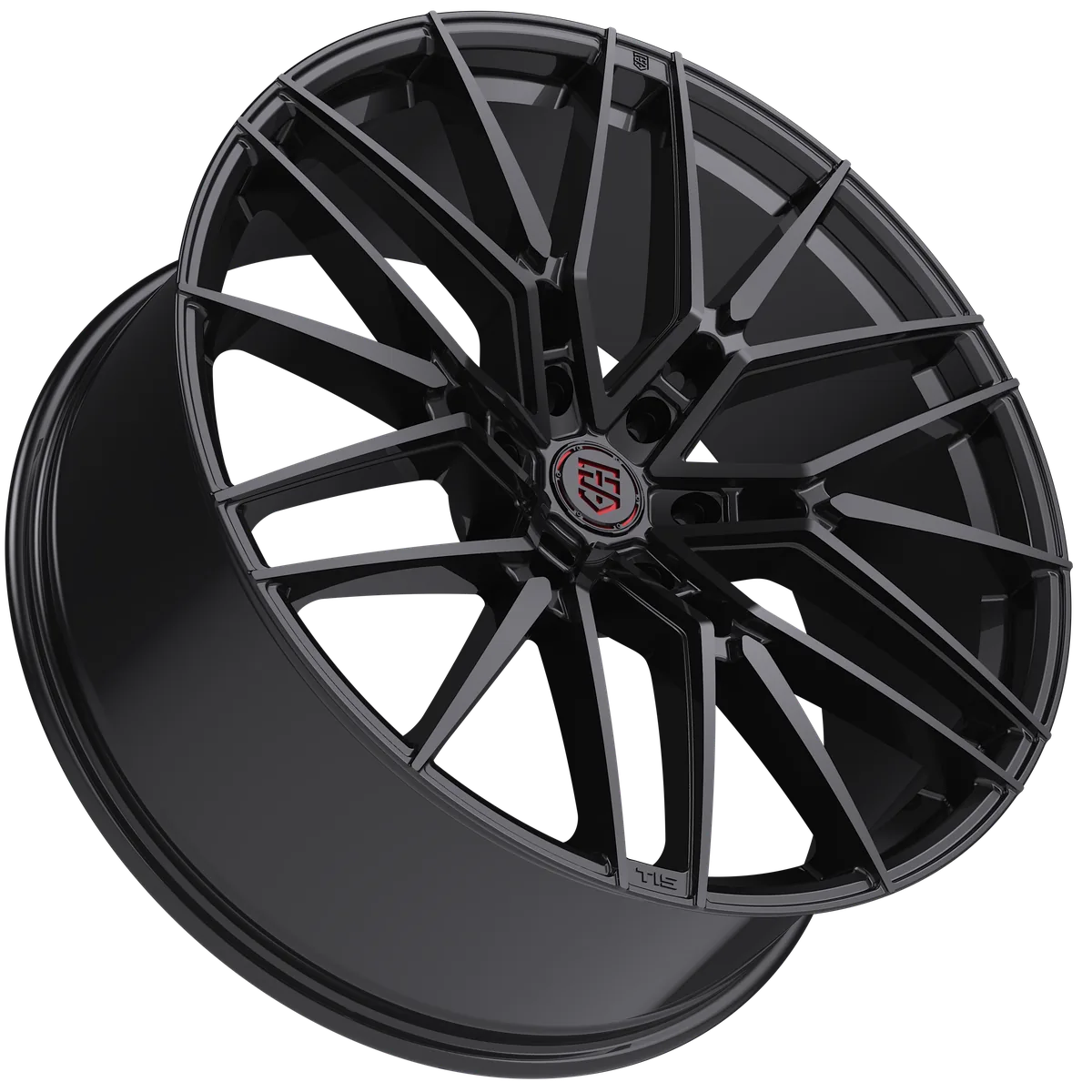

The TIS Motorsports 506B features a high gloss black finish and red accented multi-piece center-cap that is designed to make customization easy. All 506 wheels have a unique alternating multi- spoke design with 6 large elements separated by 6 single spokes. Also available in a 5 spoke version for 5-lug fitments.
| SIZE | OFFSET | BOLT PATTERN | MAP PRICE |
| 22×10 | 24 | 6×135/6×5.5 | $444 |
| 24×10 | 24 | 6×135/6×5.5 | $499 |
| 26×10 | 24 | 6×135/6×5.5 | $555 |
506B SPECS
| Part Number | Brand Style | Finish Name | Lug Ct | Bolt Pattern | Offset | Space | Hub Bore | Load Rating | Unit Weight |
| 506B-2206324 | 506B | Gloss Black | 6 | 6X135 | +24 | 6.44 | 87.1 | 2200 | 4.25 |
| 506B-2208324 | 506B | Gloss Black | 6 | 6X5.50 | +24 | 6.44 | 106.2 | 2200 | 4.25 |
| 506B-2406324 | 506B | Gloss Black | 6 | 6X135 | +24 | 6.44 | 87.1 | 2200 | 5.08 |
| 506B-2408324 | 506B | Gloss Black | 6 | 6X5.50 | +24 | 6.44 | 106.2 | 2200 | 5.08 |
| 506B-2606324 | 506B | Gloss Black | 6 | 6X135 | +24 | 6.44 | 87.1 | 2200 | 5.88 |
| 506B-2608324 | 506B | Gloss Black | 6 | 6X5.50 | +24 | 6.44 | 106.2 | 2200 | 5.88 |
506GM
PATENT PENDING

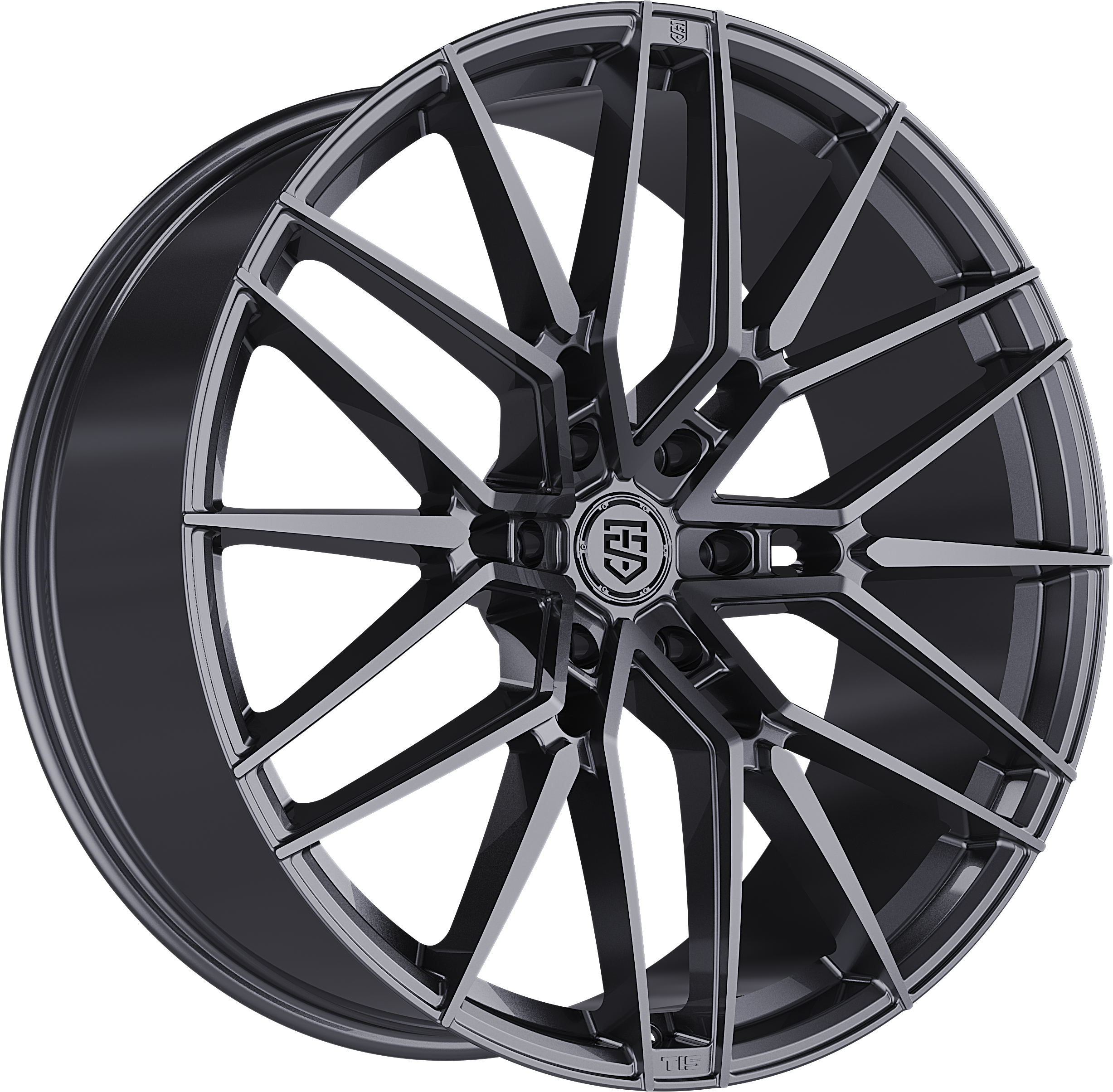

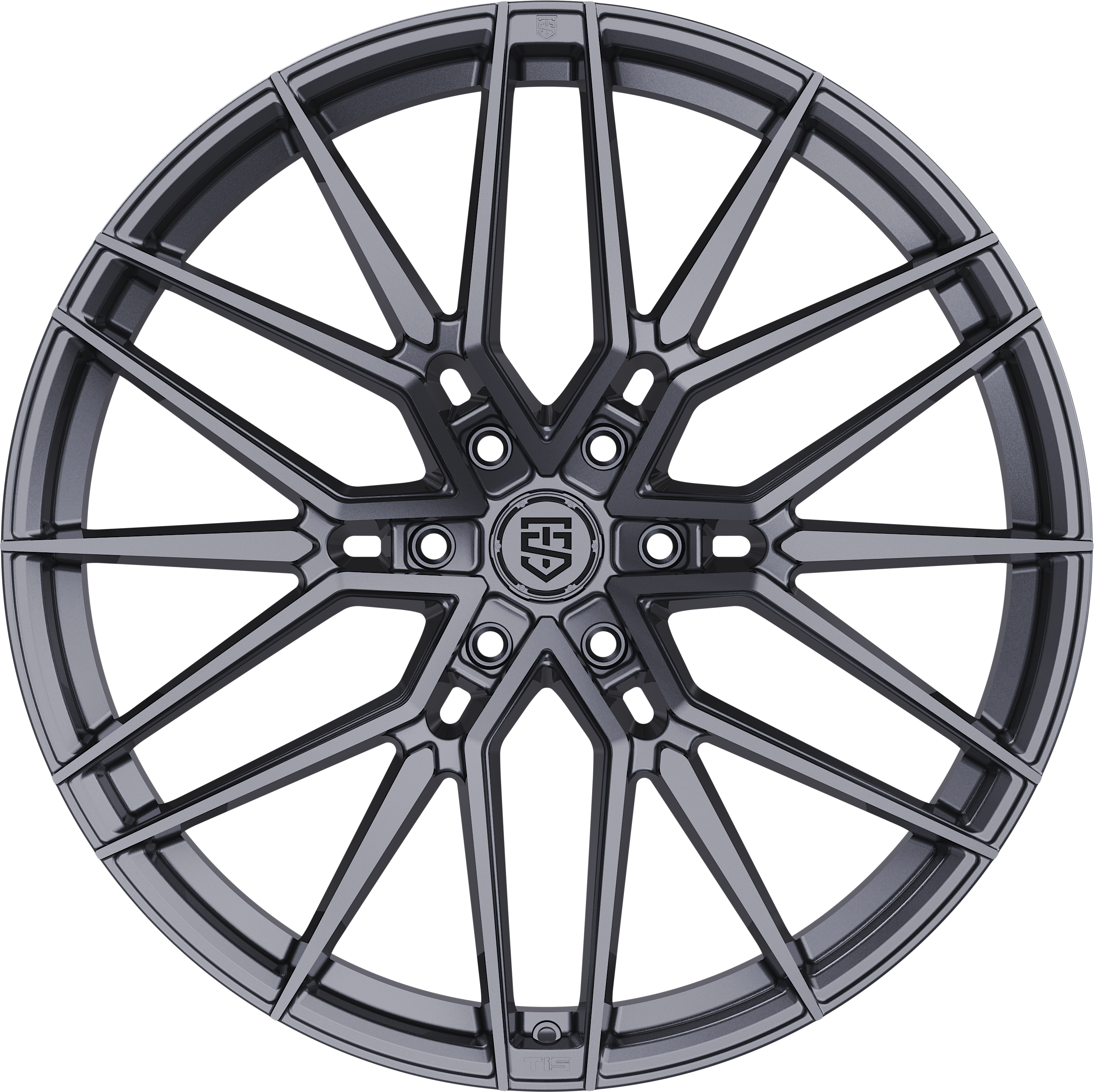

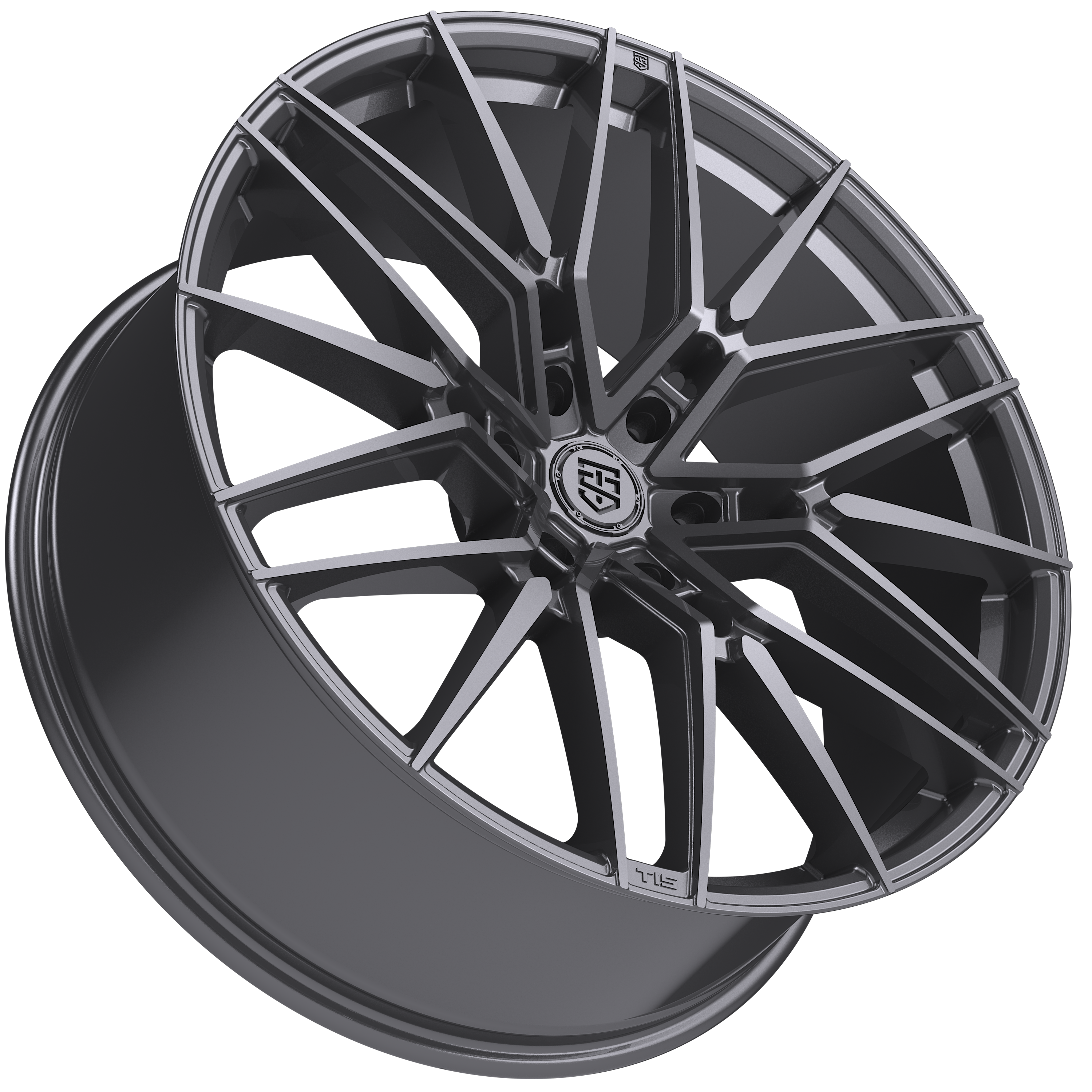

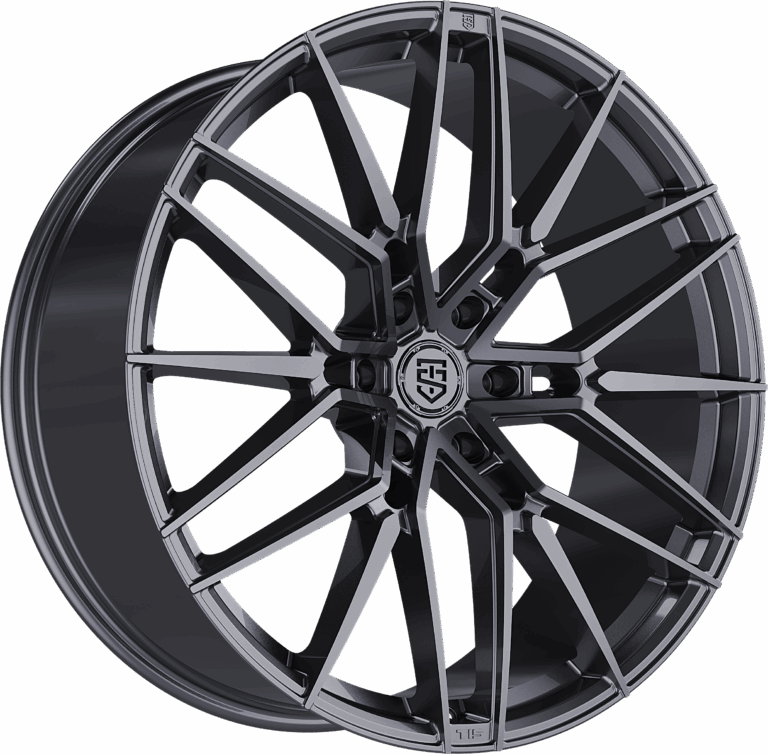

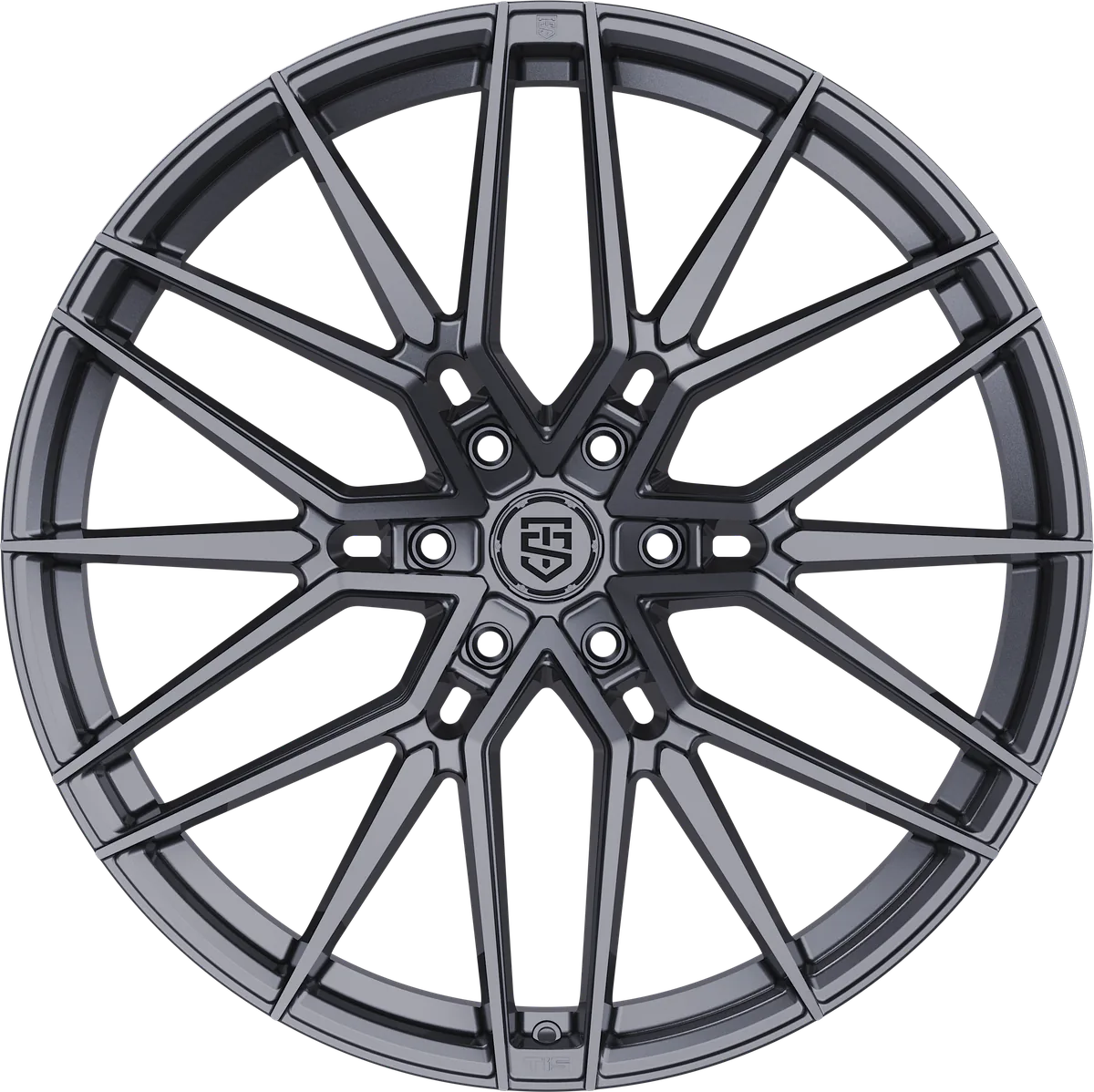

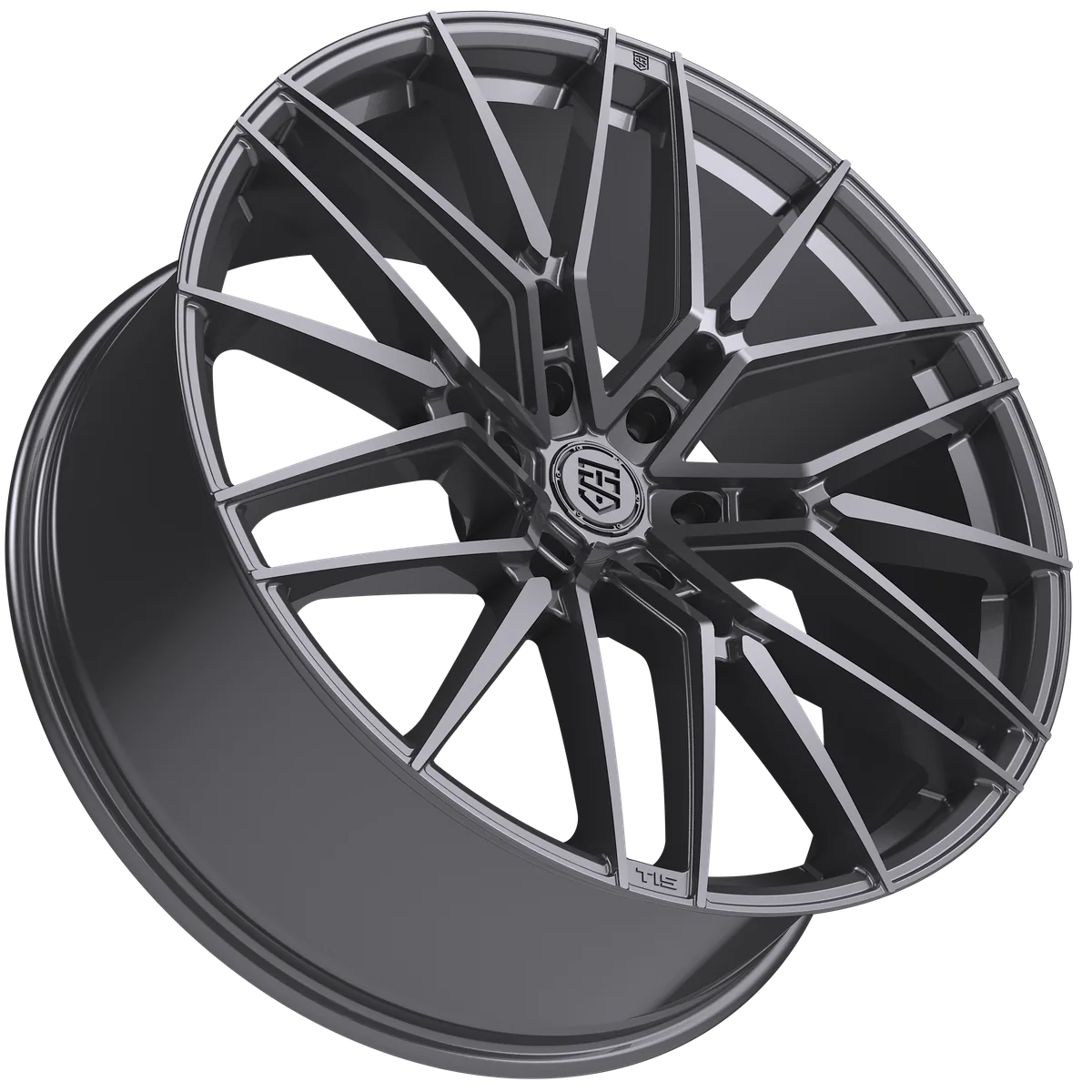

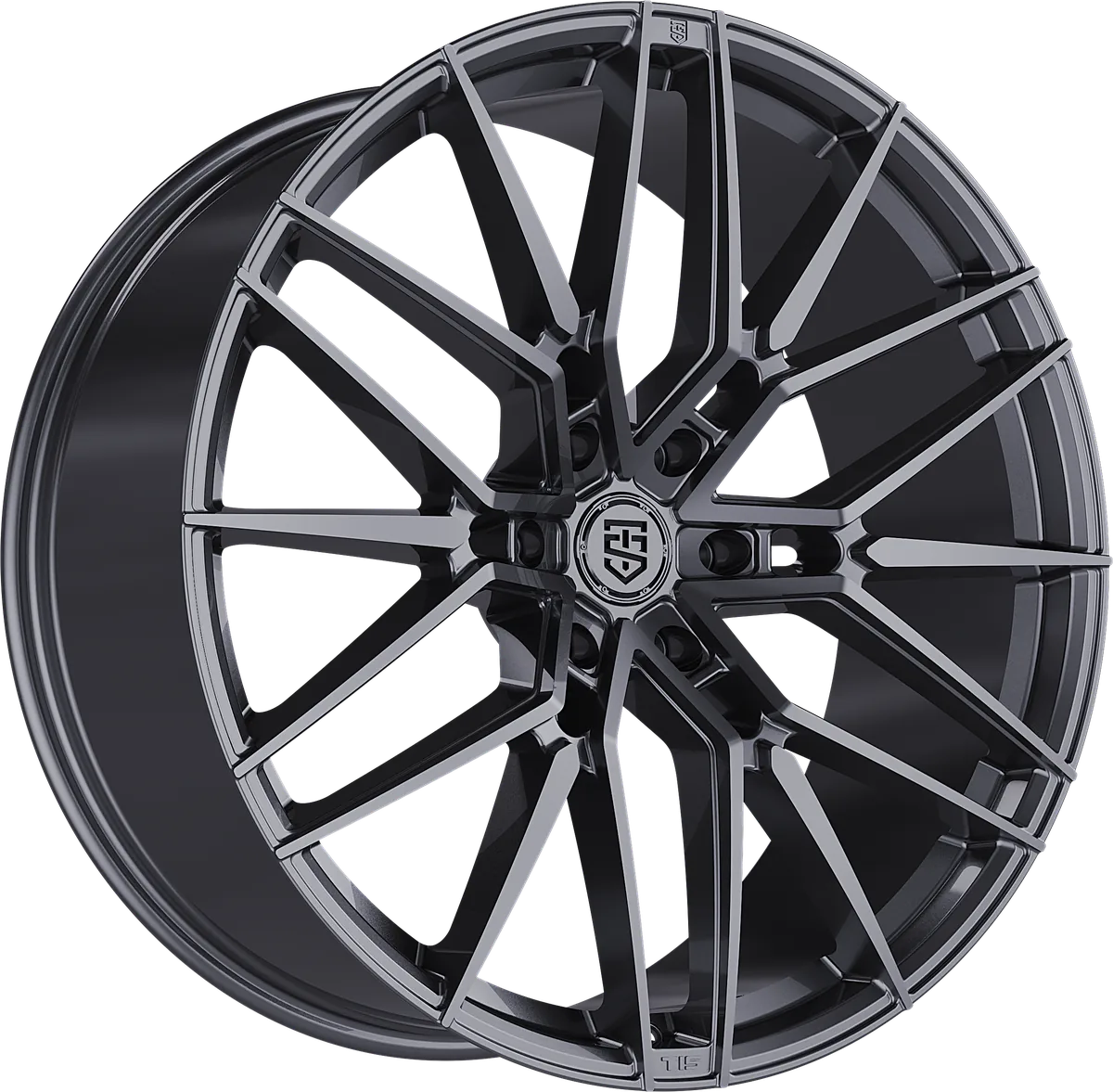

The TIS Motorsports 506GM features a high gloss gunmetal gray finish and black accented multi-piece center-cap that is designed to make customization easy. All 506 wheels have a unique alternating multi- spoke design with 6 large elements separated by 6 single spokes. Also available in a 5 spoke version for 5-lug fitments.
| SIZE | OFFSET | BOLT PATTERN | MAP PRICE |
| 22×10 | 24 | 6×135/6×5.5 | $444 |
| 24×10 | 24 | 6×135/6×5.5 | $499 |
| 26×10 | 24 | 6×135/6×5.5 | $555 |
506GM SPECS
| Part Number | Brand Style | Finish Name | Lug Ct | Bolt Pattern | Offset | Space | Hub Bore | Load Rating | Unit Weight |
| 506GM-2206324 | 506GM | Gunmetal | 6 | 6X135 | +24 | 6.44 | 87.1 | 2200 | 4.25 |
| 506GM-2208324 | 506GM | Gunmetal | 6 | 6X5.50 | +24 | 6.44 | 106.2 | 2200 | 4.25 |
| 506GM-2406324 | 506GM | Gunmetal | 6 | 6X135 | +24 | 6.44 | 87.1 | 2200 | 5.08 |
| 506GM-2408324 | 506GM | Gunmetal | 6 | 6X5.50 | +24 | 6.44 | 106.2 | 2200 | 5.08 |
| 506GM-2606324 | 506GM | Gunmetal | 6 | 6X135 | +24 | 6.44 | 87.1 | 2200 | 5.88 |
| 506GM-2608324 | 506GM | Gunmetal | 6 | 6X5.50 | +24 | 6.44 | 106.2 | 2200 | 5.88 |
506C
PATENT PENDING

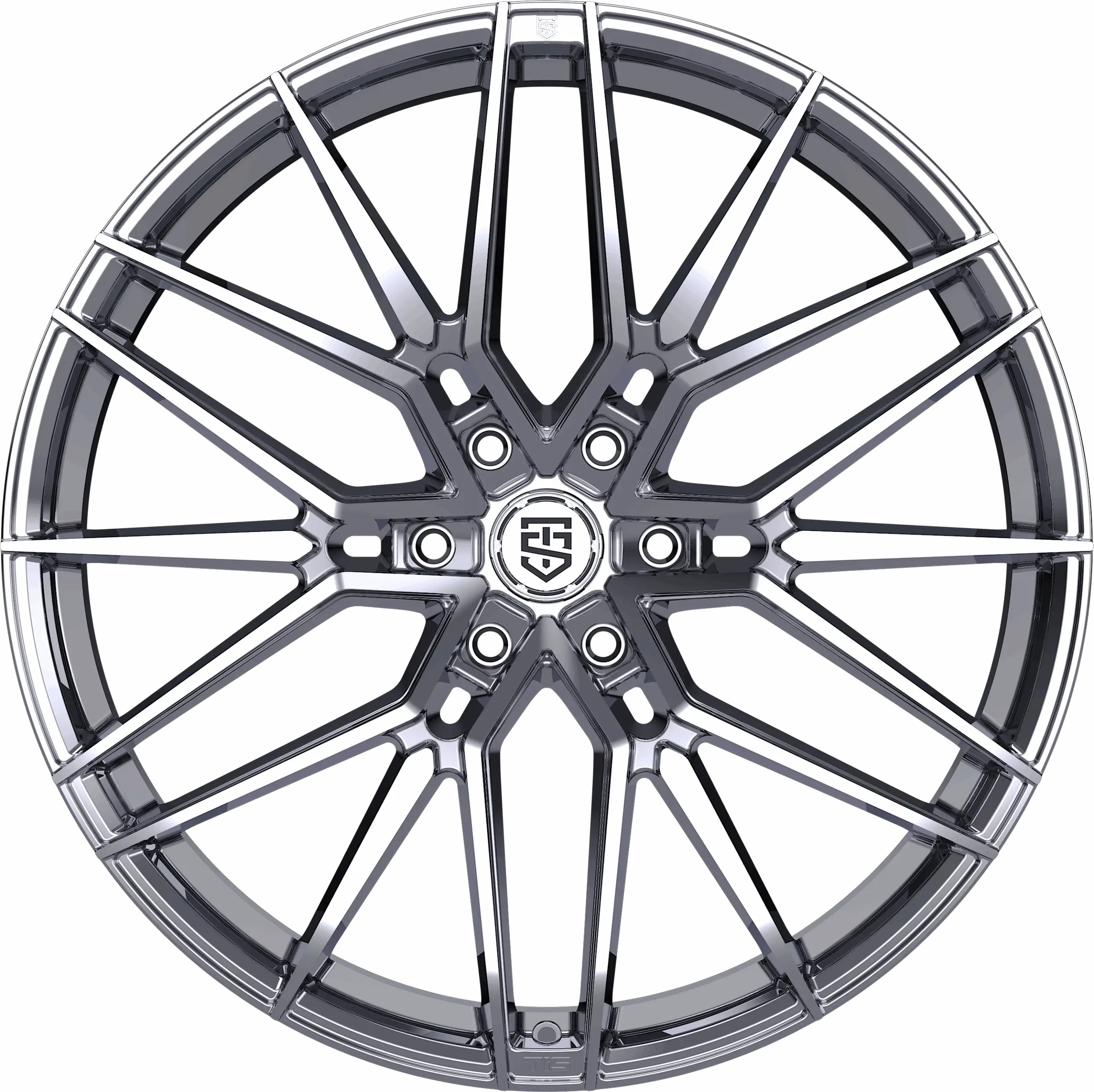

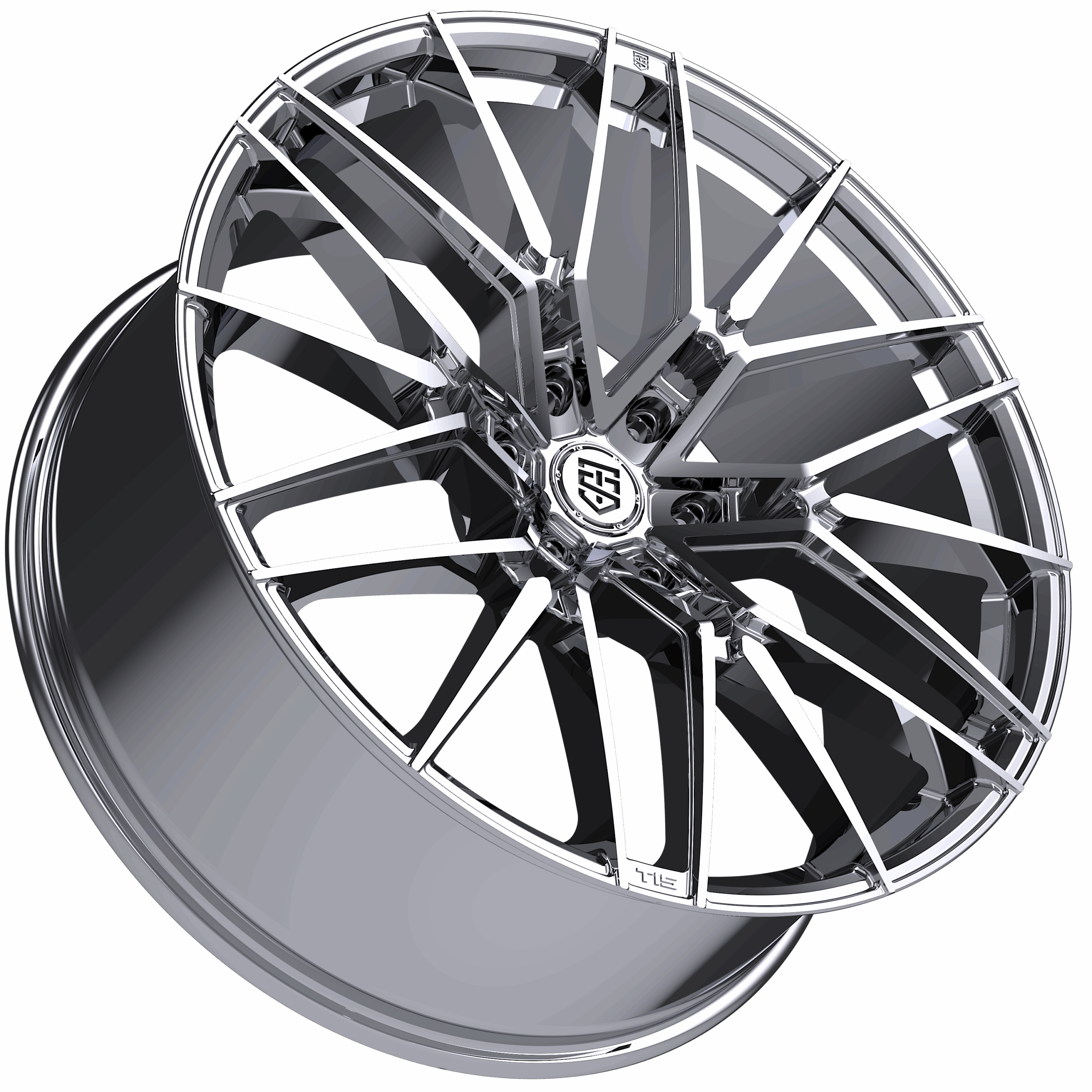

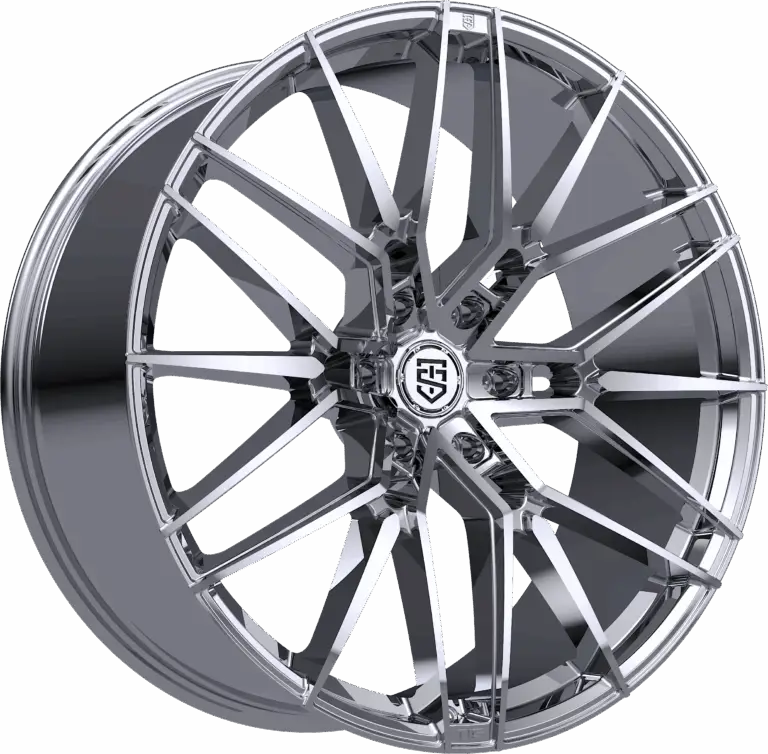

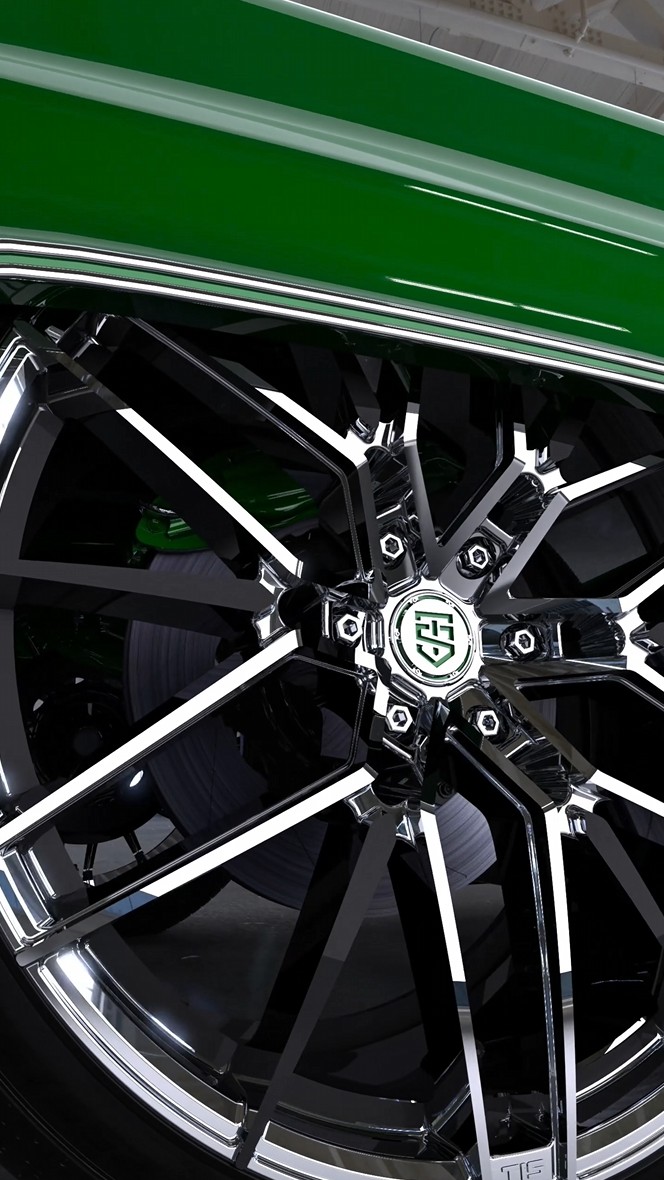

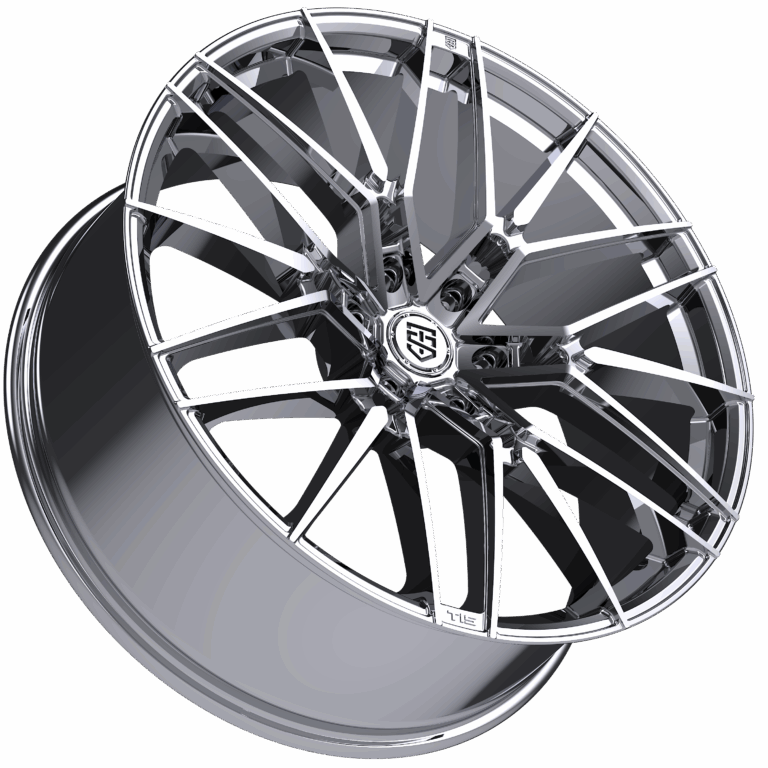

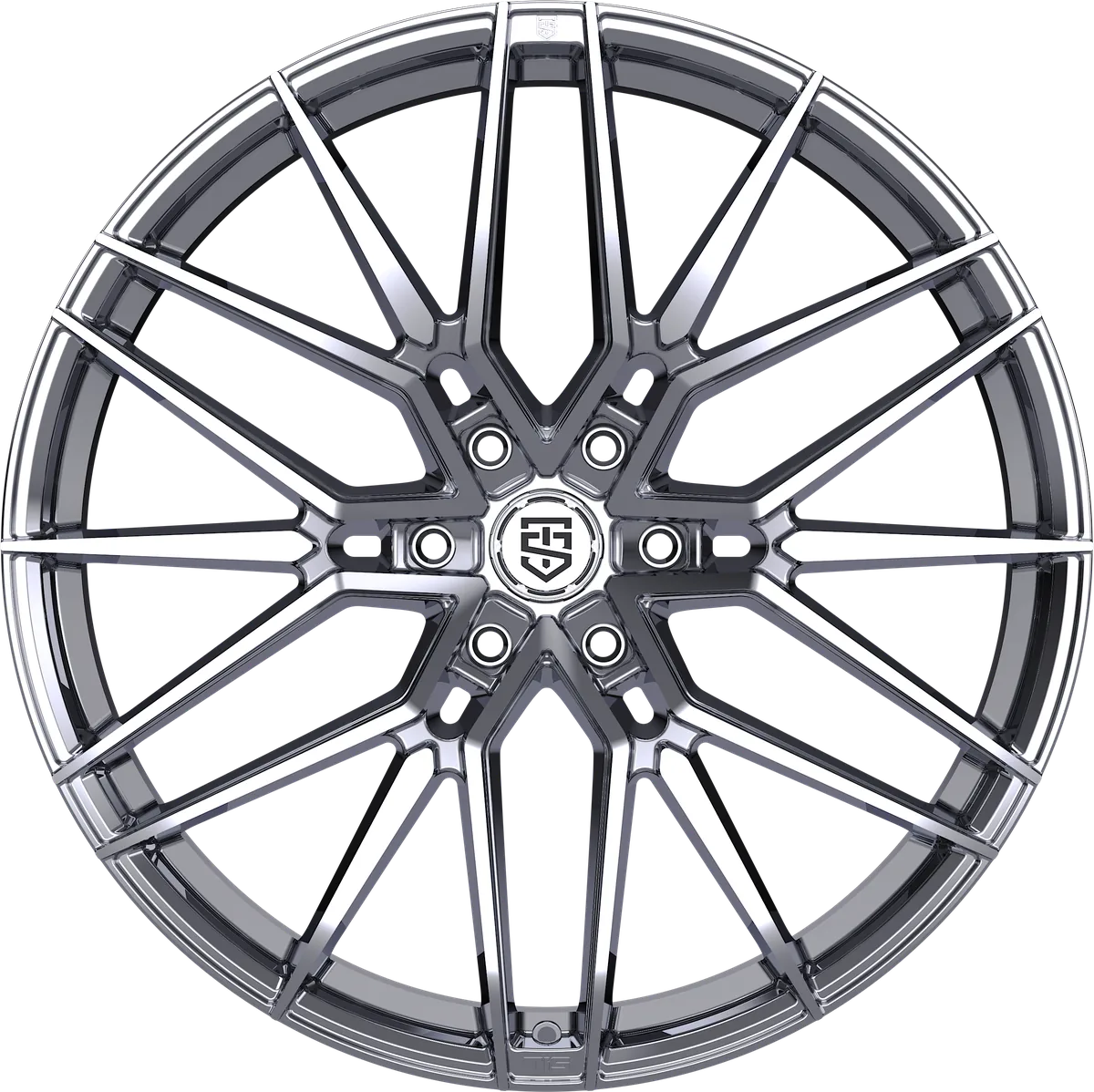

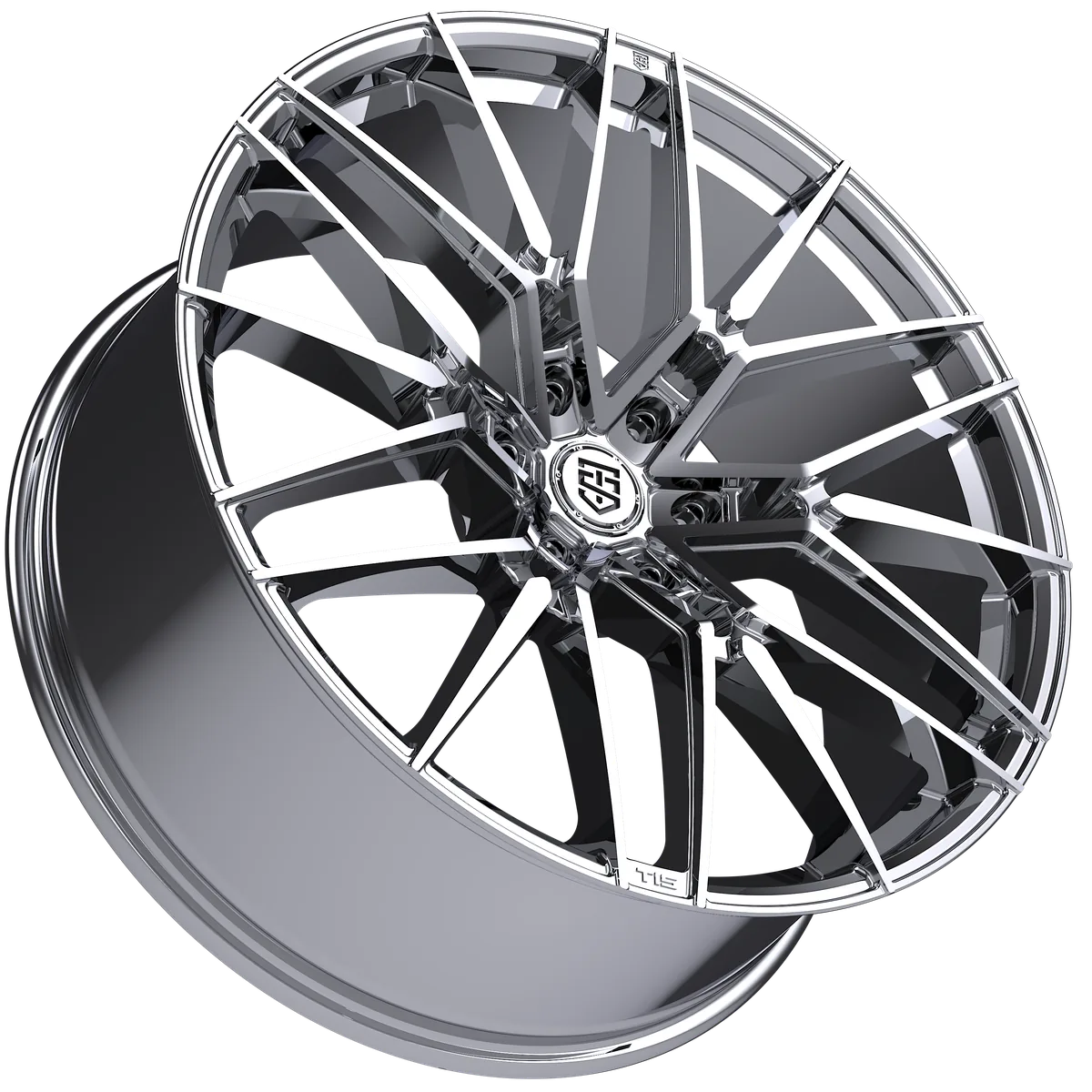

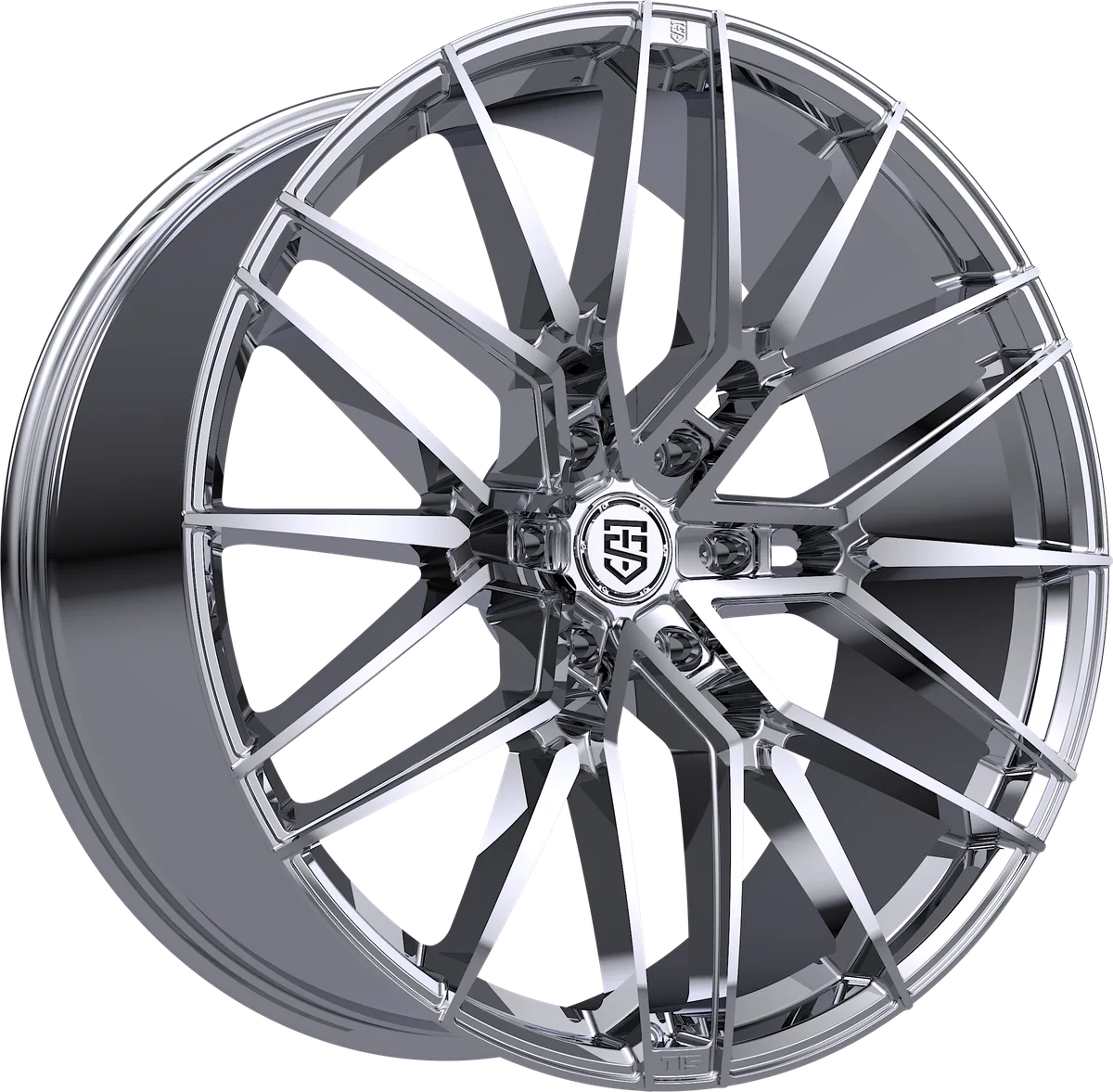

The TIS Motorsports 506C features a high gloss chrome finish and black accented multi-piece center-cap that is designed to make customization easy. All 506 wheels have a unique alternating multi- spoke design with 6 large elements separated by 6 single spokes. Also available in a 5 spoke version for 5-lug fitments.
| SIZE | OFFSET | BOLT PATTERN | MAP PRICE |
| 22×10 | 24 | 6×135/6×5.5 | SEE DEALER |
| 24×10 | 24 | 6×135/6×5.5 | SEE DEALER |
| 26×10 | 24 | 6×135/6×5.5 | SEE DEALER |
506C SPECS
| Part Number | Brand Style | Finish Name | Lug Ct | Bolt Pattern | Offset | Space | Hub Bore | Load Rating | Unit Weight |
| 506C-2206324 | 506C | Chrome Plated | 6 | 6X135 | +24 | 6.44 | 87.1 | 2200 | 41 |
| 506C-2208324 | 506C | Chrome Plated | 6 | 6X5.50 | +24 | 6.44 | 106.2 | 2200 | 41 |
| 506C-2406324 | 506C | Chrome Plated | 6 | 6X135 | +24 | 6.44 | 87.1 | 2200 | 43 |
| 506C-2408324 | 506C | Chrome Plated | 6 | 6X5.50 | +24 | 6.44 | 106.2 | 2200 | 43 |
| 506C-2606324 | 506C | Chrome Plated | 6 | 6X135 | +24 | 6.44 | 87.1 | 2200 | 60 |
| 506C-2608324 | 506C | Chrome Plated | 6 | 6X5.50 | +24 | 6.44 | 106.2 | 2200 | 60 |
MAKE IT YOUR OWN.
Our unique center-cap design was engineered to allow you to customize your TIS Motorsports wheels. You can easily disassemble the cap and paint each element separately to color-match or contrast your vehicle’s finish. We will also be releasing alternate center-cap designs in the future so you can swap out the originals to keep your set-up fresh.
