507
ONE PIECE

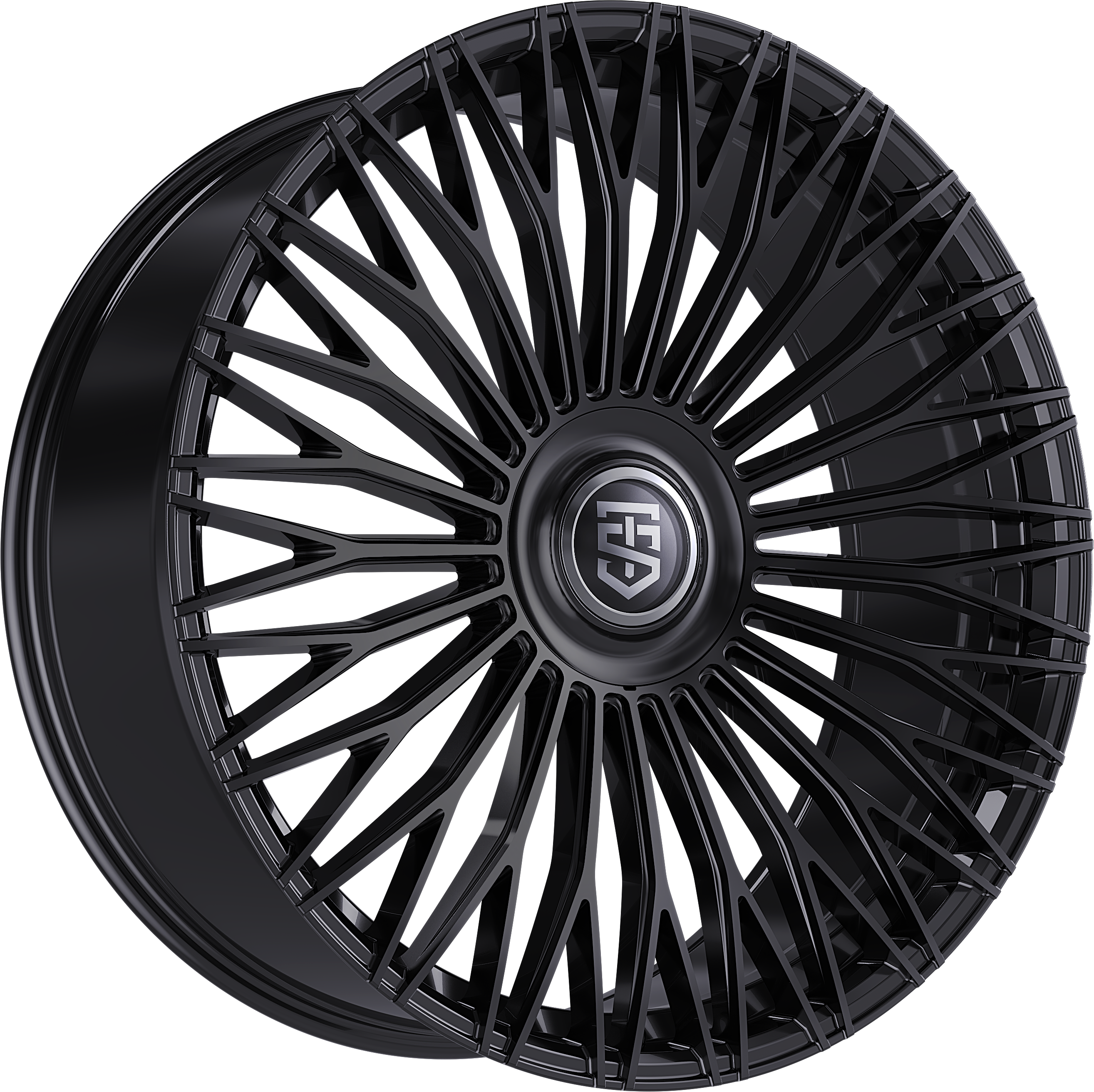

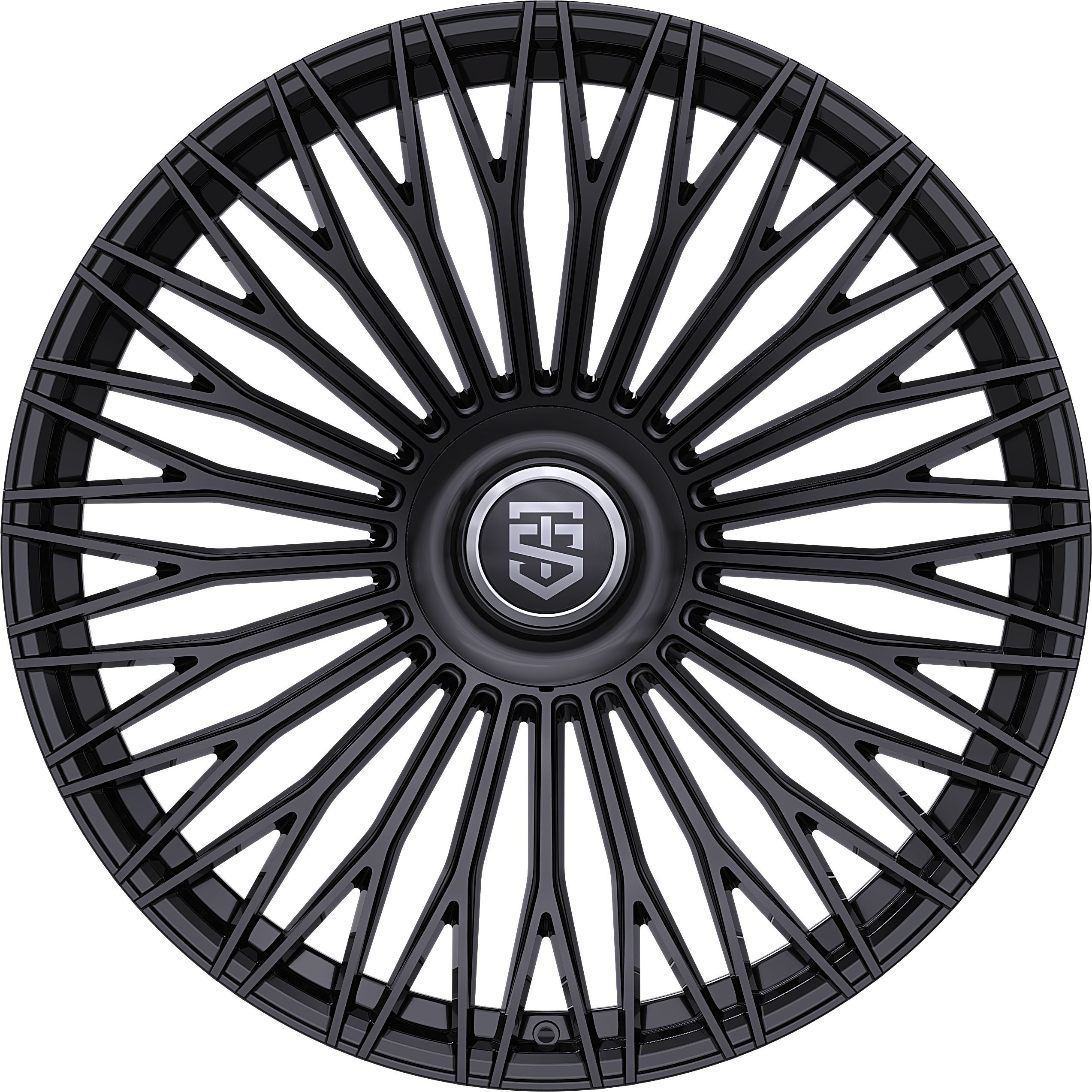

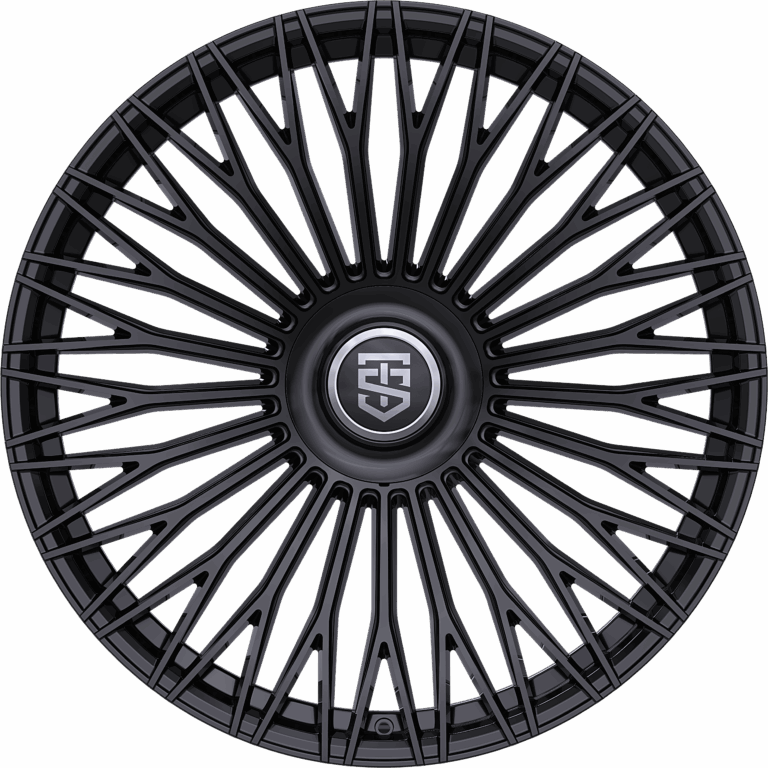

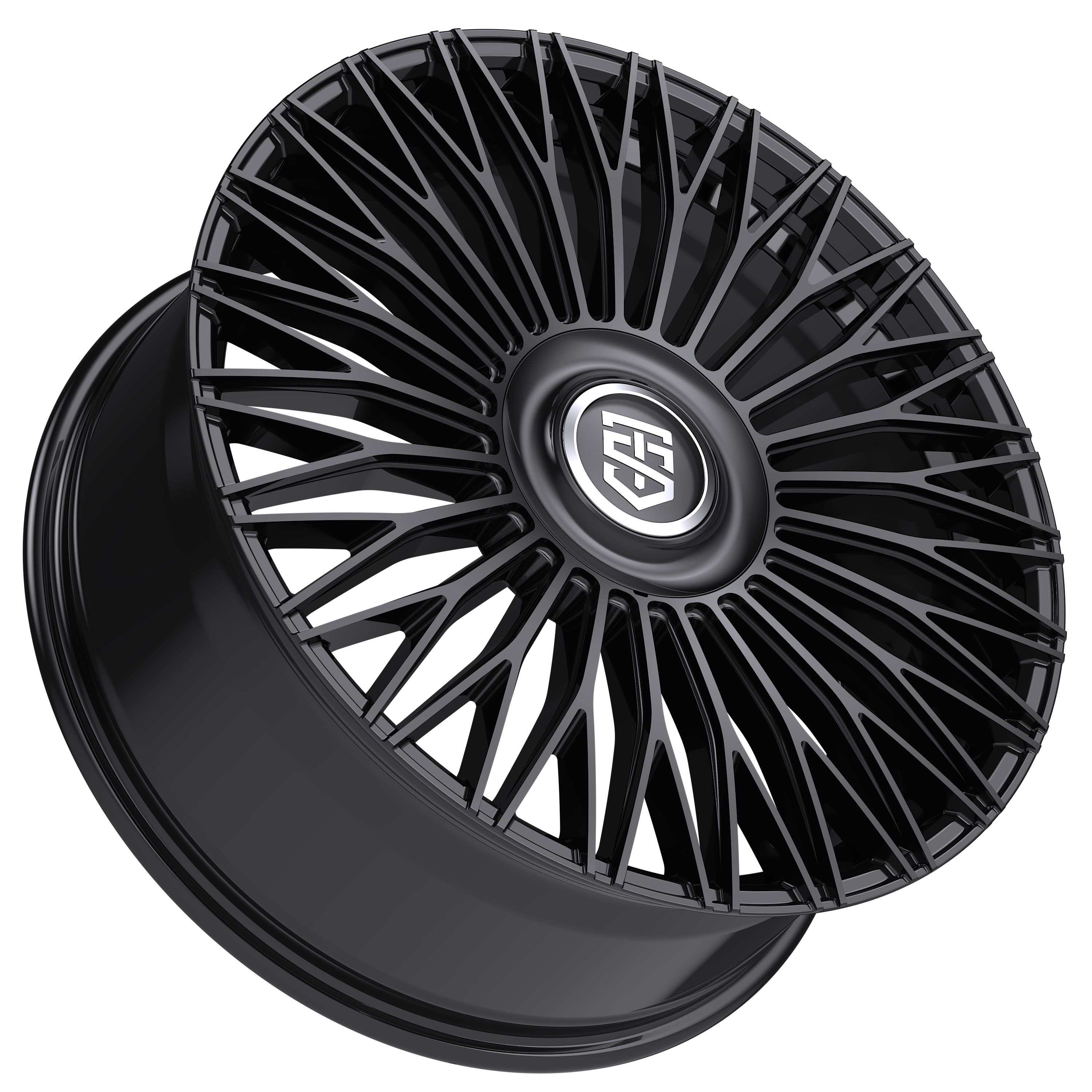

507B
GLOSS BLACK FINISH
PATENT PENDING

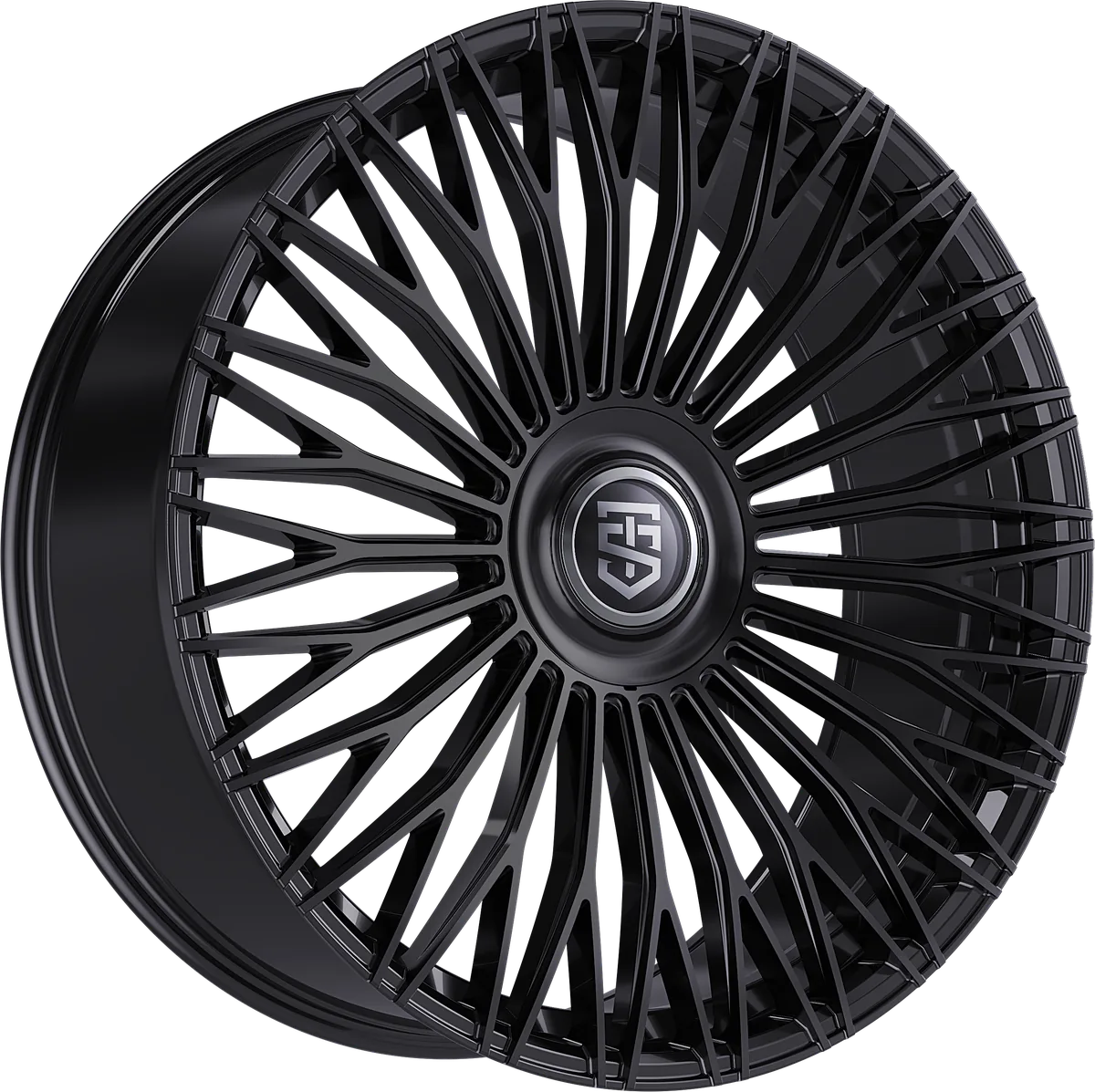

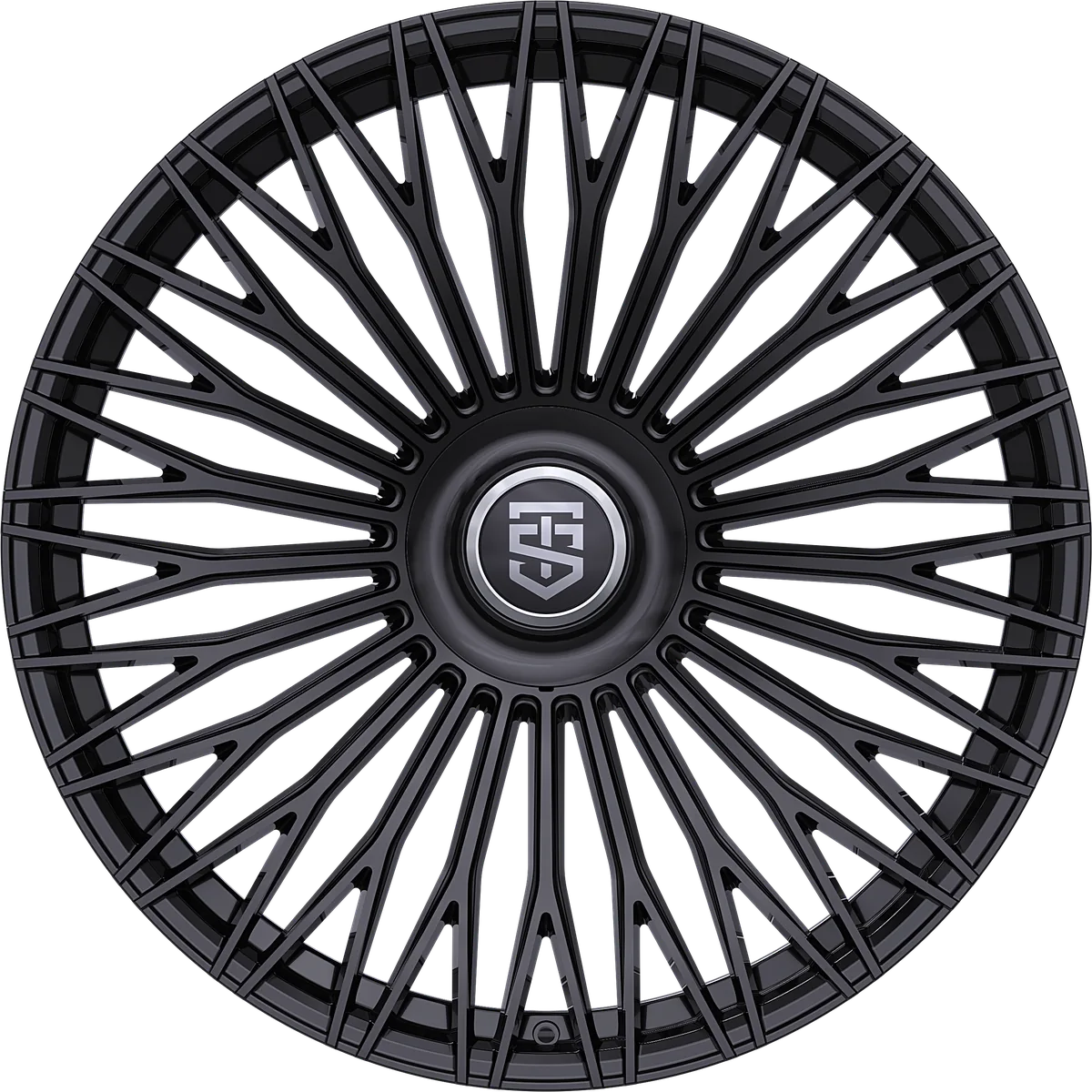

The TIS Motorsports 507B features a high gloss black finish and chrome accented floating center-cap. All 507 wheels full face profile and multi-spoke design that will compliment a variety of luxury vehicles and SUVs.
| SIZE | OFFSET | BOLT PATTERN | MAP PRICE |
| 18×8 | 35 | 5×120/5×112/5×4.5 | $314 |
| 20×8.5 | 35 | 5×120/5×112/5×4.5 | $389 |
| 22×9 | 40 | 5×120/5×112/5×4.5 | $444 |
| 22×9 | 15 | 5×115/5×120 | $444 |
| 22×10 | 18 | 5×115/5×120 | $444 |
| 22×10 | 24 | 6×135/6×5.5 | $444 |
| 24×10 | 24 | 6×135/6×5.5 | $499 |
| 26×10 | 24 | 6×135/6×5.5 | $555 |
507B SPECS
SPECIFICATIONS
| Part Number | Brand Style | Finish Name | Lug Ct | Bolt Pattern | Offset | Space | Hub Bore | Load Rating | Unit Weight |
| 507B-8805935 | 507B | Gloss Black | 5 | 5X112 / 5X4.50 | +35 | 6 | 73.1 | 1800 | 2.49 |
| 507B-8805735 | 507B | Gloss Black | 5 | 5X4.50 / 5X120 | +35 | 6 | 73.1 | 1800 | 2.49 |
| 507B-2855935 | 507B | Gloss Black | 5 | 5X112 / 5X4.50 | +35 | 6.25 | 73.1 | 1800 | 0.4 |
| 507B-2855735 | 507B | Gloss Black | 5 | 5X4.50 / 5X120 | +35 | 6.25 | 73.1 | 1800 | 0.4 |
| 507B-2205518 | 507B | Gloss Black | 5 | 5X115 / 5X120 | +18 | 6.25 | 73.1 | 2200 | 4.25 |
| 507B-2206824 | 507B | Gloss Black | 6 | 6X135 / 6X5.50 | +24 | 6.44 | 108 | 2200 | 4.25 |
| 507B-2295940 | 507B | Gloss Black | 5 | 5X112 / 5X4.50 | +40 | 6.5 | 73.1 | 2200 | 3.91 |
| 507B-2295740 | 507B | Gloss Black | 5 | 5X4.50 / 5X120 | +40 | 6.5 | 73.1 | 2200 | 3.91 |
| 507B-2295515 | 507B | Gloss Black | 5 | 5X115 / 5X120 | +15 | 5.5 | 73.1 | 2200 | 3.91 |
| 507B-2406824 | 507B | Gloss Black | 6 | 6X135 / 6X5.50 | +24 | 6.44 | 108 | 2200 | 5.08 |
| 507B-2606824 | 507B | Gloss Black | 6 | 6X135 / 6X5.50 | +24 | 6.44 | 108 | 2200 | 5.88 |
ONE PIECE

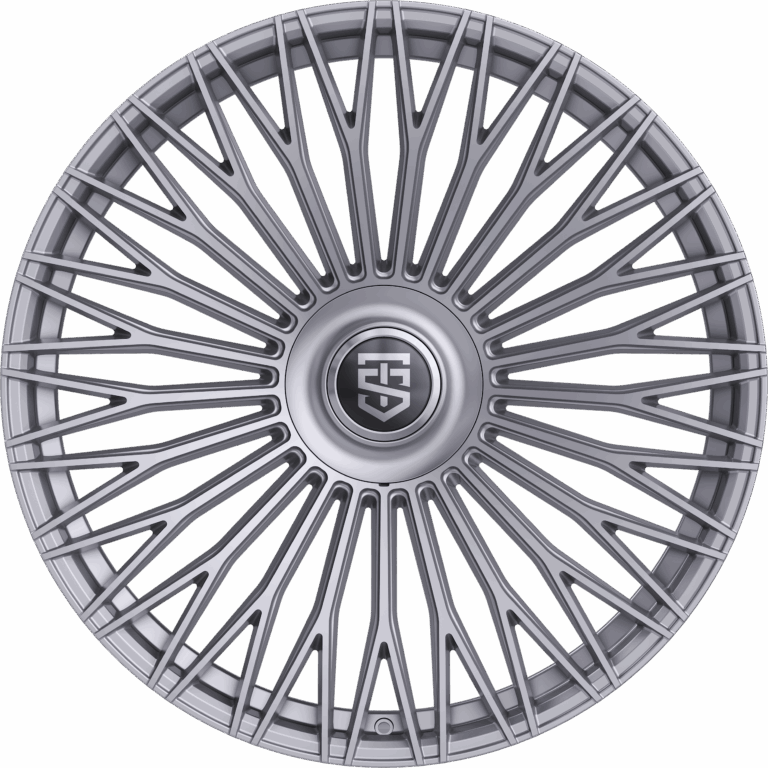

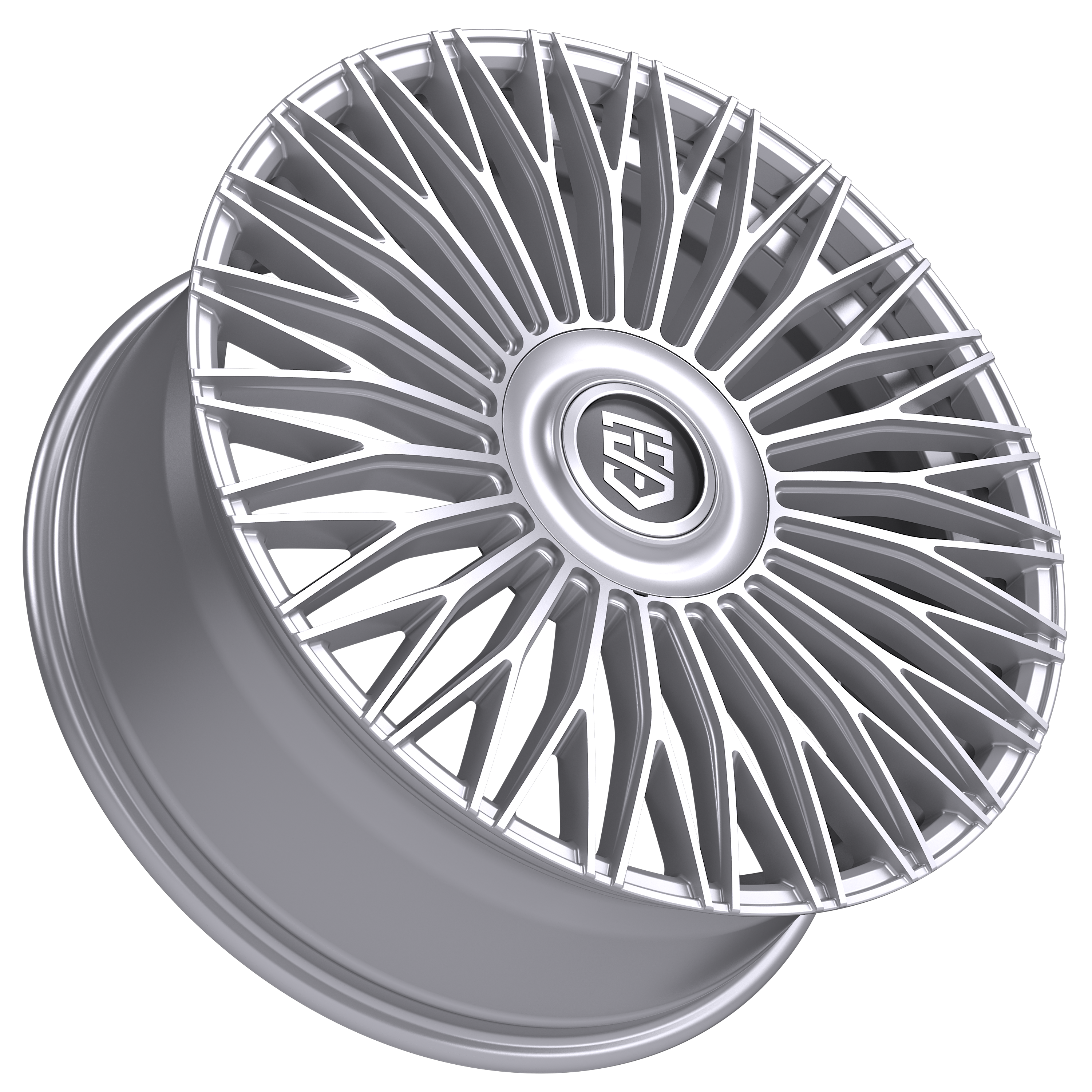

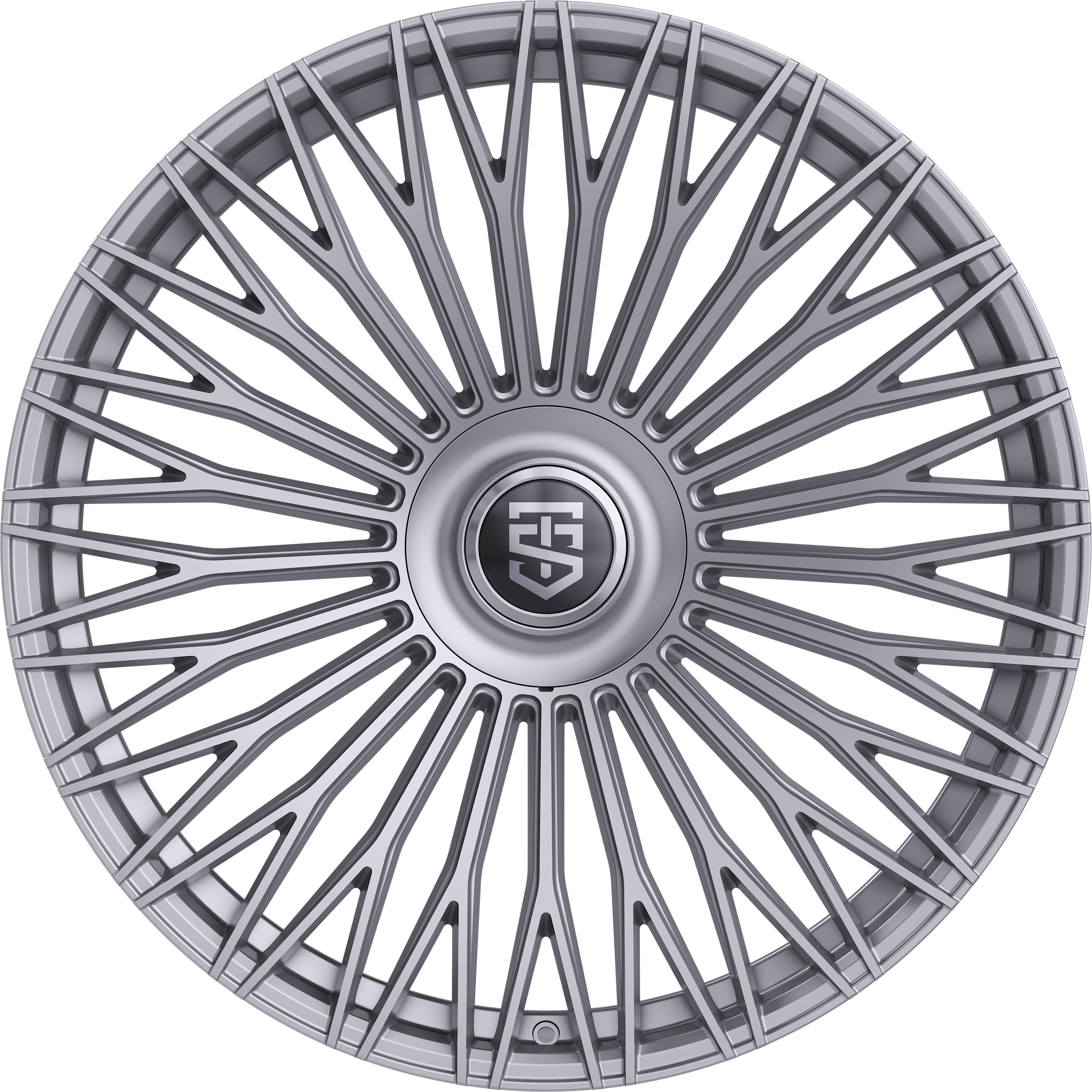

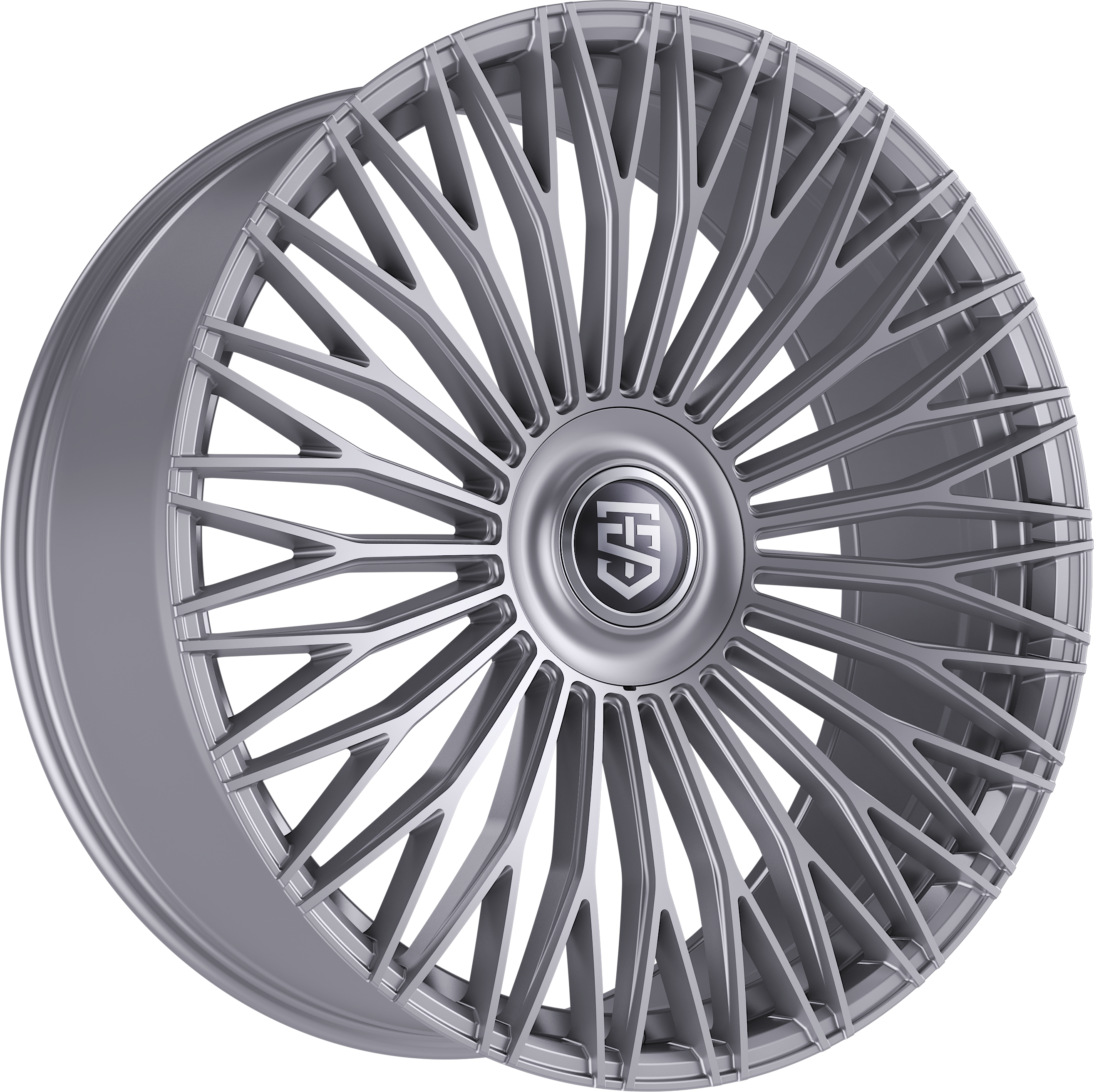

507S
GLOSS SILVER
PATENT PENDING

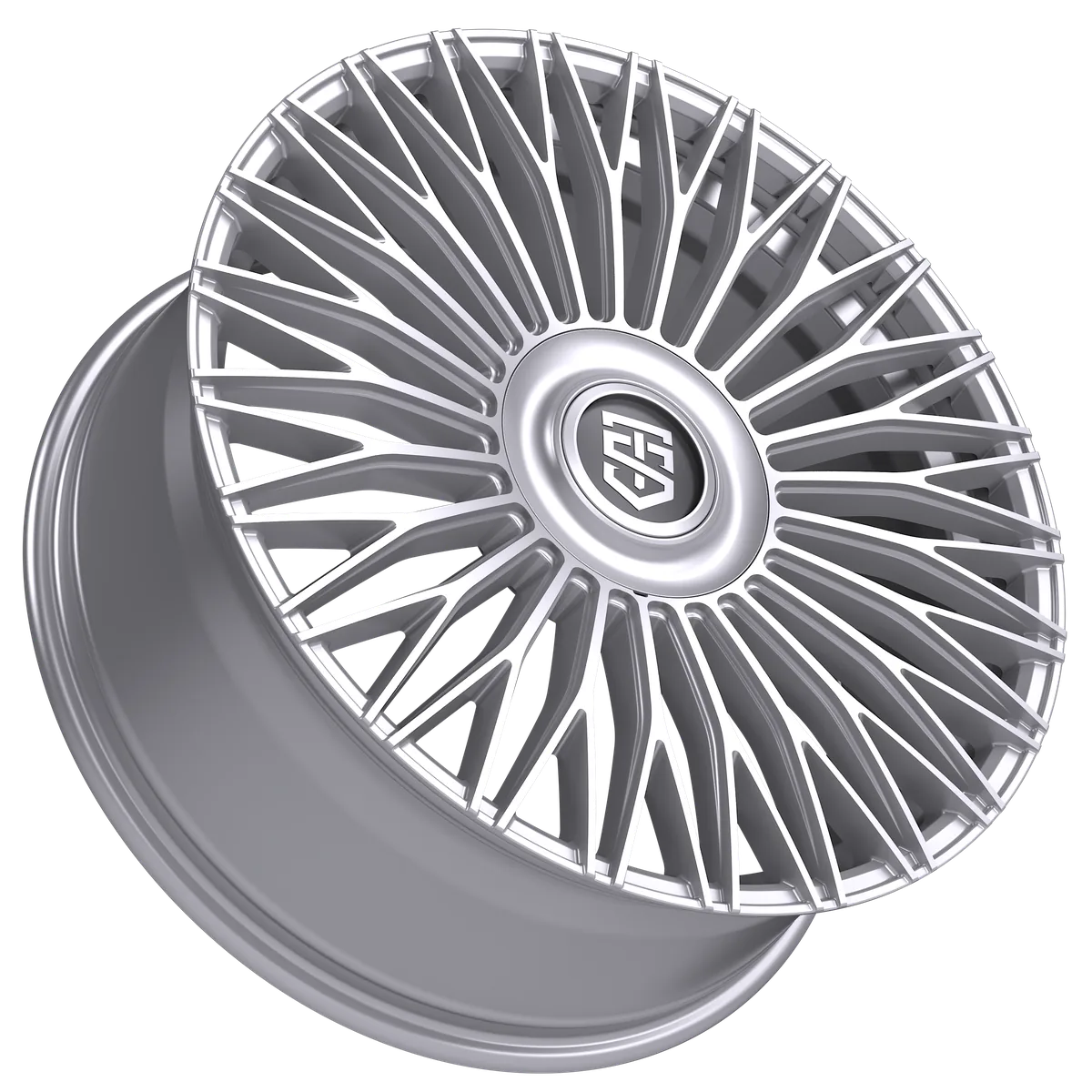

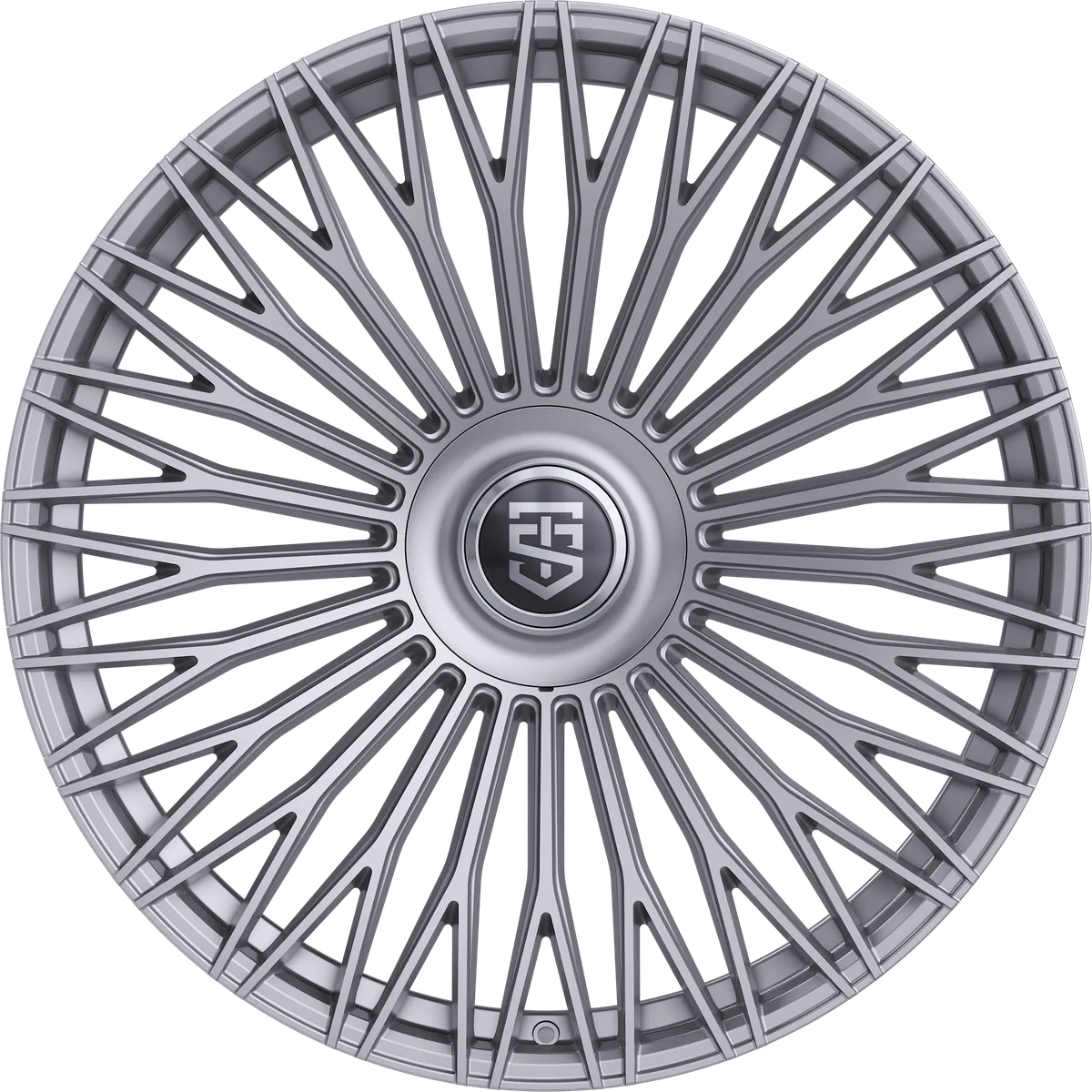

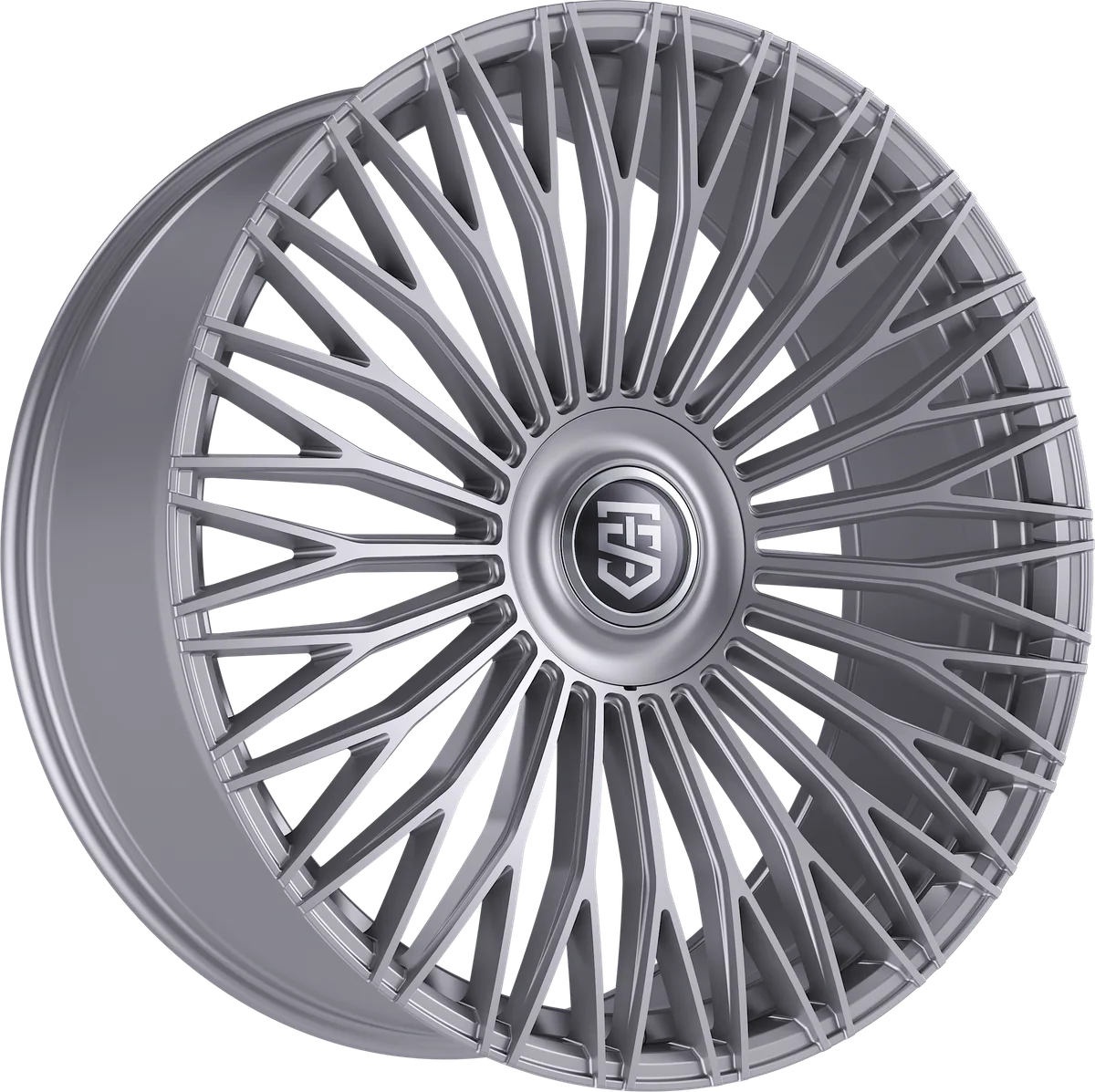

The TIS Motorsports 507S features a high gloss silver finish and chrome accented floating center-cap. All 507 wheels full face profile and multi-spoke design that will compliment a variety of luxury vehicles and SUVs.
| SIZE | OFFSET | BOLT PATTERN | MAP PRICE |
| 18×8 | 35 | 5×120/5×112/5×4.5 | $314 |
| 20×8.5 | 35 | 5×120/5×112/5×4.5 | $389 |
| 22×9 | 40 | 5×120/5×112/5×4.5 | $444 |
| 22×9 | 15 | 5×115/5×120 | $444 |
| 22×10 | 18 | 5×115/5×120 | $444 |
| 22×10 | 24 | 6×135/6×5.5 | $444 |
| 24×10 | 24 | 6×135/6×5.5 | $499 |
| 26×10 | 24 | 6×135/6×5.5 | $555 |
507S SPECS
SPECIFICATIONS
| Part Number | Brand Style | Finish Name | Lug Ct | Bolt Pattern | Offset | Space | Hub Bore | Load Rating | Unit Weight |
| 507S-8805935 | 507S | Gloss Silver | 5 | 5X112 / 5X4.50 | +35 | 6 | 73.1 | 1800 | 2.49 |
| 507S-8805735 | 507S | Gloss Silver | 5 | 5X4.50 / 5X120 | +35 | 6 | 73.1 | 1800 | 2.49 |
| 507S-2855935 | 507S | Gloss Silver | 5 | 5X112 / 5X4.50 | +35 | 6.25 | 73.1 | 1800 | 0.4 |
| 507S-2855735 | 507S | Gloss Silver | 5 | 5X4.50 / 5X120 | +35 | 6.25 | 73.1 | 1800 | 0.4 |
| 507S-2205518 | 507S | Gloss Silver | 5 | 5X115 / 5X120 | +18 | 6.25 | 73.1 | 2200 | 4.25 |
| 507S-2206824 | 507S | Gloss Silver | 6 | 6X135 / 6X5.50 | +24 | 6.44 | 108 | 2200 | 4.25 |
| 507S-2295940 | 507S | Gloss Silver | 5 | 5X112 / 5X4.50 | +40 | 6.5 | 73.1 | 2200 | 3.91 |
| 507S-2295740 | 507S | Gloss Silver | 5 | 5X4.50 / 5X120 | +40 | 6.5 | 73.1 | 2200 | 3.91 |
| 507S-2295515 | 507S | Gloss Silver | 5 | 5X115 / 5X120 | +15 | 5.5 | 73.1 | 2200 | 3.91 |
| 507S-2406824 | 507S | Gloss Silver | 6 | 6X135 / 6X5.50 | +24 | 6.44 | 108 | 2200 | 5.08 |
| 507S-2606824 | 507S | Gloss Silver | 6 | 6X135 / 6X5.50 | +24 | 6.44 | 108 | 2200 | 5.88 |

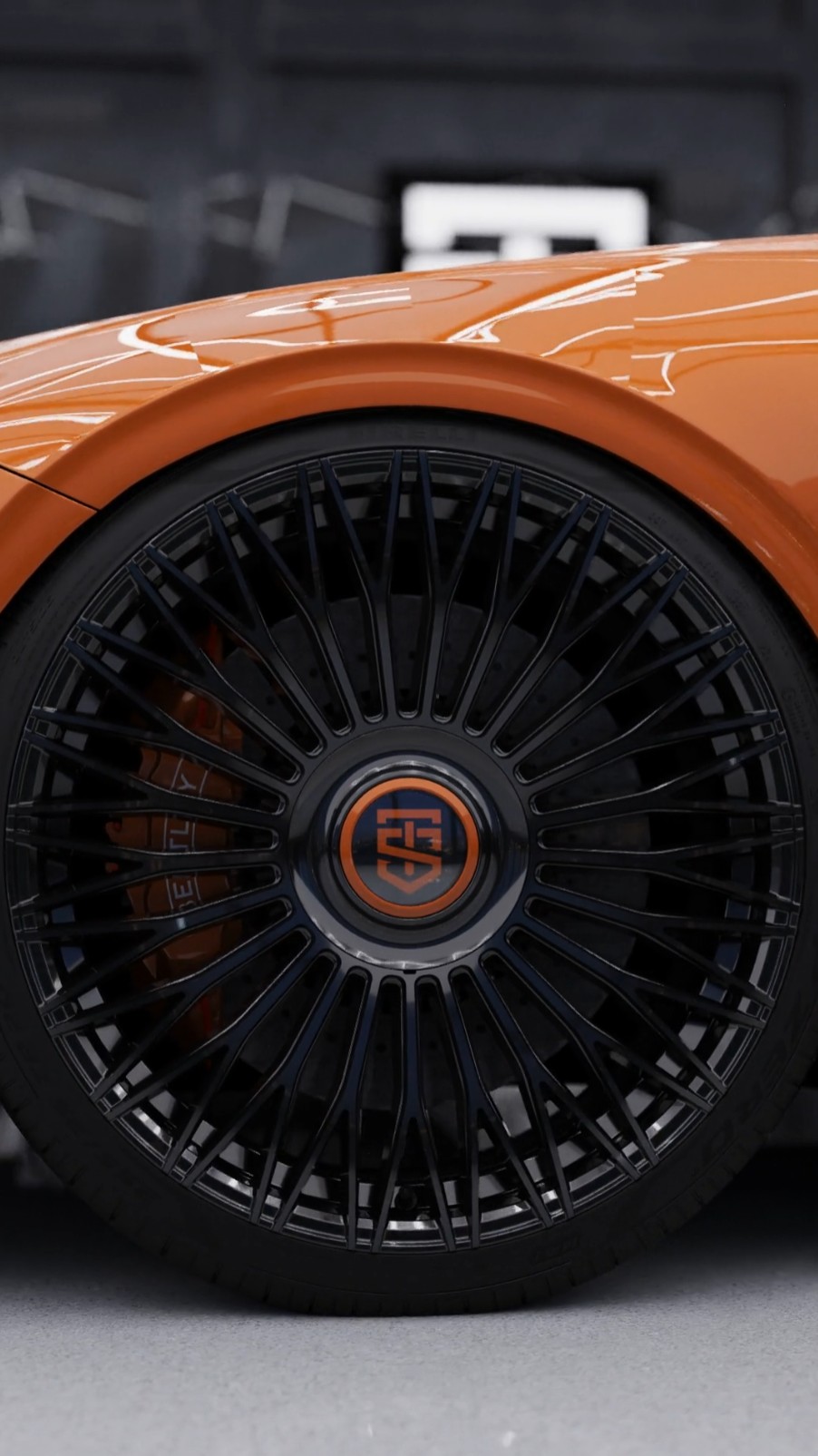

EXCLUSIVE TO THE TIS MOTORSPORTS 507
FLOATING CENTERCAP
No matter how fast or how slow you roll, the TIS Motorsports crest logo will stay right side up, Inspired by ultra-luxury automotive brands, now included as standard.
